20584 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

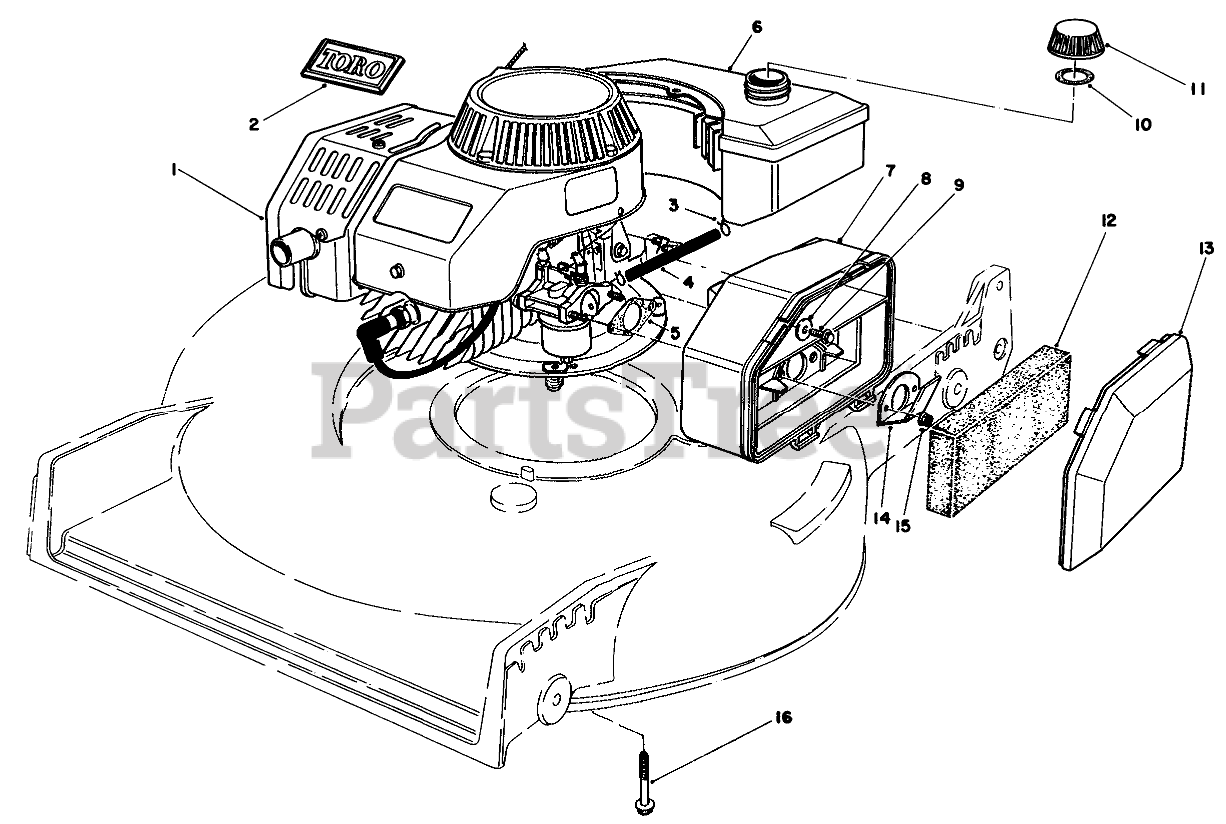

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 59250

Engine
(Superseded to 98-2049)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

3

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

4

Toro 81-2310

FUEL LINE

$3.49

$

Usually ships in 3-6 days

0

5

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

6

Toro 81-0040

Gas Tank Assembly
(Superseded to 99-5263)

$

$

Not available

7

Toro 81-0110

AIR CLEANER

$

$

Not available

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

10

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

11

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #10)

$42.99

$

Usually ships in 3-6 days

0

12

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

13

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

14

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

15

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 18

0
