20584 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL NO. 47PG6)(USED ON UNITS WITH SERIAL NO. 7002012 & UP) Parts Diagram

Walk-Behind Mower

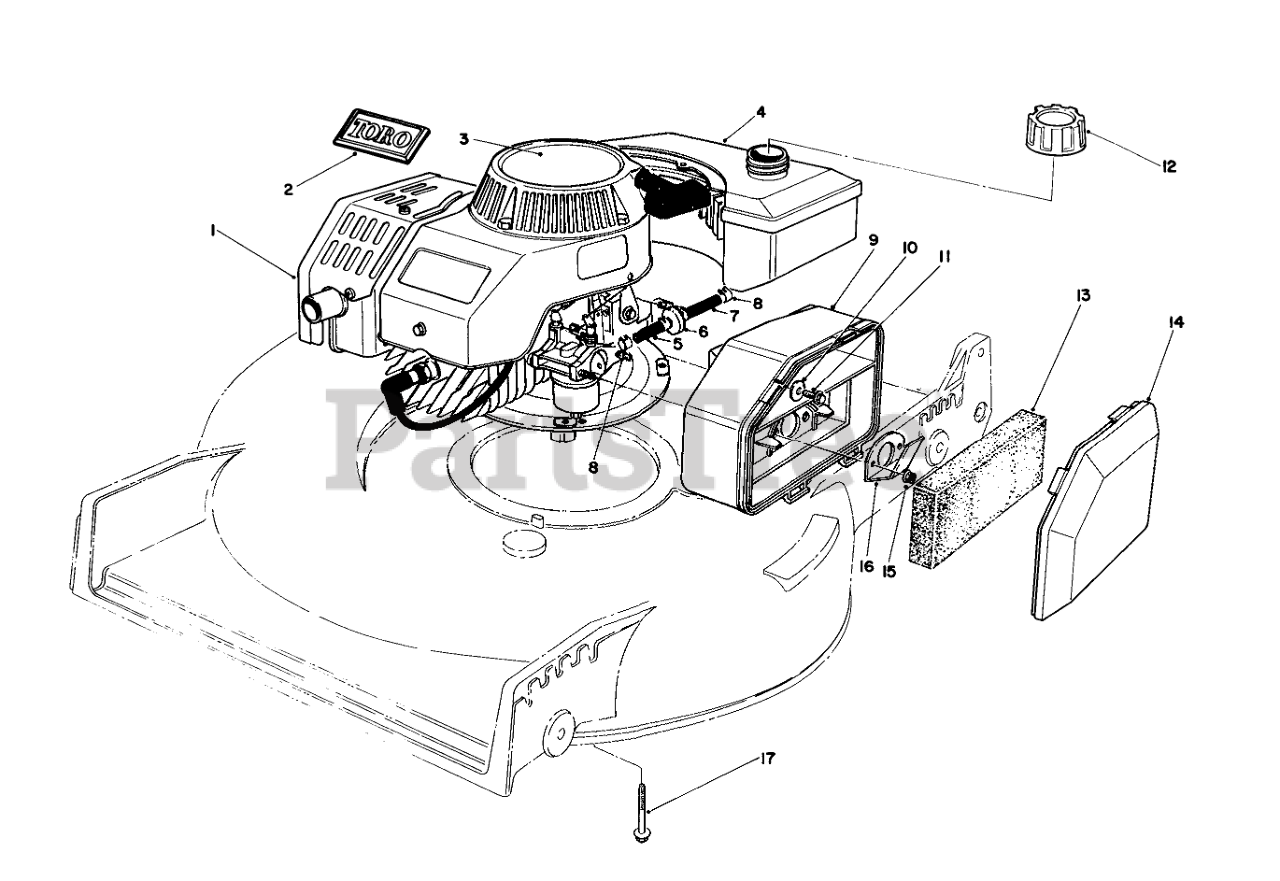

ENGINE ASSEMBLY (MODEL NO. 47PG6)(USED ON UNITS WITH SERIAL NO. 7002012 & UP) Parts Diagram

  • Title

1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

3

Toro 57-9870

DECAL

$

$

Not available

4

Toro 81-0042

Gas Tank Assembly
(Superseded to 99-5263)

$

$

Not available

5

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

6

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

7

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

9

Toro 81-0110

AIR CLEANER

$

$

Not available

10

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

12

Toro 55-3575

GAS CAP ASM

$17.99

$

In Stock, only 3 left!

0

13

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

14

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

15

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

17

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 16

0
