20586 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

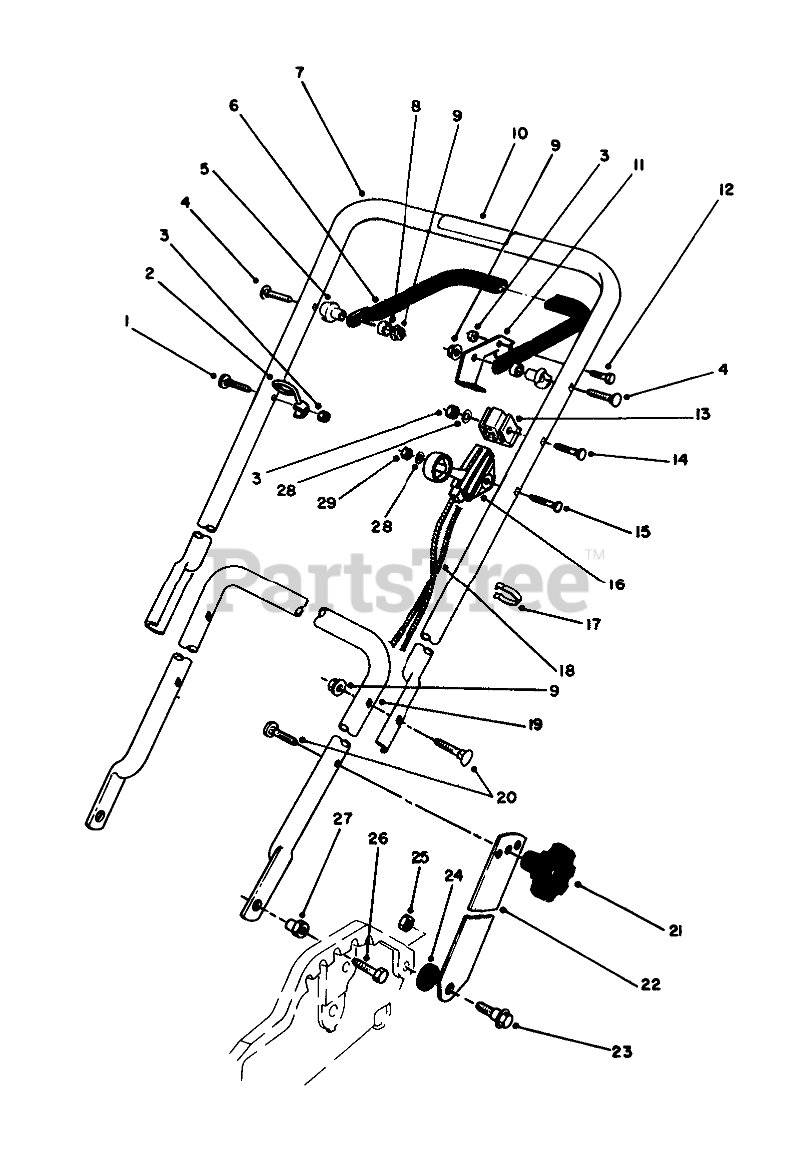

HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0

2

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 15

0

3

Toro 329642

Nut

$

$

Currently unavailable

4

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

5

Toro 49-1630

SPACER-SUPPORT

$8.99

$

In Stock, only 2 left!

0

6

Toro 49-4221

Bar-Control

$

$

Not available

7

Toro 13-2159

Handle-Upper (Incl. Ref #10)

$

$

Not available

8

Toro 256-276

SPACER-NYLON

$2.99

$

In Stock, only 2 left!

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

10

Toro 63-8540

DECAL - HANDLE

$

$

Not available

11

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

13

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 2 left!

0

14

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

15

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

16

Toro 52-0068

THROTTLE CONTROL

$148.99

$

Usually ships in 3-6 days

0

17

Toro 218-465

BOWDEN CLIP

$

$

Not available

18

Toro 46-8012

BRAKE CABLE

$68.99

$

Usually ships in 3-6 days

0

19

Toro 50-9920

LOWER HANDLE

$

$

Not available

20

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

21

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

22

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

23

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 4 left!

0

24

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
