20586 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) Engine Assembly Parts Diagram
Walk-Behind Mower

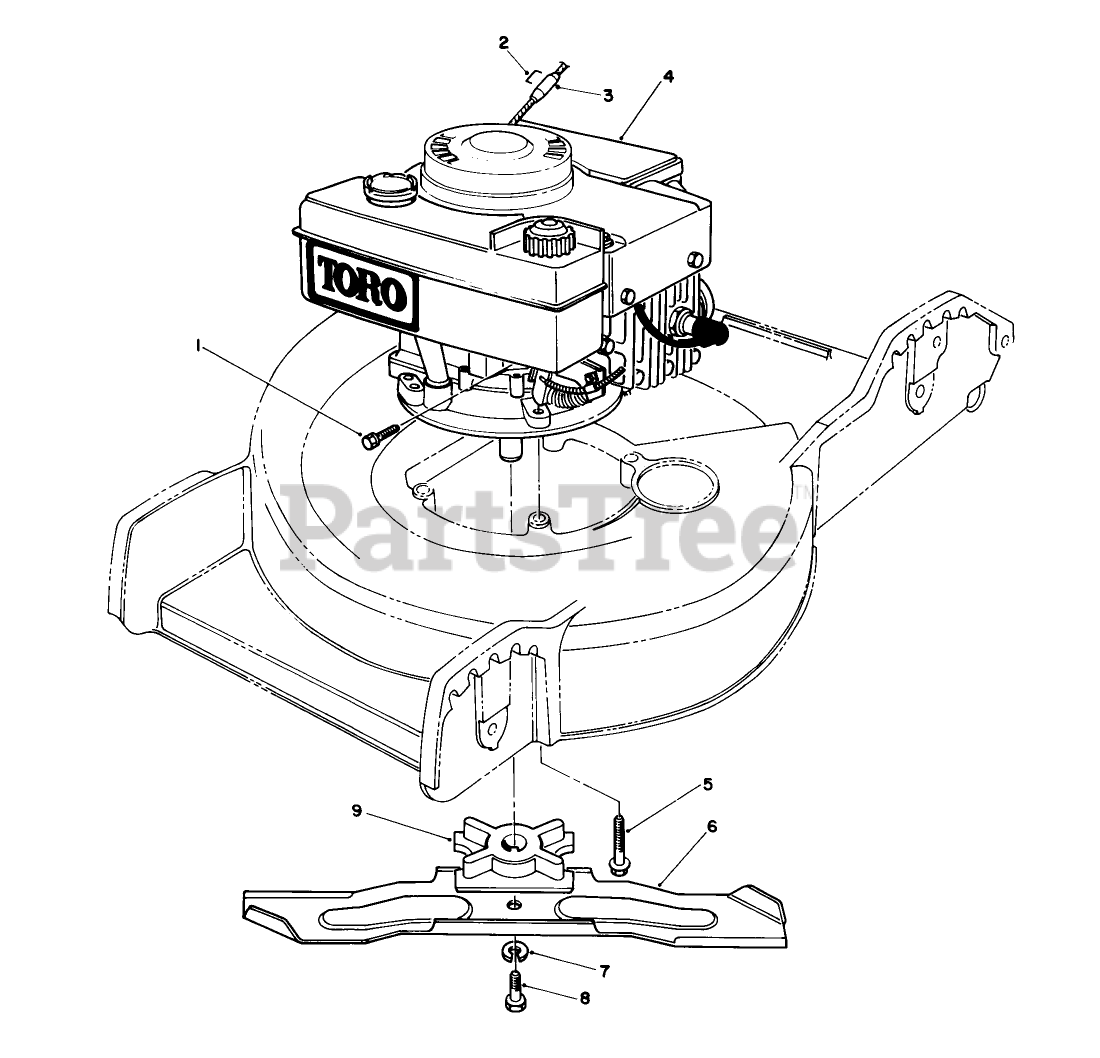

Engine Assembly Parts Diagram
Toro 2210-250
DISCONTINUED
$
$
Not available
2
Staple
Note: Obtain Locally
$
$
Not available
3
Stop-Rope
$
$
Not available
4
Engine
$
$
Not available
Toro 11-0581
3/8-16 X 2 CAPSCREW
$
$
Not available
$45.99
$
Usually ships in 3-6 days
Toro 3253-22
WASHER-LOCK
$2.99
$
In Stock, only 2 left!
Toro 26-0671
SCREW-HH
$9.49
$
In Stock, Qty 12
Toro 49-7900
BLADE RETAINER
$80.99
$
In Stock, only 2 left!
