20586 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) Engine Tecumseh Model Tvs90-43228d (used On Units With Serial No. 6000101-6000958) Parts Diagram

Walk-Behind Mower

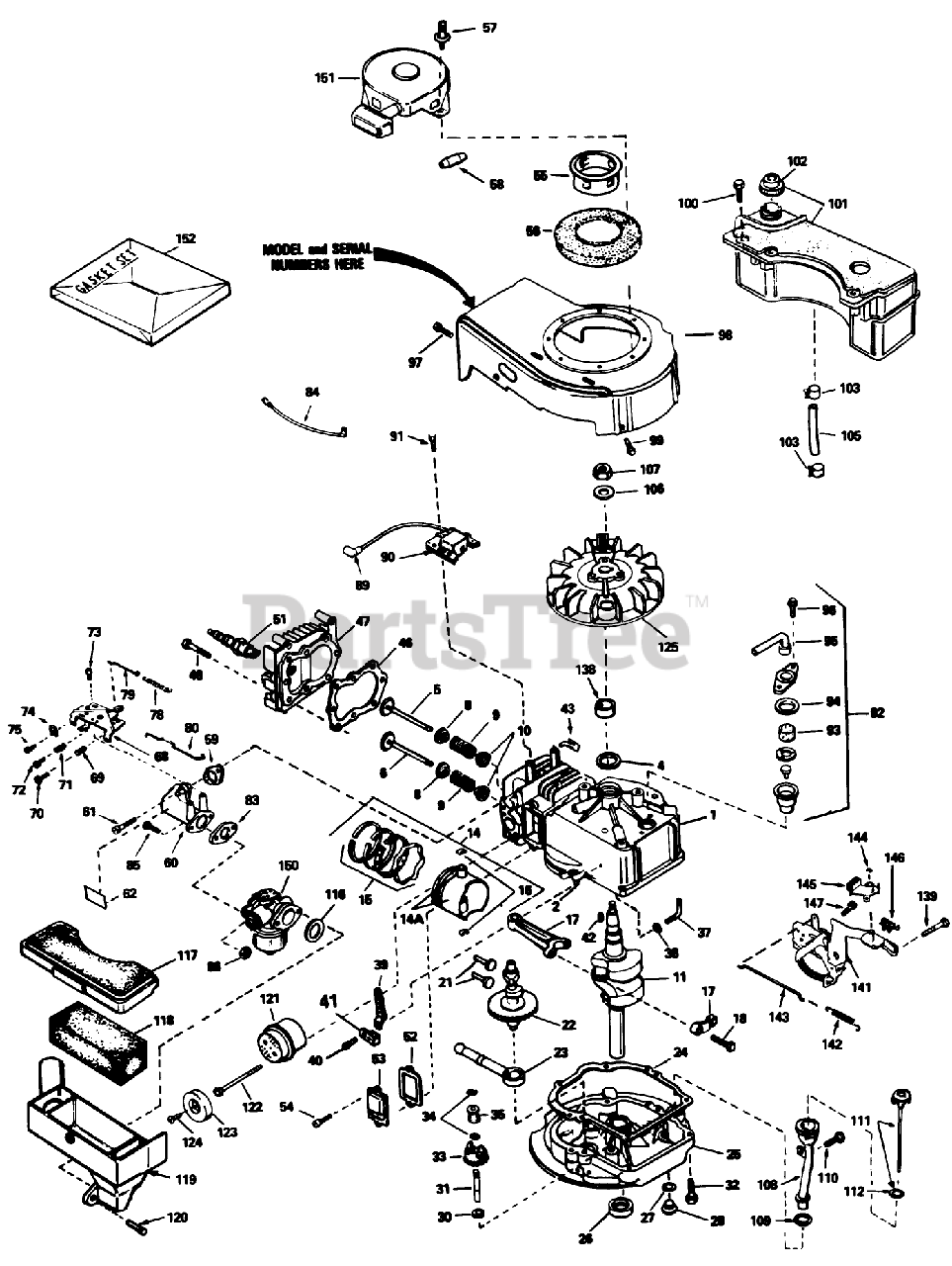

Engine Tecumseh Model Tvs90-43228d (used On Units With Serial No. 6000101-6000958) Parts Diagram

  • Title

1

Toro 34975

Cylinder Assembly (Incl. Ref. #2, 4, 94 96)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 29314B

Valve, Intake (Std.) (Incl. Ref. #40)

$

$

Currently unavailable

5

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

6

Toro 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Currently unavailable

6

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

8

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

9

Toro 31672

Spring-Valve

$

$

Currently unavailable

10

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 34440

Crankshaft

$

$

Currently unavailable

14

Toro 34514

Piston-Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34515

Piston-Pin Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34516

Piston-Pin Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14A

Toro 32538B

Piston Pin Assy. (Std)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 32548B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 32549B

Piston Pin Assy. (.020 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

21

Toro 27241

Lifter-Valve

$

$

Currently unavailable

22

Toro 33553

Camshaft(Mech.Comp. Release)

$

$

Currently unavailable

23

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

24

Toro 26750A

Gasket, Mounting

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

25

Toro 34831

Flange Assy.-Mounting (Incl. Ref. #26, 27, 28 31)

$

$

Currently unavailable

26

Toro 26208

Seal Oil

$

$

Currently unavailable

27

Toro 28833

Gasket-Oil Drain

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

28

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

30

Toro 30590A

Washer-Flat

$

$

Currently unavailable

31

Toro 30574

Shaft-Governor

$

$

Currently unavailable

32

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

33

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

34

Toro 29193

Ring-Retaining

$

$

Currently unavailable

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

37

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

38

Toro 28277

Washer-Flat

$

$

Currently unavailable

39

Toro 31383A

Governor Lever

$

$

Currently unavailable

40

Toro 650548

Screw

$

$

Currently unavailable

41

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

42

Toro 611004

Key-Flywheel

$

$

Not available

43

Toro 29443

Clip-Wire

$

$

Currently unavailable

46

Toro 29953B

Gasket-Cylinder Head

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

47

Toro 34335

2025A67 ADD.ASSEMBL

$3.23

$

Usually ships in 3-6 days

0

48

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

51

Toro 35078

Plug, Spark (Autolite 458, Champion J-19LM or equiv.)

$

$

Currently unavailable

52

Toro 27234

Gasket-Breather

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

53

Toro 32755

Cover-Valve
(Superseded to 740513)

$

$

Not available

54

Toro 650128

Screw

$

$

Currently unavailable

55

Toro 34449

Cup-Starter

$

$

Currently unavailable

56

Toro 35009

Screen-Starter

$

$

Currently unavailable

57

Pop Rivet (Can be purchased locally)

$

$

Not available

58

Toro 34985

Retainer-Starter Rope

$

$

Not available

59

Toro 34690

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

60

Toro 31384A

Pipe-Intake (Incl. Ref. #59)

$

$

Currently unavailable

61

Toro 650451

Screw (1/4-20 x 1)

$

$

Currently unavailable

62

Toro 34144

Decal-Primer

$

$

Currently unavailable

68

Toro 33131A

Control Assy.-Remote Speed (Incl. Ref. #69 thru 72 76)

$

$

Currently unavailable

69

Toro 33802

61709/GIL1515A/95-5

$3.23

$

Usually ships in 3-6 days

0

70

Toro 650777

Screw

$

$

Currently unavailable

71

Toro 31342

Spring-Compression

$

$

Currently unavailable

72

Toro 650549

Screw

$

$

Currently unavailable

73

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

74

Toro 27793

Conduit

$

$

Currently unavailable

75

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

78

Toro 31361

Spring Governor

$

$

Currently unavailable

79

Toro 34337

2035A67 ADD.ASSEMBL

$3.23

$

Usually ships in 3-6 days

0

80

Toro 34336

Link-Throttle

$

$

Currently unavailable

83

Toro 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

84

Toro 34961

Ground Wire

$

$

Currently unavailable

85

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

86

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

89

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

90

Toro 34443A

Solid State

$

$

Currently unavailable

91

Toro 650814

Screw

$

$

Currently unavailable

92

Toro 34214A

Breather Assy. (Incl. Ref. #46 thru 51)

$

$

Currently unavailable

93

Toro 33734

Element-Breather

$

$

Currently unavailable

94

Toro 33735

Gasket-Breather

$

$

Currently unavailable

95

Toro 33886

Tube, Breaker

$

$

Currently unavailable

96

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

97

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

98

Toro 34936

Housing-Blower

$

$

Currently unavailable

99

Toro 650831

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

100

Toro 28763

Screw (10-32 x 35/64)

$

$

Currently unavailable

101

Toro 34476

Tank Assembly-Fuel (Incl. Ref. #102)

$

$

Currently unavailable

102

Toro 33032

Cap-Fuel
(Superseded to 702818)

$

$

Not available

103

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

105

Toro 34682

Line-Fuel

$

$

Currently unavailable

106

Toro 650815

Washer-Belleville

$

$

Currently unavailable

107

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

108

Toro 34264

Tube-Oil Fill

$

$

Currently unavailable

109

Toro 34265

Gasket

$

$

Currently unavailable

110

Toro 650562

Screw (10-32 x 1/2)

$

$

Currently unavailable

111

Toro 34281

Dipstick-Oil (Incl. Ref. #112)

$

$

Currently unavailable

112

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

116

Toro 34338

Gasket-Cleaner, Air

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

117

Toro 34341

Cover Air Cleaner

$

$

Currently unavailable

118

Toro 34340

Filter-Air Cleaner

$

$

Currently unavailable

119

Toro 34858

Body Air cleaner

$

$

Currently unavailable

120

Toro 650806

Screw

$

$

Currently unavailable

121

Toro 27181B

Muffler (Incl. Ref. #122)

$

$

Currently unavailable

122

Toro 650795

Screw

$

$

Currently unavailable

123

Toro 32431

Cover-Muffler

$

$

Currently unavailable

124

Toro 650643

Screw

$

$

Currently unavailable

125

Toro 611046

Flywheel

$

$

Currently unavailable

138

Toro 34080

Spacer

$

$

Currently unavailable

139

Toro 650839

Screw (1/4-20 x 3/8)

$

$

Currently unavailable

141

Toro 35015

Bracket Assy.

$

$

Currently unavailable

142

Toro 34965

Spring-Extension

$

$

Currently unavailable

143

Toro 34966

Link-Control

$

$

Currently unavailable

144

Toro 32309

Ring-Retaining

$

$

Currently unavailable

145

Toro 34968

Lever-Brake

$

$

Currently unavailable

146

Toro 610973

Terminal

$

$

Currently unavailable

147

Toro 650837

Screw-Hex. Hd.

$

$

Currently unavailable

150

Toro 632098

Carburetor (Incl. Ref. #83)

$

$

Currently unavailable

151

Toro 590420A

tarter-Rewind

$

$

Currently unavailable

152

Toro 33238C

Gasket Set

$

$

Currently unavailable
