20586 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) Handle Assembly Parts Diagram

Walk-Behind Mower

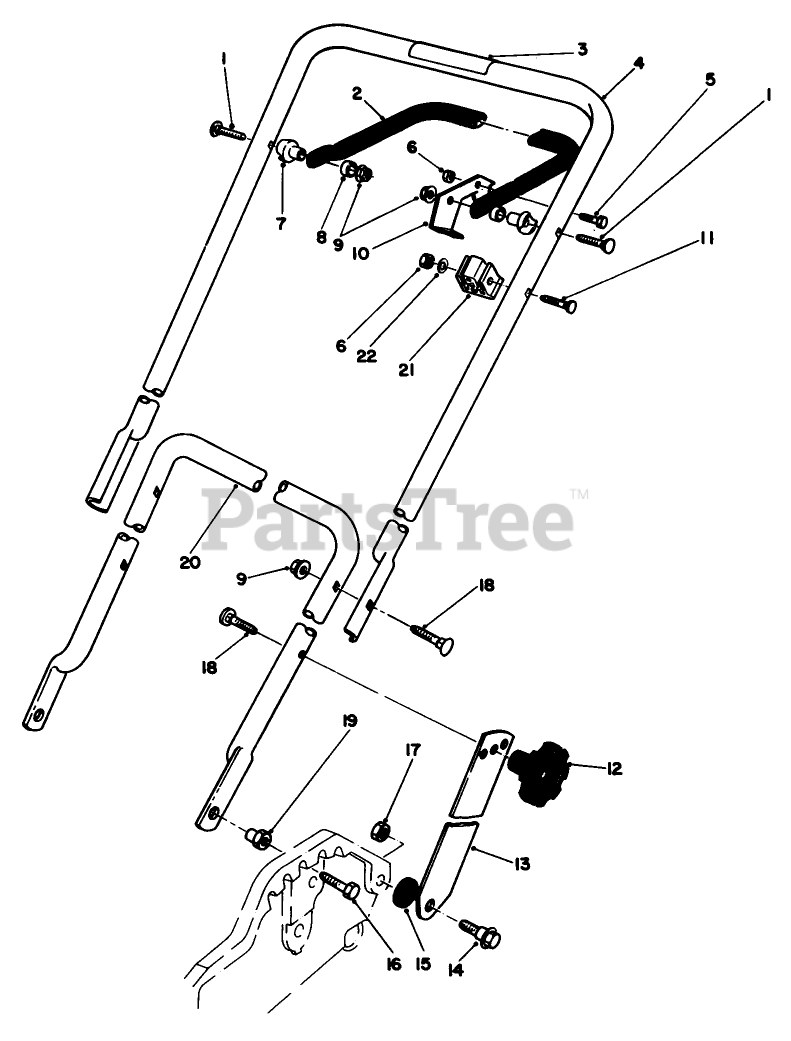

Handle Assembly Parts Diagram

  • Title

1

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

2

Toro 49-4221

DISCONTINUED

$

$

Not available

3

Toro 52-7510

DISCONTINUED

$

$

Not available

4

Toro 49-4232

DISCONTINUED
(Superseded to 13-2159)

$

$

Not available

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 49-1630

SPACER-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

8

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

10

Toro 46-7950

See Supercession: 66-5350
(Superseded to 66-5350)

$16.99

$

Usually ships in 3-6 days

0

11

Toro 46-6434

HANDLE SCREW

$

$

Not available

12

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

13

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

14

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 7

0

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 17-9424

DISCONTINUED
(Superseded to 6-6330)

$

$

Not available

19

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

20

Toro 50-9920

DISCONTINUED

$

$

Not available

21

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0
