20587 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE MODEL TVS100-44021B Parts Diagram

Walk-Behind Mower

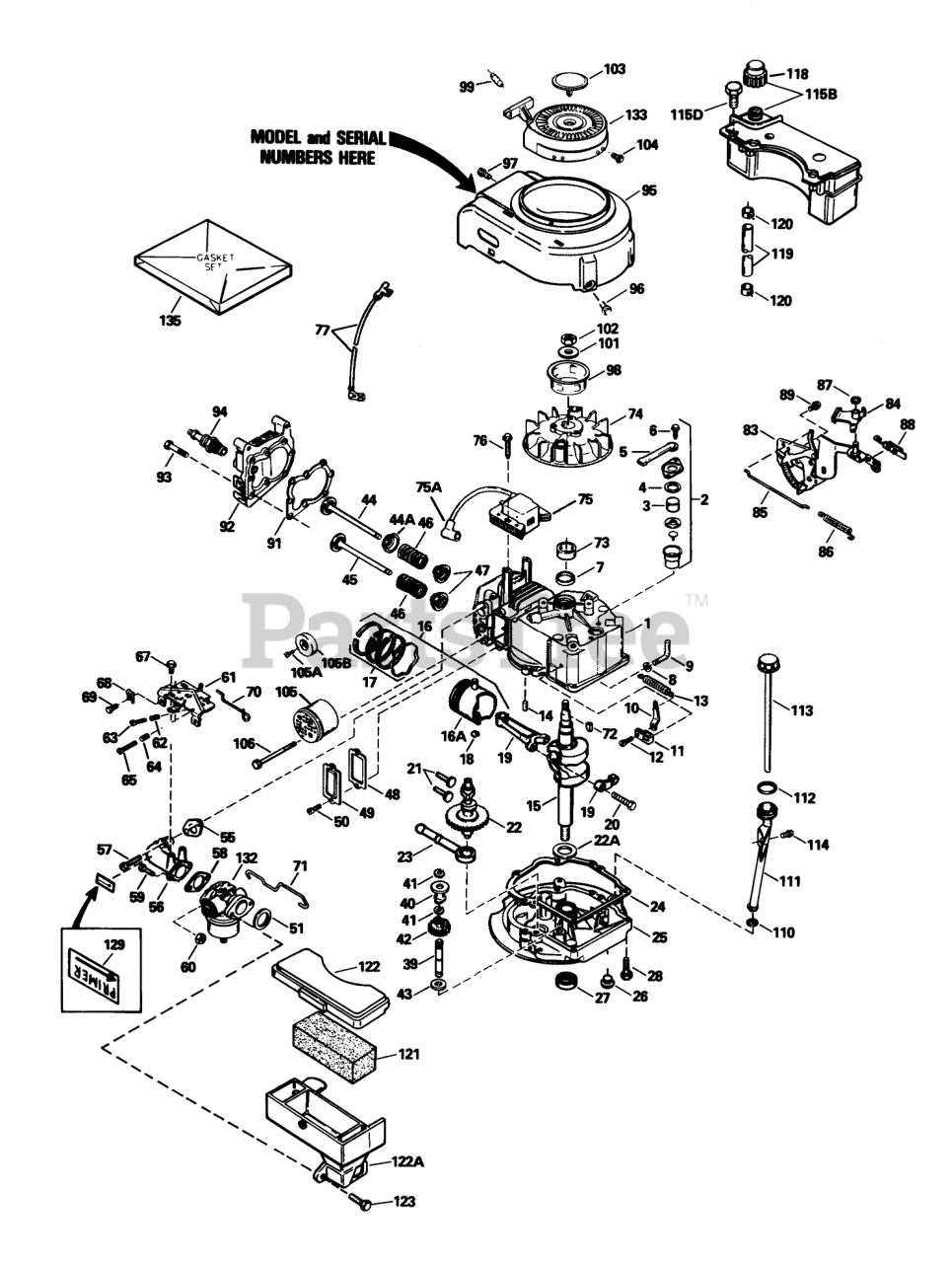

ENGINE MODEL TVS100-44021B Parts Diagram

  • Title
1

Tecumseh Part# 35010

Cylinder Assy. (Incl. Ref. #7 & 14)
(Superseded to 36479A)
Usually ships in 8 to 14 days

$

$124.80

0

2

Tecumseh Part# 34214A

Breather Assy. (Incl. Ref. #3, 4, 5 & 6)
(Superseded to 34214B)
Usually ships in 1 day

$

$15.56

0

3

Tecumseh Part# 33734

Element-Breather
Usually ships in 1 day

$

$1.70

0

4

Tecumseh Part# 33735

Gasket-Breather
Usually ships in 1 day

$

$1.70

0

5

Tecumseh Part# 33886

Tube, Breaker
Usually ships in 1 day

$

$7.02

0

6

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

Usually ships in 1 day

$

$6.72

0

8

Tecumseh Part# 28277

Washer-Flat
Usually ships in 1 day

$

$1.76

0

9

Tecumseh Part# 30589

Rod, Governor (Incl. Ref. #8)
Usually ships in 1 day

$

$5.44

0

10

Tecumseh Part# 31383A

Governor Lever
Usually ships in 1 day

$

$1.72

0

11

Tecumseh Part# 31335

Clamp-Lever, Governor
Usually ships in 1 day

$

$1.76

0

12

Tecumseh Part# 650548

Screw
(Superseded to 651018)
Usually ships in 1 day

$

$1.66

0

13

Tecumseh Part# 31361

Spring Governor
Usually ships in 1 day

$

$1.66

0

14
Usually ships in 1 day

$

$1.76

0

15
Usually ships same day

Currently unavailable

$

$

16

Tecumseh Part# 35544

Piston, Pin & Ring Assy. (STD.)(Incl. Ref. #16A, 17 & 18)
(Superseded to 35544A)
Usually ships in 8 to 14 days

$

$60.34

0

16

Tecumseh Part# 35545

Piston, Pin & Ring Assy. (.010 oversize)(Incl. Ref. #16A, 17 & 18)
(Superseded to 35545A)
Usually ships in 8 to 14 days

$

$76.46

0

16

Tecumseh Part# 35546

Piston, Pin & Ring Assy. (.020 oversize)(Incl. Ref. #16A, 17 & 18)
Usually ships in 8 to 14 days

$

$73.44

0

16A

Tecumseh Part# 35541

Piston & Pin Assy. (Std.)(Incl. Ref. #18)
Usually ships in 8 to 14 days

$

$45.24

0

16A

Tecumseh Part# 35542

Piston & Pin Assy. (.010 oversize)(Incl. Ref. #18)
Usually ships in 1 day

$

$43.56

0

16A

Tecumseh Part# 35543

Piston & Pin Assy. (.020 oversize)(Incl. Ref. #18)
Usually ships in 8 to 14 days

$

$43.56

0

17

Tecumseh Part# 35547

Ring Set-Piston (Std.)
(Superseded to 35547A)
Usually ships in 8 to 14 days

$

$38.18

0

17

Tecumseh Part# 35548

Ring Set, Piston(.0100versize)
(Superseded to 35548A)
Usually ships in 8 to 14 days

$

$26.42

0

17

Tecumseh Part# 35549

Ring Set (.020" OS)
Usually ships same day

Currently unavailable

$

$

18

Tecumseh Part# 20381

Ring-Retaining, Piston Pin
Usually ships in 1 day

$

$1.76

0

19

Tecumseh Part# 30963B

Rod Assy., Connecting (Incl. Ref. #20)
Usually ships in 1 day

$

$29.26

0

20

Tecumseh Part# 32610A

Bolt-Rod, Connecting
Usually ships in 1 day

$

$1.76

0

21

Tecumseh Part# 27241

Lifter-Valve
Usually ships in 1 day

$

$5.44

0

22

Tecumseh Part# 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)
Usually ships in 8 to 14 days

$

$72.26

0

22A

Tecumseh Part# 32323

Washer-Thrust
Usually ships in 8 to 14 days

$

$1.72

0

23

Tecumseh Part# 29914

Oil Pump ASM
Usually ships in 1 day

$

$9.16

0

24

Tecumseh Part# 35261

Gasket
(Superseded to 37609)
Usually ships in 1 day

$

$2.81

0

25

Tecumseh Part# 34311B

Flange, Mounting (Incl. Ref. #26, 27 & 39)
(Superseded to 37608A)
Usually ships in 1 day

$

$77.36

0

26

Tecumseh Part# 27244

Plug Oil Drain
(Superseded to 36083)
Usually ships in 1 day

$

$0.86

0

27
Usually ships in 1 day

$

$3.88

0

28

Tecumseh Part# 650488

Screw (1/4-20 x 1-1/4)
Usually ships in 1 day

$

$1.76

0

39

Tecumseh Part# 30574

Shaft-Governor
(Superseded to 30574A)
Usually ships in 1 day

$

$7.00

0

40

Tecumseh Part# 30588A

Spool-Governor
Usually ships in 1 day

$

$1.76

0

41

Tecumseh Part# 29193

Ring-Retaining
Usually ships in 1 day

$

$1.76

0

42

Tecumseh Part# 30591

Gear Assy., Governor (Incl. Ref. #43)
Usually ships in 1 day

$

$13.90

0

43

Tecumseh Part# 35479

Washer
(Superseded to 651080)
Usually ships in 1 day

$

$4.04

0

44

Tecumseh Part# 29314B

Valve, Intake (Std.)(Incl. Ref. #47)
(Superseded to 29314C)
Usually ships in 1 day

$

$5.68

0

44A

Tecumseh Part# 35390

Seal Assy., Intake
Usually ships same day

Not available

$

$

44

Tecumseh Part# 29315C

Valve, Intake (1/32" oversize)(Incl. Ref. #47)
Usually ships in 8 to 14 days

$

$42.92

0

45

Tecumseh Part# 29313C

Valve, Exhaust (Std.)(Incl. Ref. #47)
Usually ships same day

Not available

$

$

45

Tecumseh Part# 29315C

Valve, Exhaust (1/32" oversize) (Incl. Ref. #47)
Usually ships in 8 to 14 days

$

$42.92

0

46

Tecumseh Part# 31672

Spring-Valve
Usually ships in 1 day

$

$1.76

0

47

Tecumseh Part# 31673

Cap-Valve, Spring
Usually ships in 1 day

$

$1.72

0

48

Tecumseh Part# 27234A

Gasket-Cover, Valve
Usually ships in 1 day

$

$2.46

0

49

Tecumseh Part# 32755

Cover-Valve
Usually ships in 8 to 14 days

$

$5.30

0

Usually ships in 1 day

$

$5.04

0

51

Tecumseh Part# 34338

Gasket-Cleaner, Air
Usually ships in 1 day

$

$1.72

0

55

Tecumseh Part# 34690A

Gasket-Intake Pipe
Usually ships in 1 day

$

$4.20

0

56

Tecumseh Part# 31384A

Pipe, Intake (Incl. Ref. #55)
Usually ships in 1 day

$

$21.02

0

57

Tecumseh Part# 650451

Screw (1/4-20 x 1)
Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$2.78

0

59

Tecumseh Part# 6201

Screw (1/4-28 x 7/8)
Usually ships in 1 day

$

$1.76

0

60

Tecumseh Part# 29752

Nut and Lock Washer (1/4-28)
Usually ships in 1 day

$

$1.76

0

61

Tecumseh Part# 33131A

Bracket Assy., Control (Incl. Ref. #62 thru 65)
Usually ships in 8 to 14 days

$

$19.40

0

62

Tecumseh Part# 33802

61709/GIL1515A/95-5
(Superseded to 36482)
Usually ships in 1 day

$

$1.70

0

63

Tecumseh Part# 650777

Screw
(Superseded to 651019)
Usually ships in 1 day

$

$1.70

0

64

Tecumseh Part# 31342

Spring-Compression
Usually ships in 1 day

$

$1.66

0

65

Tecumseh Part# 650549

Screw
(Superseded to 651029)
Usually ships in 1 day

$

$1.70

0

67

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

Usually ships in 1 day

$

$1.76

0

69

Tecumseh Part# 28942

Screw (10-32 x 3/8)
Usually ships in 1 day

$

$1.24

0

70

Tecumseh Part# 34337

2035A67 ADD.ASSEMBL
Usually ships in 1 day

$

$1.76

0

71

Tecumseh Part# 34336

Link-Throttle
(Superseded to 34336A)
Usually ships in 1 day

$

$1.72

0

72

Tecumseh Part# 611004

Key-Flywheel
Usually ships in 1 day

$

$1.54

0

Usually ships in 1 day

$

$1.76

0

74
Usually ships in 8 to 14 days

$

$72.68

0

75

Tecumseh Part# 34443A

Solid State
(Superseded to 34443D)
Usually ships in 1 day

$

$44.94

0

75A

Tecumseh Part# 610118

Cover-Spark Plug
Usually ships in 1 day

$

$3.74

0

76

Tecumseh Part# 650814

Screw
(Superseded to 651007)
Usually ships in 1 day

$

$1.64

0

77

Tecumseh Part# 34961

Ground Wire
(Superseded to 37047)
Usually ships in 1 day

$

$1.76

0

83

Tecumseh Part# 35015A

Bracket-S.E. Brake
(Superseded to 35015B)
Usually ships in 8 to 14 days

$

$31.62

0

84

Tecumseh Part# 34968

Lever-Brake
(Superseded to 35831)
Usually ships in 8 to 14 days

$

$12.26

0

85

Tecumseh Part# 34966

Link-Control
Usually ships in 1 day

$

$1.70

0

86

Tecumseh Part# 34965

Spring-Extension
Usually ships in 8 to 14 days

$

$3.66

0

87

Tecumseh Part# 32309

Ring-Retaining
Usually ships in 1 day

$

$1.72

0

88
Usually ships in 8 to 14 days

$

$3.64

0

89

Tecumseh Part# 650839

Screw (1/4-20 x 3/8)
Usually ships in 1 day

$

$1.68

0

91

Tecumseh Part# 33015A

Gasket-Cylinder Head
Usually ships in 1 day

$

$11.04

0

92

Tecumseh Part# 34342

Head-Cylinder
(Superseded to 36476)
Usually ships in 8 to 14 days

$

$32.28

0

93

Tecumseh Part# 6021A

Screw (5/16-18x1-1/2)
Usually ships in 1 day

$

$1.76

0

94

Tecumseh Part# 35395

Spark Plug-Resistor (R J19 L M)
Usually ships in 1 day

$

$3.02

0

95

Tecumseh Part# 35484

Housing-Blower
Usually ships same day

Currently unavailable

$

$

96

Tecumseh Part# 650831

Screw (1/4-20 x 1/2)
Usually ships in 1 day

$

$1.68

0

97

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

98

Tecumseh Part# 35000

Hub-Starter
(Superseded to 35000A)
Usually ships in 1 day

$

$9.16

0

99

Tecumseh Part# 34985

Retainer-Starter Rope
(Superseded to 36412)
Usually ships in 8 to 14 days

$

$1.24

0

101

Tecumseh Part# 650815

Washer-Belleville
Usually ships in 1 day

$

$1.76

0

102

Tecumseh Part# 650816

Nut-Flywheel
Usually ships in 1 day

$

$1.76

0

103

Tecumseh Part# 35392

Plug Starter
Usually ships in 1 day

$

$1.70

0

104

Tecumseh Part# 650884

Screw, Hex Hd.
(Superseded to 650926)
Usually ships in 1 day

$

$1.24

0

105

Tecumseh Part# 35708

Muffler Assy. (Incl. Ref. #106)
Usually ships in 1 day

$

$7.30

0

105A

Tecumseh Part# 32431

Cover-Muffler
Usually ships in 8 to 14 days

$

$5.30

0

105B

Tecumseh Part# 650760

Screw (8-32 x 3/8)
Usually ships in 1 day

$

$1.64

0

Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$2.10

0

111

Tecumseh Part# 35577

Oil Fill Tube
(Superseded to 35577A)
Usually ships in 1 day

$

$3.66

0

Usually ships in 1 day

$

$1.24

0

113
Usually ships in 1 day

$

$5.44

0

114

Tecumseh Part# 650562

Screw (10-32 x 1/2)
Usually ships in 1 day

$

$1.68

0

115B

Tecumseh Part# 34476

Tank Assy. (Incl. Ref. #118 & 120)
(Superseded to 34476A)
Usually ships in 8 to 14 days

$

$30.60

0

115D

Tecumseh Part# 28763

Screw (10-32 x 35/64)
Usually ships in 1 day

$

$1.62

0

118
Usually ships in 1 day

$

$7.44

0

119
Usually ships in 1 day

$

$7.30

0

120

Tecumseh Part# 26460

Clamp-Line, Fuel
Usually ships in 1 day

$

$1.49

0

121

Tecumseh Part# 34340

Filter-Air Cleaner
Usually ships in 1 day

$

$4.75

0

122

Tecumseh Part# 34341A

Cover-Air Cleaner
(Superseded to 34341B)
Usually ships in 1 day

$

$5.44

0

122A

Tecumseh Part# 34858

Body Air cleaner
Usually ships in 8 to 14 days

$

$9.16

0

Usually ships in 1 day

$

$1.64

0

129

Tecumseh Part# 34144

Decal-Primer
Usually ships in 8 to 14 days

$

$1.40

0

132

Tecumseh Part# 632098

Carburetor (Incl. Ref. #58)
(Superseded to 632795A)
Usually ships in 1 day

$

$109.20

0

133

Tecumseh Part# 590621

Starter-Rewind
(Superseded to 590785)
Usually ships in 1 day

$

$41.86

0

135

Tecumseh Part# 33238D

Gasket Set (Incl. items marked )
(Superseded to 33238E)
Usually ships in 1 day

$

$22.42

0
