20588 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

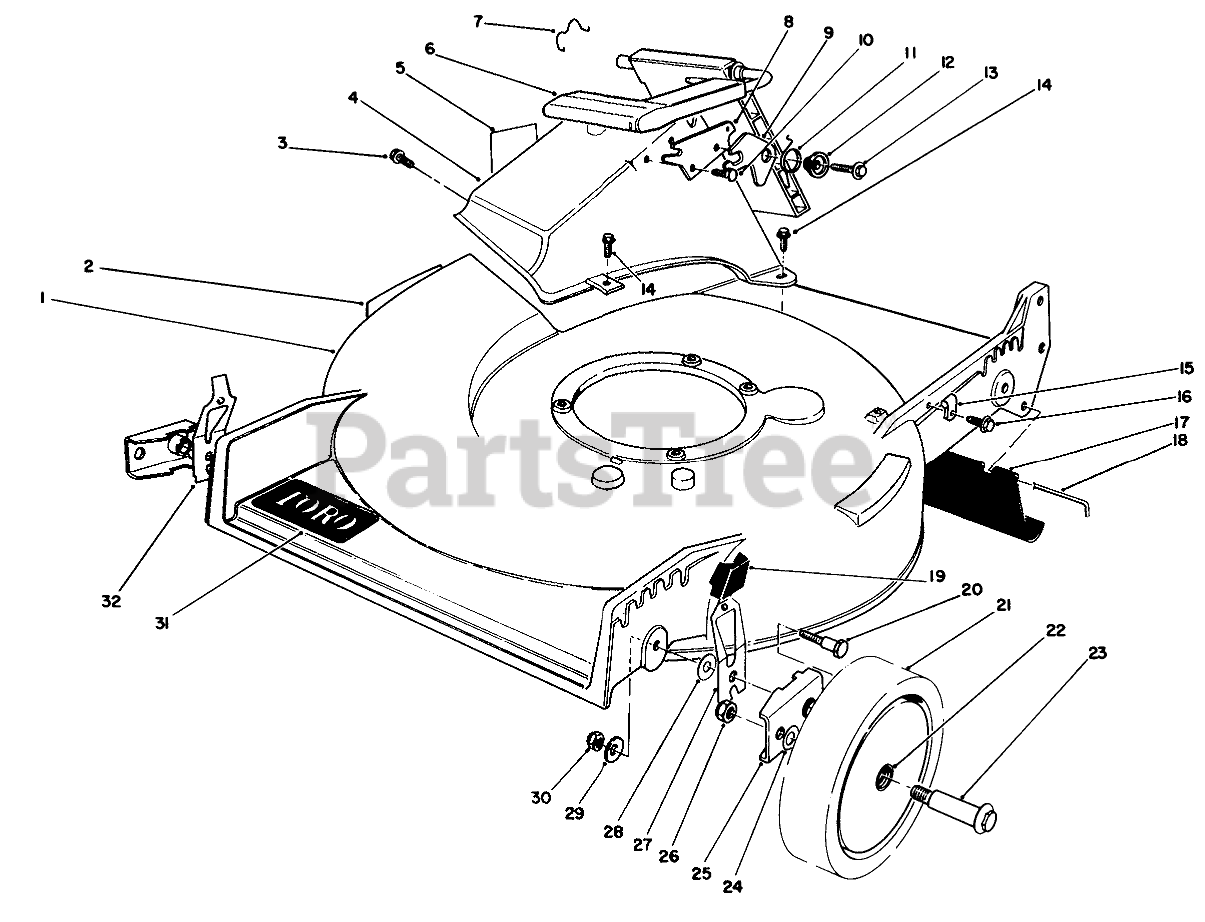

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-2699

Housing (Incl. Ref. #2)
(Superseded to 11-4069)

$1081.99

$

Usually ships in 3-6 days

0

2

Toro 56-6270

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

4

Toro 11-6239

Tunnel-Discharge (Incl. Ref. #5)
(Superseded to 116239-01)

$

$

Not available

5

Toro 62-4060

DECAL - DANGER

$

$

Not available

6

Toro 514201

Discharge Door Assembly

$

$

Currently unavailable

7

Toro 47-5840

DOOR RET SPRING

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 42-4010

SAFETY LATCH

$

$

Not available

10

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

11

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

12

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

15

Toro 2412-83

CLAMP-CABLE

$

$

Not available

16

Toro 12-5450

SCREW

$8.99

$

Usually ships in 3-6 days

0

17

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

18

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

19

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 10

0

20

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 12

0

21

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #22)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

22

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

23

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

24

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

26

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

27

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

28

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

29

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0

32

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available
