20588 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) Housing Assembly Parts Diagram

Walk-Behind Mower

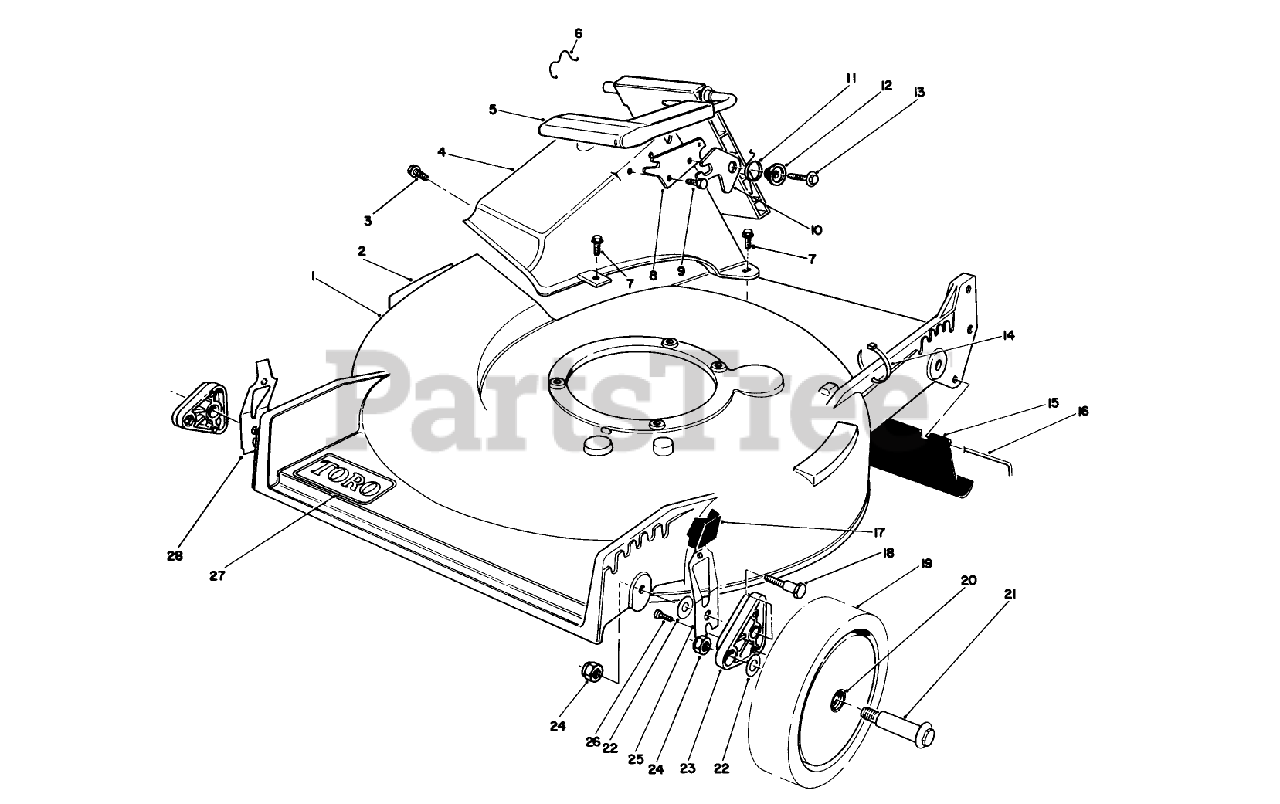

Housing Assembly Parts Diagram

  • Title

1

Toro 134639

Housing (Incl. Ref. #5)

$

$

Currently unavailable

2

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

4

Toro 46-3501

See Supercession: 82-9151
(Superseded to 82-9151)

$

$

Not available

5

Toro 51-0201

See Supercession: 77-0200
(Superseded to 77-0200)

$

$

Not available

6

Toro 47-5840

DOOR RET SPRING

$

$

Not available

7

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

10

Toro 42-4010

SAFETY LATCH

$

$

Not available

11

Toro 33-4860

TORSION SPRING

$80.99

$

Usually ships in 3-6 days

0

12

Toro 43-4840

DOOR SPACER

$

$

Not available

13

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

14

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

15

Toro 44-0580

See Supercession: 112-9989
(Superseded to 112-9989)

$30.99

$

In Stock, only 2 left!

0

16

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 8

0

17

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

18

Toro 66-0561

SCREW-SHOULDER

$6.49

$

In Stock, only 3 left!

0

19

Toro 11-9509

See Supercession: 51-2751
(Superseded to 51-2751)

$33.99

$

In Stock, only 4 left!

0

20

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

21

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 2 left!

0

22

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

23

Toro 66-0580

ARM-PIVOT, FRONT

$19.99

$

In Stock, only 3 left!

0

24

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, Qty 7

0

25

Toro 71-0570

LH SPRING ARM ASSEMBLY

$

$

Not available

26

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

27

Toro 71-0600

DECAL

$16.99

$

Usually ships in 3-6 days

0

28

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$20.99

$

Usually ships in 3-6 days

0
