20605x31A - Scotts 20" Walk-Behind Mower (1997)

20" Walk-Behind Mower

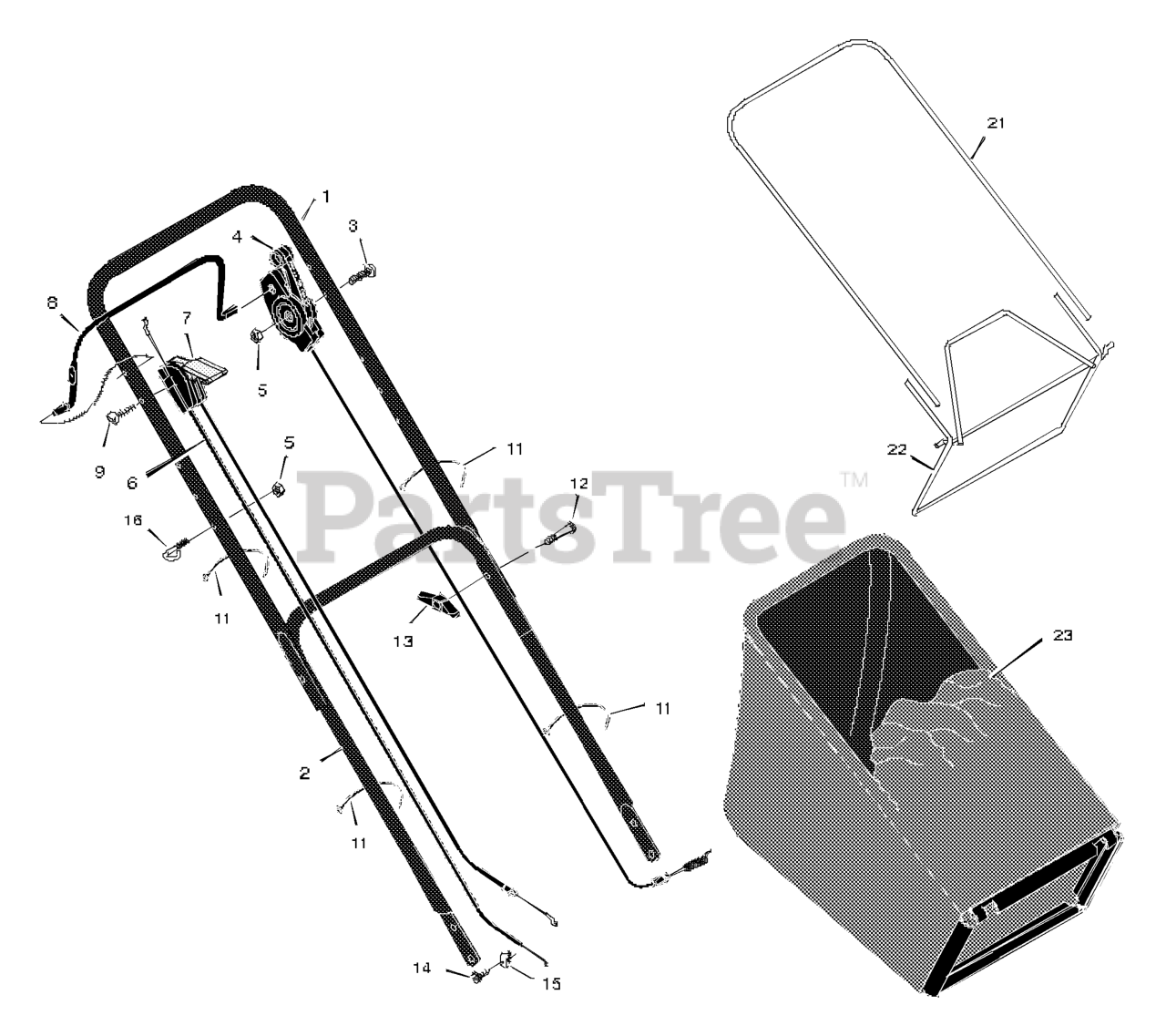

20605x31A - Scotts 20" Walk-Behind Mower (1997) > Parts Diagrams (2) > Handle & Bag Assembly

  • Title
671918E701

1

Handle, Upper (Black)

Part# 671918E701

OEM Warranty Repair Part for Murray

Not available

671917E701

2

Handle, Lower (Black)

Part# 671917E701

OEM Warranty Repair Part for Murray

Not available

03X144

3

Bolt

Part# 03X144

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.09

672067MA

4

Control, Drive

Part# 672067MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $46.67

15X116MA

5

Locknut

Part# 15X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

672130MA

6

Cable, Stop

Part# 672130MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $25.43

672144

7

Throttle Control

Part# 672144

OEM Warranty Repair Part for Murray

Not available

671922E701

8

Lever, Stop

Part# 671922E701

OEM Warranty Repair Part for Murray

Currently unavailable

03X144

9

Screw

Part# 03X144

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.09

071372MA

11

Fastener, Cable

Part# 071372MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

002X77MA

12

Bolt

Part# 002X77MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

071294

13

Knob

Part# 071294 (Superseded to 703065)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.09

26X268MA

14

Screw

Part# 26X268MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

042294

15

Clamp

Part# 042294

OEM Warranty Repair Part for Murray

Not available

043956

16

Guide, Rope

Part# 043956

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.03

071592MA

21

Frame, Top

Part# 071592MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $34.48

672068

22

Frame Assembly

Part# 672068

OEM Warranty Repair Part for Murray

Currently unavailable

672199MA

23

Bag, Cloth

Part# 672199MA (Superseded to 24201MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $118.42
