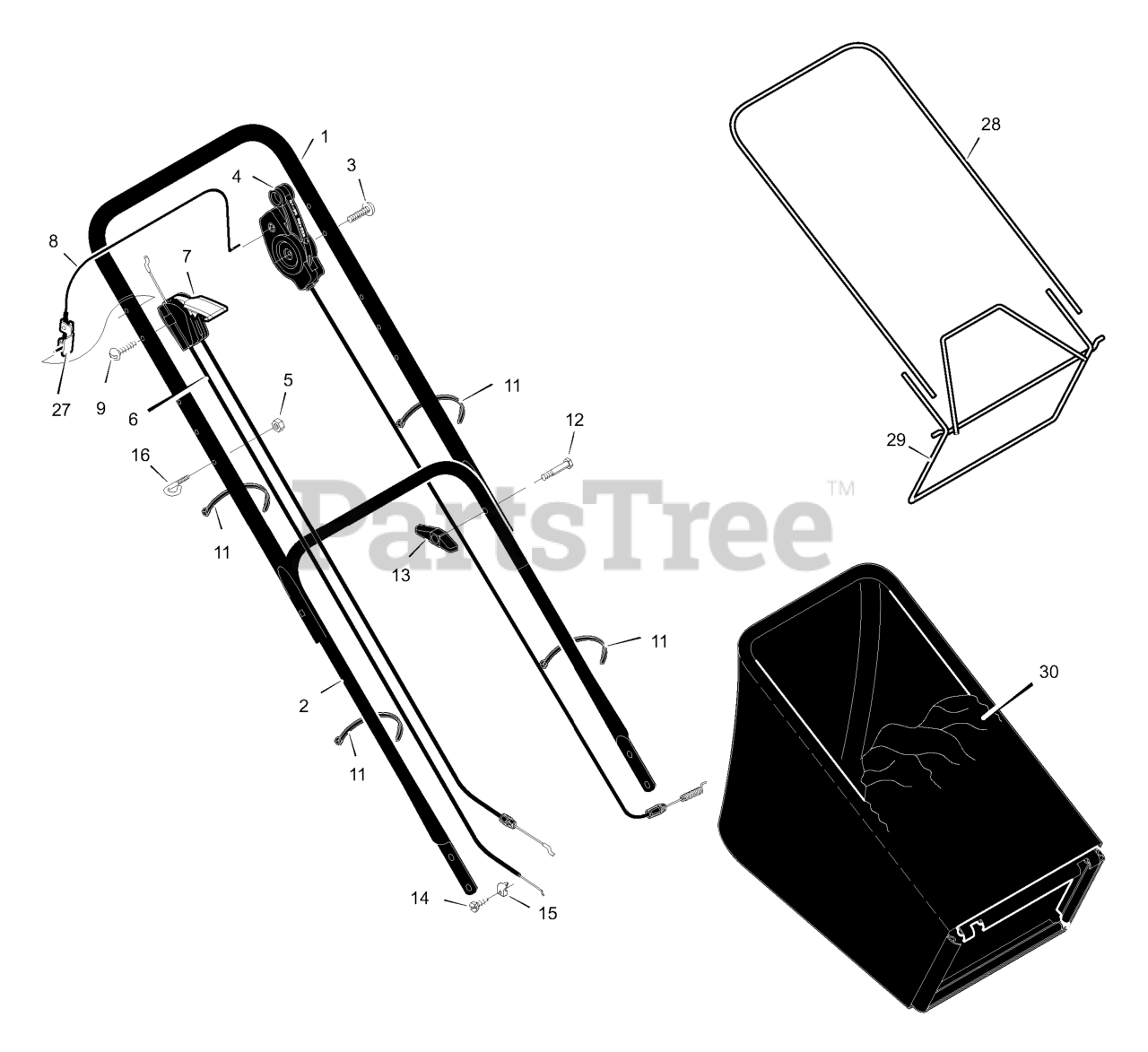

20606x50F - Murray 20" Walk-Behind Mower (1999) Handle And Bag Assembly Parts Diagram

20" Walk-Behind Mower

Handle And Bag Assembly Parts Diagram

  • Title

1

Murray 672665E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 671917E724

Handle, Lower (Black)

$

$

Currently unavailable

3

Murray 26X286MA

Bolt

$5.99

$

Usually ships in 2-12 days

0

4

Murray 672580MA

Control, Drive

$66.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672664MA

Cable, Stop

$29.99

$

Usually ships in 2-12 days

0

7

Murray 672144

Throttle Control

$6.99

$

Usually ships in 2-12 days

0

8

Murray 672570E701

Engine Stop Lever

$

$

Currently unavailable

9

Murray 025X14MA

Screw

$3.99

$

Usually ships in 2-12 days

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 6

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

15

Murray 042294

Clamp

$

$

Not available

16

Murray 043956MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

27

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

28

Murray 071592MA

Frame, Top

$

$

Not available

29

Murray 672614

Frame Assembly

$

$

Not available

30

Murray 672110MA

Bag, Cloth
(Superseded to 24201MA)

$136.99

$

Usually ships in 2-12 days

0
