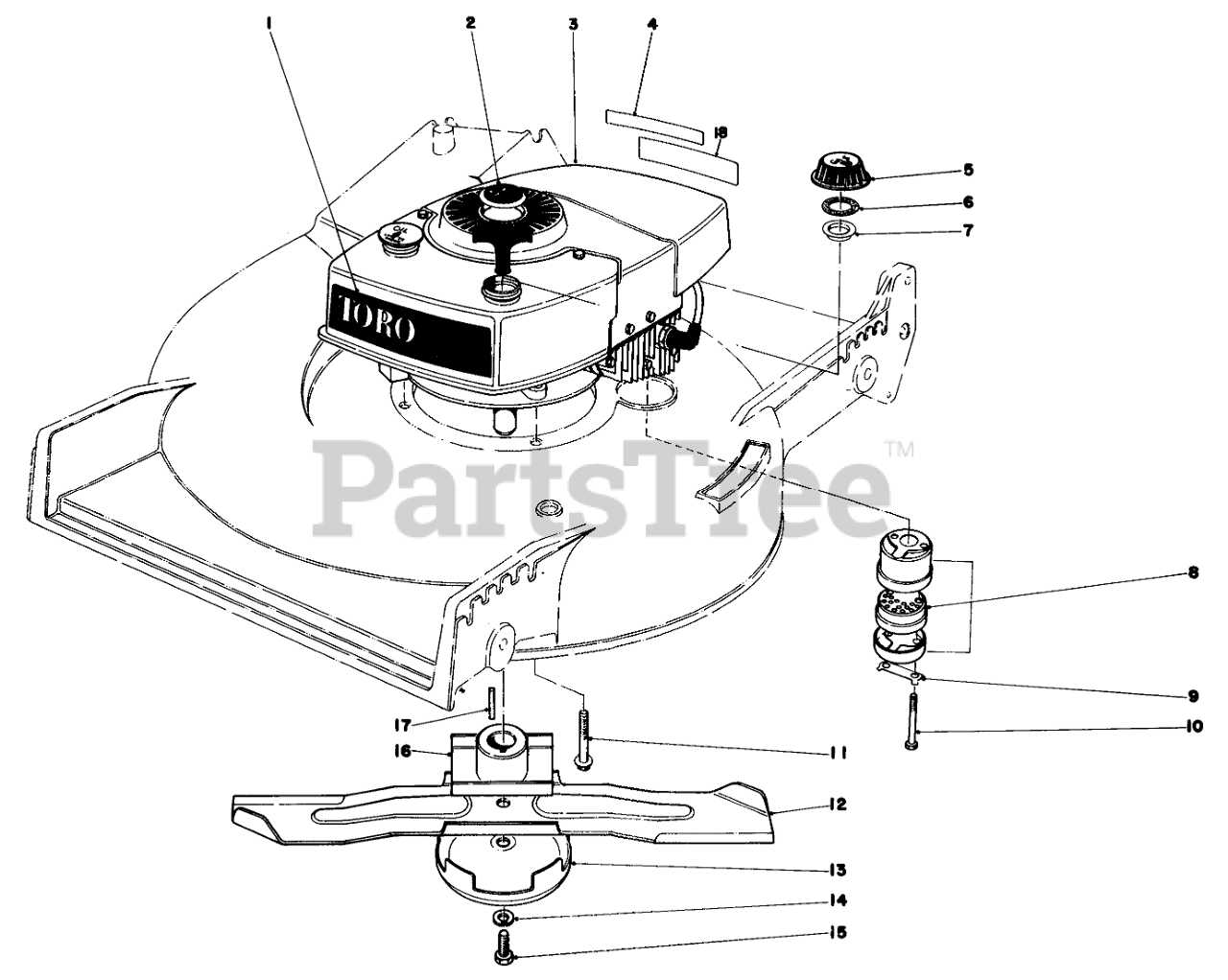

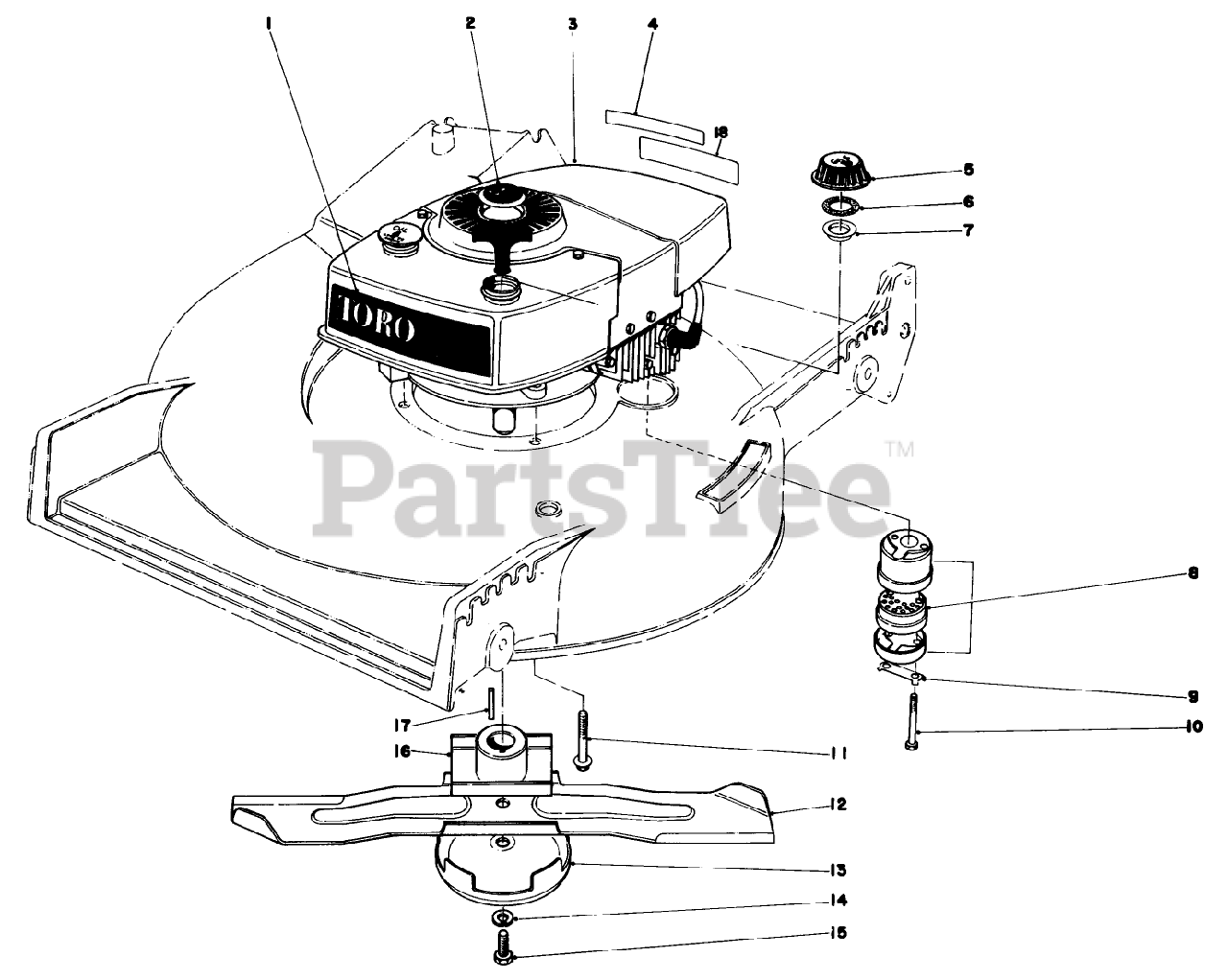

20610 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) Engine Assembly Parts Diagram

Walk-Behind Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 40-5470

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

2

Toro 38-1482

DISCONTINUED

$

$

Not available

3

Toro 221-685

Engine

$

$

Currently unavailable

4

Toro 40-2960

DISCONTINUED

$

$

Not available

5

Toro 27-7872

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$

$

Not available

7

Toro 2210-143

DISCONTINUED

$

$

Not available

8

Toro 5-4769

MUFFLER ASM

$67.99

$

Usually ships in 3-6 days

0

Toro 39-5930

DISCONTINUED

Note: Not illustrated

$

$

Not available

9

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

11

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

12

Toro 26-0880

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$29.99

$

In Stock, only 4 left!

0

13

Toro 8-4240

See Supercession: 80-2770
(Superseded to 80-2770)

$18.99

$

In Stock, only 2 left!

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

15

Toro 23-0080

BLADE SCREW

$

$

Not available

16

Toro 23-0110

See Supercession: 23-0110-03
(Superseded to 23-0110-03)

$

$

Not available

17

Toro 7-0036

KEY-SQUARE

$

$

Not available

18

Toro 40-2950

DISCONTINUED

$

$

Not available
