20610 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

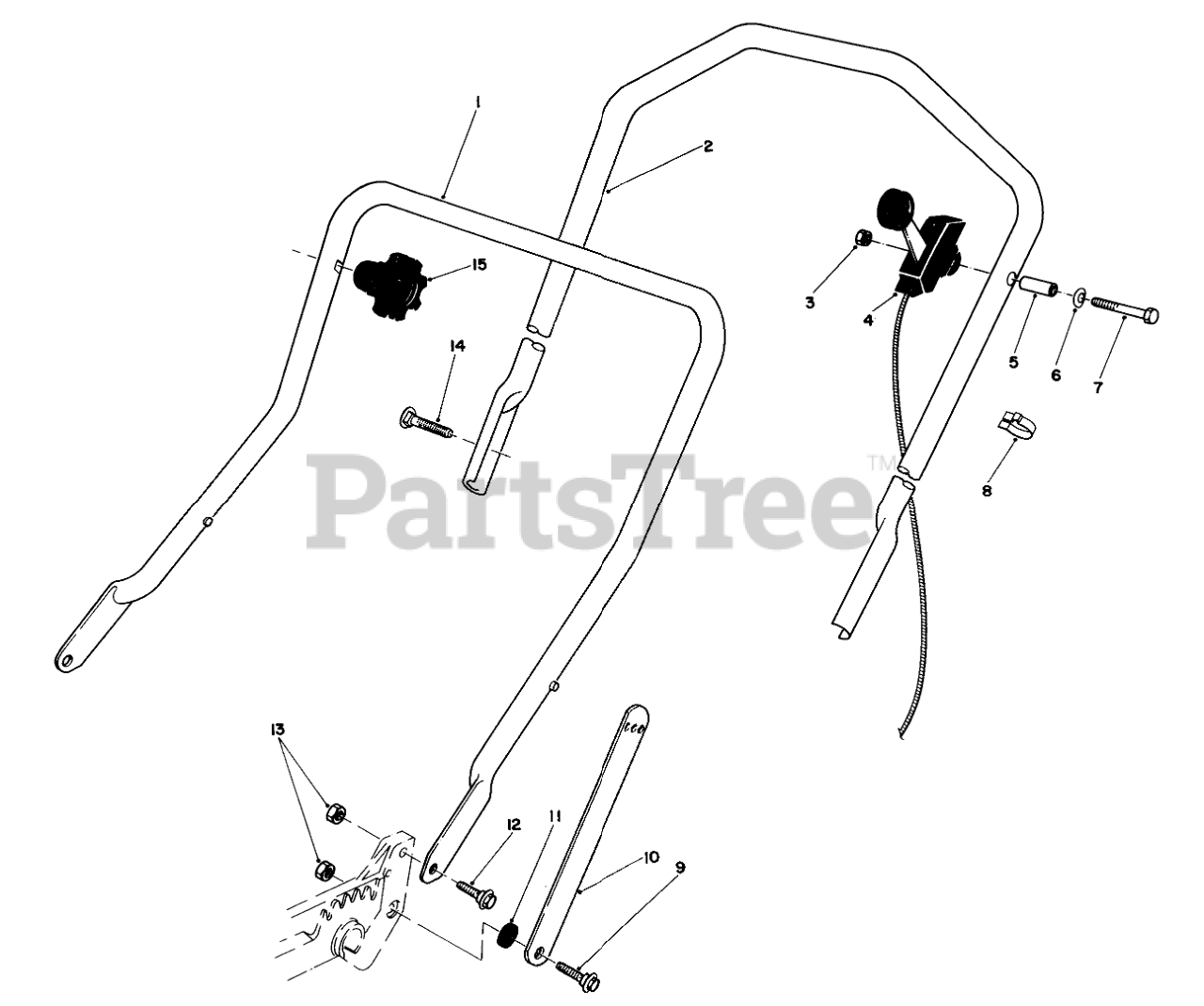

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

2

Toro 46-5410

UPPER HANDLE

$

$

Not available

3

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

4

Toro 46-6000

SERVICE THROTTLE CONTRO

$42.99

$

Usually ships in 3-6 days

0

5

Toro 47-5330

Spacer

$

$

Not available

6

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

7

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 218-465

BOWDEN CLIP

$

$

Not available

9

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

10

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

11

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

12

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

15

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0
