20610 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

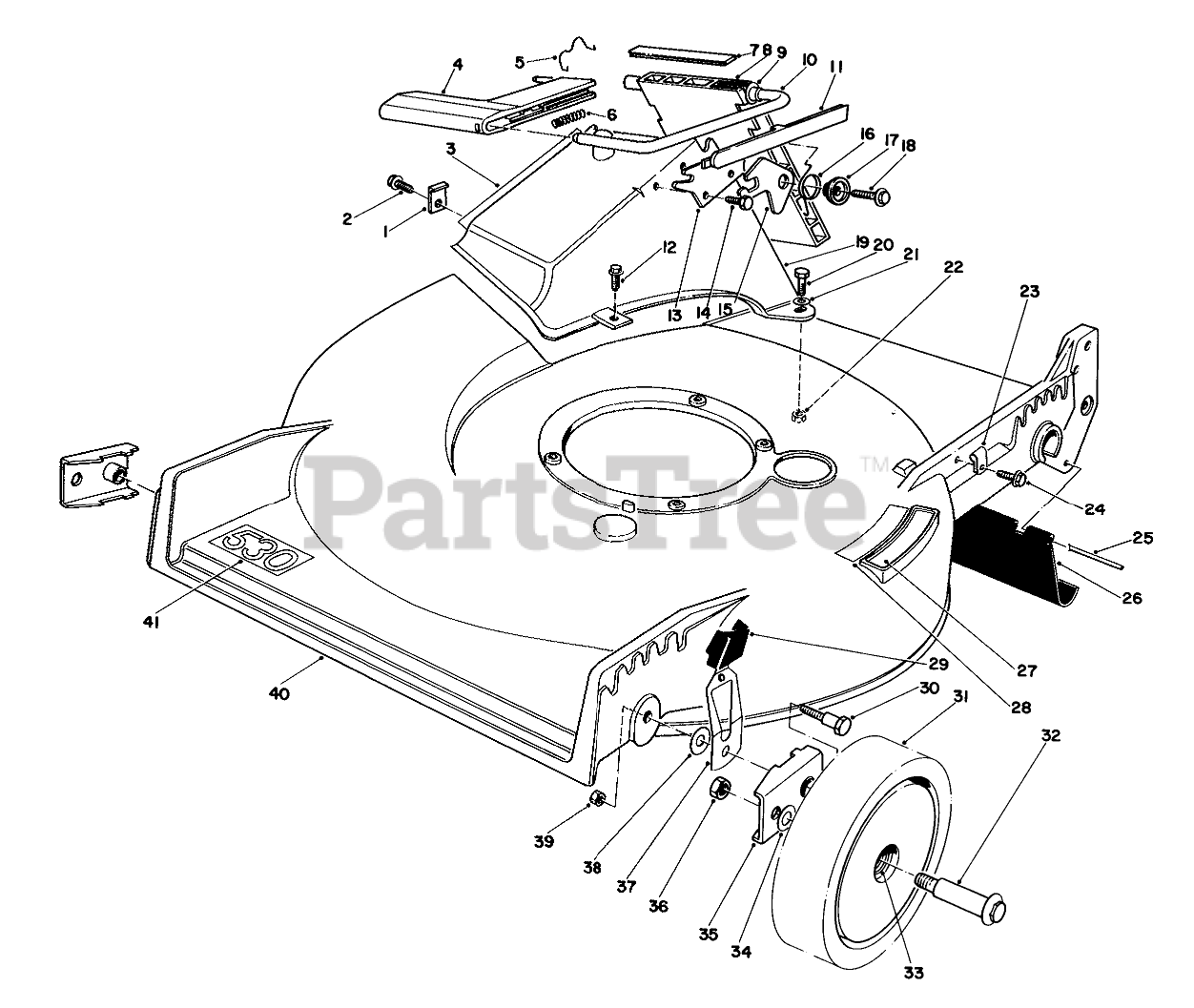

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 47-6540

TUNNEL CLIP

$

$

Not available

2

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

3

Toro 40-3050

Decal-Attention

$

$

Not available

4

Toro 46-3520

Handle-Door

$

$

Not available

5

Toro 47-5840

DOOR RET SPRING

$

$

Not available

6

Toro 46-7060

Spring

$

$

Not available

7

Toro 46-6820

DOOR COVER

$

$

Not available

8

Toro 46-3510

Door Discharge
(Superseded to 77-0200)

$

$

Not available

9

Toro 23-0880

BUSHING-NYLON

$

$

Not available

10

Toro 46-3530

DOOR ROD +

$

$

Not available

11

Toro 46-7050

DOOR HANDLE COVER

$4.99

$

Usually ships in 3-6 days

0

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

14

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 334860

Spring-Torsion

$

$

Currently unavailable

17

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

18

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

19

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$164.99

$

Usually ships in 3-6 days

0

20

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 2412-83

CLAMP-CABLE

$

$

Not available

24

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

25

Toro 47-4682

SHIELD ROD

$

$

Not available

26

Toro 29-9180

SHIELD - TRAILING

$59.99

$

Usually ships in 3-6 days

0

27

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

28

Toro 40-2720

Decal-Place Foot Here

$

$

Not available

29

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

30

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 12

0

31

Toro 46-1140

Wheel 8 Tire Assembly (Incl. Ref. #33)

$

$

Not available

32

Toro 274230

Bolt-Wheel

$

$

Currently unavailable

33

Toro 274250

Bushing

$

$

Currently unavailable

34

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

35

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

36

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

37

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$47.99

$

Usually ships in 3-6 days

0

38

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 11-4069

21HP RB-SUZ HSG/DECAL

$1081.99

$

Usually ships in 3-6 days

0

41

Toro 46-9410

Decal-530

$

$

Not available
