20611 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) Housing Assembly (continued)(used On Serial No. 9000101 Thru 9012541) Parts Diagram

Walk-Behind Mower

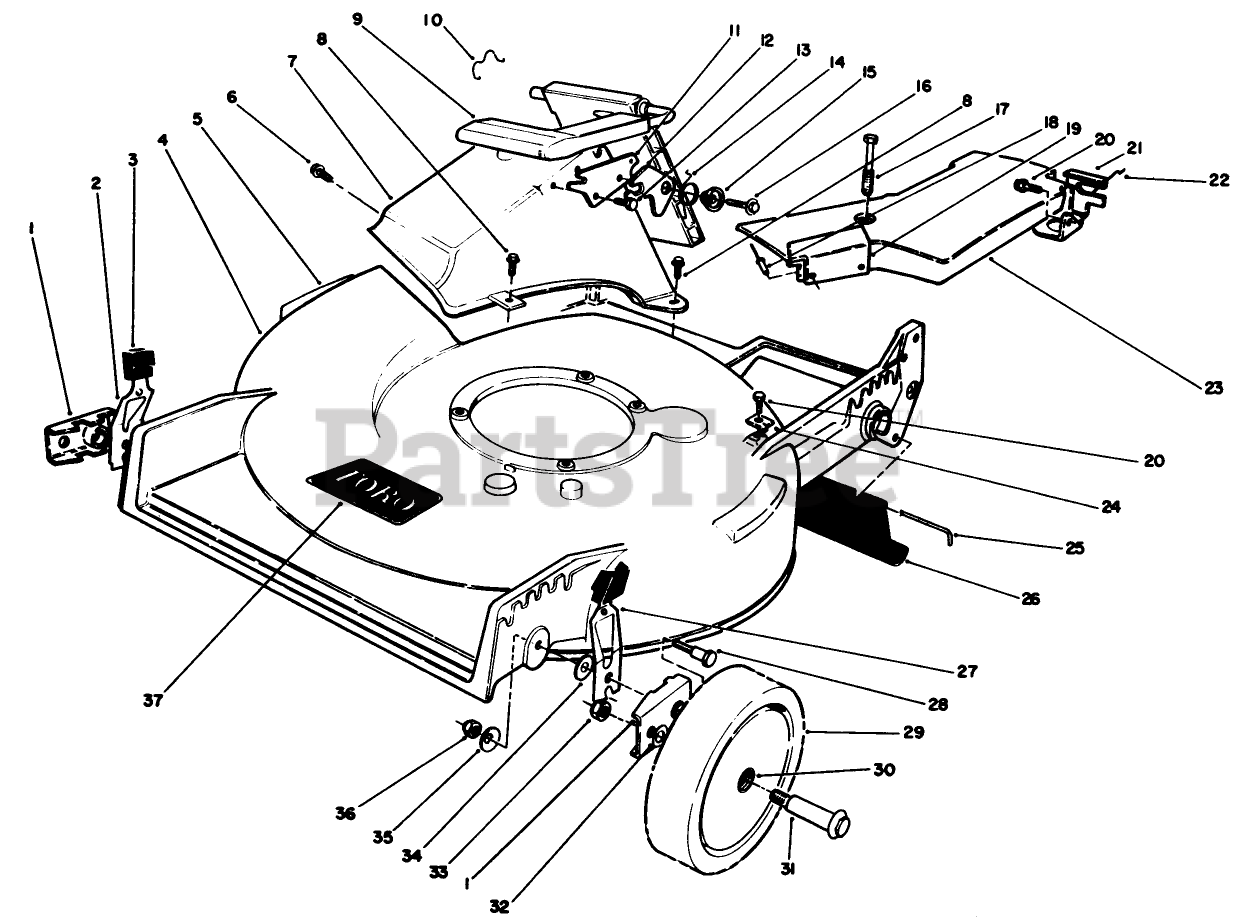

Housing Assembly (continued)(used On Serial No. 9000101 Thru 9012541) Parts Diagram

  • Title

1

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

2

Toro 52-7490

DISCONTINUED

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

4

Toro 12-2709

See Supercession: 11-4089
(Superseded to 11-4089)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

6

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

7

Toro 46-3500

See Supercession: 82-9151
(Superseded to 82-9151)

$

$

Not available

8

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

9

Toro 51-0201

See Supercession: 77-0200
(Superseded to 77-0200)

$

$

Not available

10

Toro 47-5840

DOOR RET SPRING

$

$

Not available

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 334860

Spring-Torsion

$

$

Currently unavailable

15

Toro 43-4840

DOOR SPACER

$

$

Not available

16

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

17

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, only 2 left!

0

18

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

19

Toro 38-8730

DISCONTINUED

$

$

Not available

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 7

0

21

Toro 62-3940

See Supercession: 82-5680-03
(Superseded to 82-5680-03)

$

$

Not available

22

Toro 46-7030

RETAINER-CABLE

$6.99

$

Usually ships in 3-6 days

0

23

Toro 52-7404

BELT COVER ASM

$

$

Not available

24

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 1 left!

0

25

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 8

0

26

Toro 29-9180

SHIELD - TRAILING

$77.99

$

Usually ships in 3-6 days

0

27

Toro 52-7480

DISCONTINUED

$

$

Not available

28

Toro 44-5270

PIVOT SCREW

$9.49

$

In Stock, Qty 5

0

29

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

30

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

31

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 1 left!

0

32

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

33

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, Qty 7

0

34

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 6

0

35

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 14

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 70-2200

DECAL

$5.99

$

In Stock, only 2 left!

0
