20616x50A - Murray 20" Walk-Behind Mower (2000) Handle & Bag Assembly Parts Diagram

20" Walk-Behind Mower

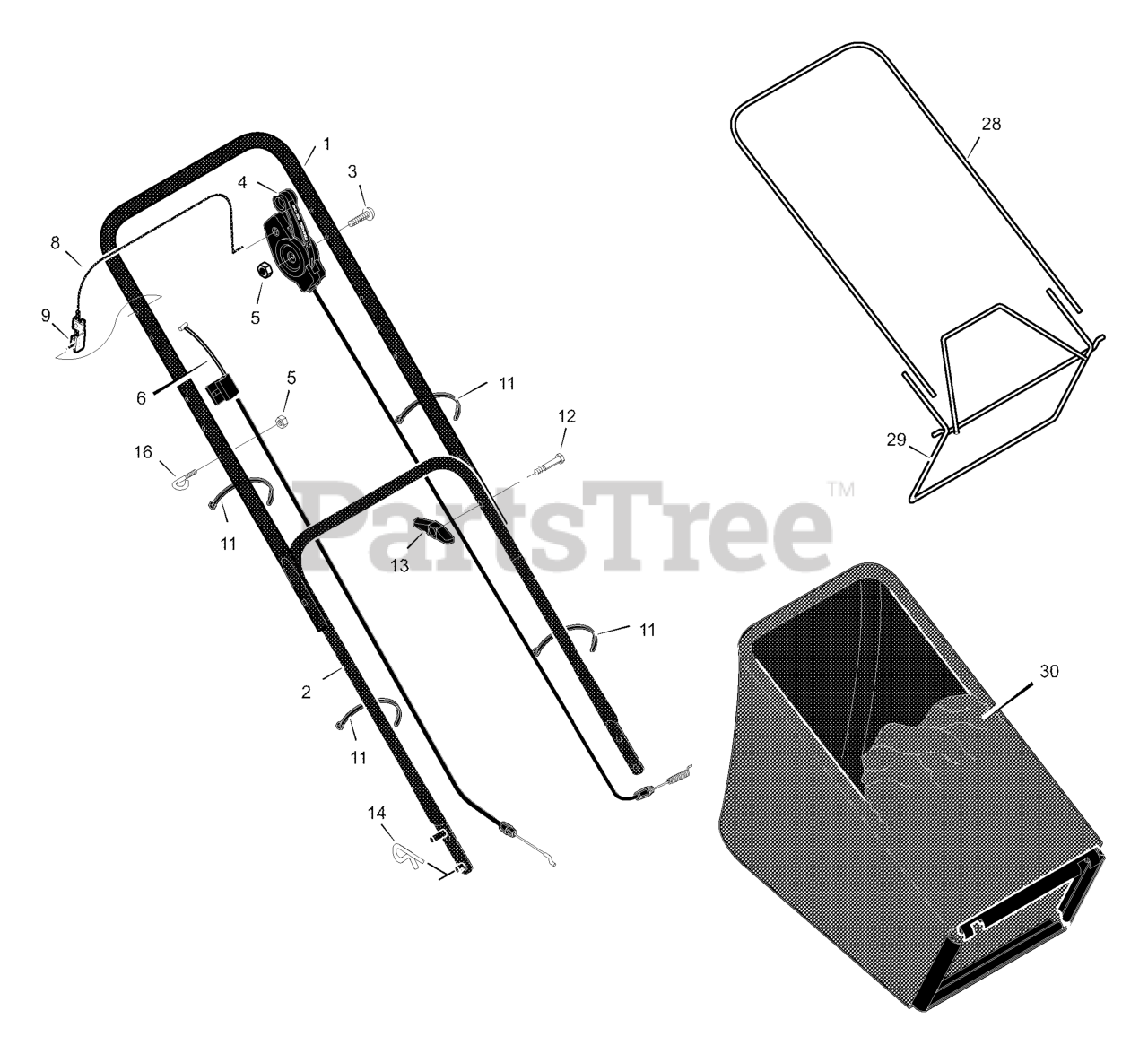

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 71581E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 1101010E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 26X286MA

Bolt

$5.99

$

Usually ships in 2-12 days

0

4

Murray 672872MA

Control, Drive

$

$

Not available

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672831

Cable, Stop

$

$

Currently unavailable

8

Murray 672878E701MA

Engine Stop Lever

$4.99

$

Usually ships in 2-12 days

0

9

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 6

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

15

Murray 042294

Clamp

$

$

Not available

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

28

Murray 071592MA

Frame, Top

$

$

Not available

29

Murray 672614

Frame Assembly

$

$

Not available

30

Murray 672110MA

Bag, Cloth
(Superseded to 24201MA)

$136.99

$

Usually ships in 2-12 days

0
