20616x50F - Murray 20" Walk-Behind Mower (2003) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

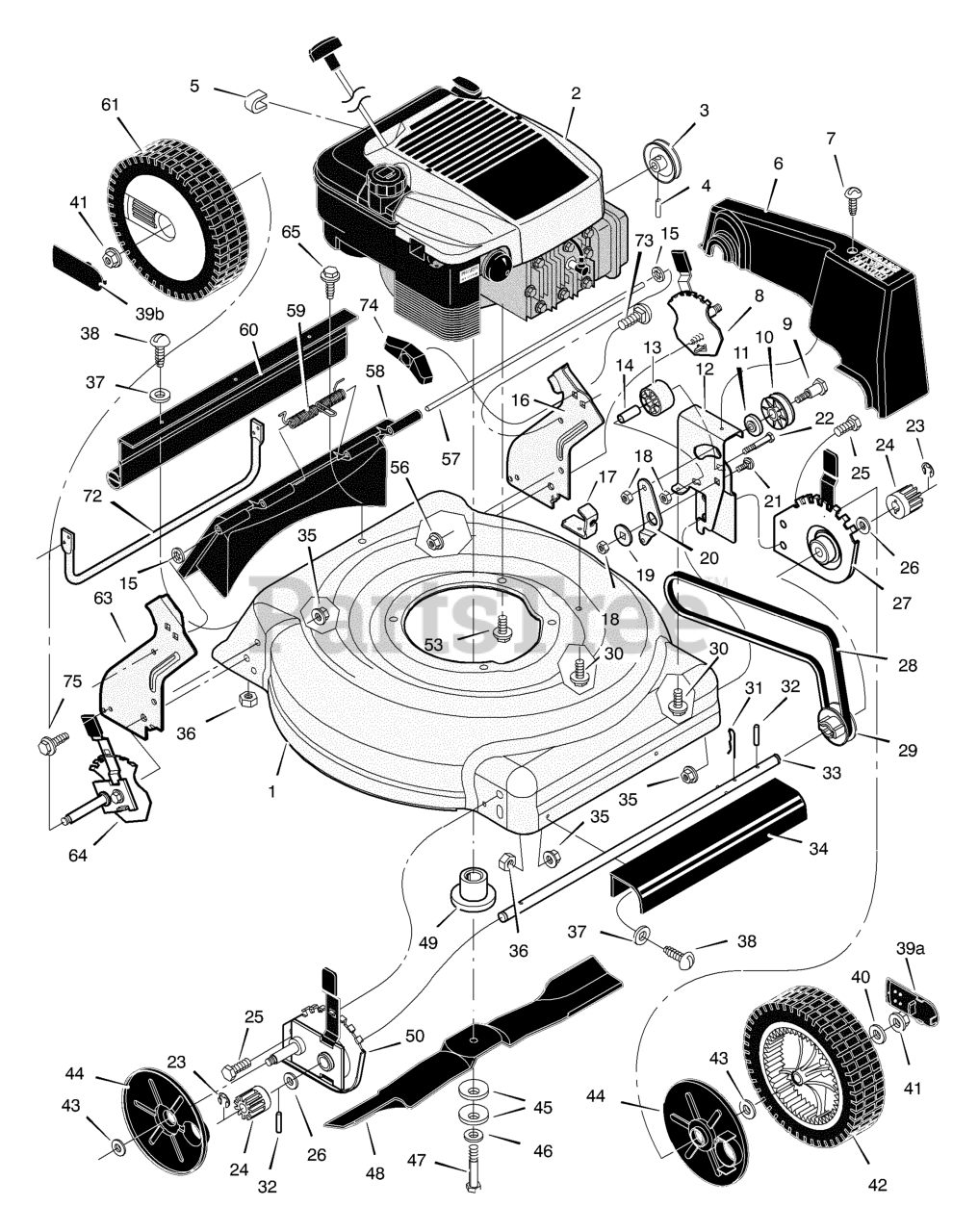

Mower Housing Assembly Parts Diagram

  • Title

1

Housing

$

$

Not available

2

Engine

$

$

Not available

3

Murray 071434MA

Pulley, Engine

$16.99

$

Usually ships in 2-12 days

0

4

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

6

Murray 672109

Cover, Belt (Gray)

$

$

Currently unavailable

7

Murray 26X259MA

Screw

$4.49

$

Usually ships in 2-12 days

0

8

Murray 672605MA

Adjuster, Left Height

$23.99

$

Usually ships in 2-12 days

0

9

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

10

Murray 071779MA

Pulley

$

$

Not available

11

Murray 071788MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

12

Murray 672772 Z

Bracket, Idler Support

$

$

Currently unavailable

13

Murray 071778MA

Pulley, Idler

$6.49

$

Usually ships in 2-12 days

0

14

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 6

0

15

Murray 028X49MA

Retainer, Push

Note: (Included with Ref. No. 58)

$3.99

$

In Stock, Qty 13

0

16

Murray 1101239E245

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 671934

Bracket, Cable

$

$

Currently unavailable

18

Murray 015X43MA

Nut, Hex
(Superseded to 703164)

$3.49

$

In Stock, Qty 12

0

19

Murray 071789MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

20

Murray 671936 Z

Arm, Idler

$

$

Currently unavailable

21

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

22

Murray 001X81MA

Bolt, Shoulder

$3.49

$

In Stock, only 2 left!

0

23

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

25

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

26

Murray 17X186MA

Washer

$5.49

$

Usually ships in 2-12 days

0

27

Murray 672603MA

Adjuster, Left Frt. Height

$113.99

$

In Stock, only 1 left!

0

28

Murray 037X84MA

Belt

$19.99

$

In Stock, only 2 left!

0

29

Murray 071791MA

Pulley, Axle

$16.99

$

Usually ships in 2-12 days

0

30

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

31

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

32

Murray 043629MA

Pin, Spring

$5.99

$

In Stock, Qty 6

0

33

Murray 671931MA

Axle

$60.99

$

Usually ships in 2-12 days

0

34

Murray 672108

Cover, Axle (Gray)

$

$

Currently unavailable

35

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

37

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

38

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

39A

Murray 043615MA

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

39B

Murray 043847MA

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

40

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

41

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 071133MA

Wheel, Drive

$50.99

$

In Stock, only 2 left!

0

43

Murray 17X120MA

Washer

$3.49

$

Usually ships in 2-12 days

0

44

Murray 071780MA

Cover, Dust

$5.99

$

In Stock, only 2 left!

0

45

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

46

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

47

Murray 01X153MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

48

Murray 672763E701MA

Blade

$26.99

$

In Stock, only 4 left!

0

49

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

50

Murray 672602MA

Adjuster, Right Frt. Height

$79.99

$

Usually ships in 2-12 days

0

53

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

56

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

57

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 58)

$

$

Currently unavailable

58

Murray 672612

Door, Rear (Gray)

$49.99

$

Usually ships in 2-12 days

0

59

Murray 166X44MA

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 3 left!

0

60

Murray 671970MA

Deflector, Rear

$13.99

$

Usually ships in 2-12 days

0

61

Murray 071134MA

Wheel, Rear

$34.99

$

Usually ships in 2-12 days

0

63

Murray 1101238E245

Bracket, Right Handle

$6.49

$

Usually ships in 2-12 days

0

64

Murray 672604MA

Adjuster, Right Height

$24.99

$

Usually ships in 2-12 days

0

65

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

72

Murray 671990

Guard, Rear

$

$

Not available

73

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

74

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

--

Murray 48X2062

Decal, Belt Pinch Symbol

$

$

Currently unavailable

--

Murray F-030437L

Instruction Book

$

$

Currently unavailable
