20620 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Handle Assembly Parts Diagram

Walk-Behind Mower

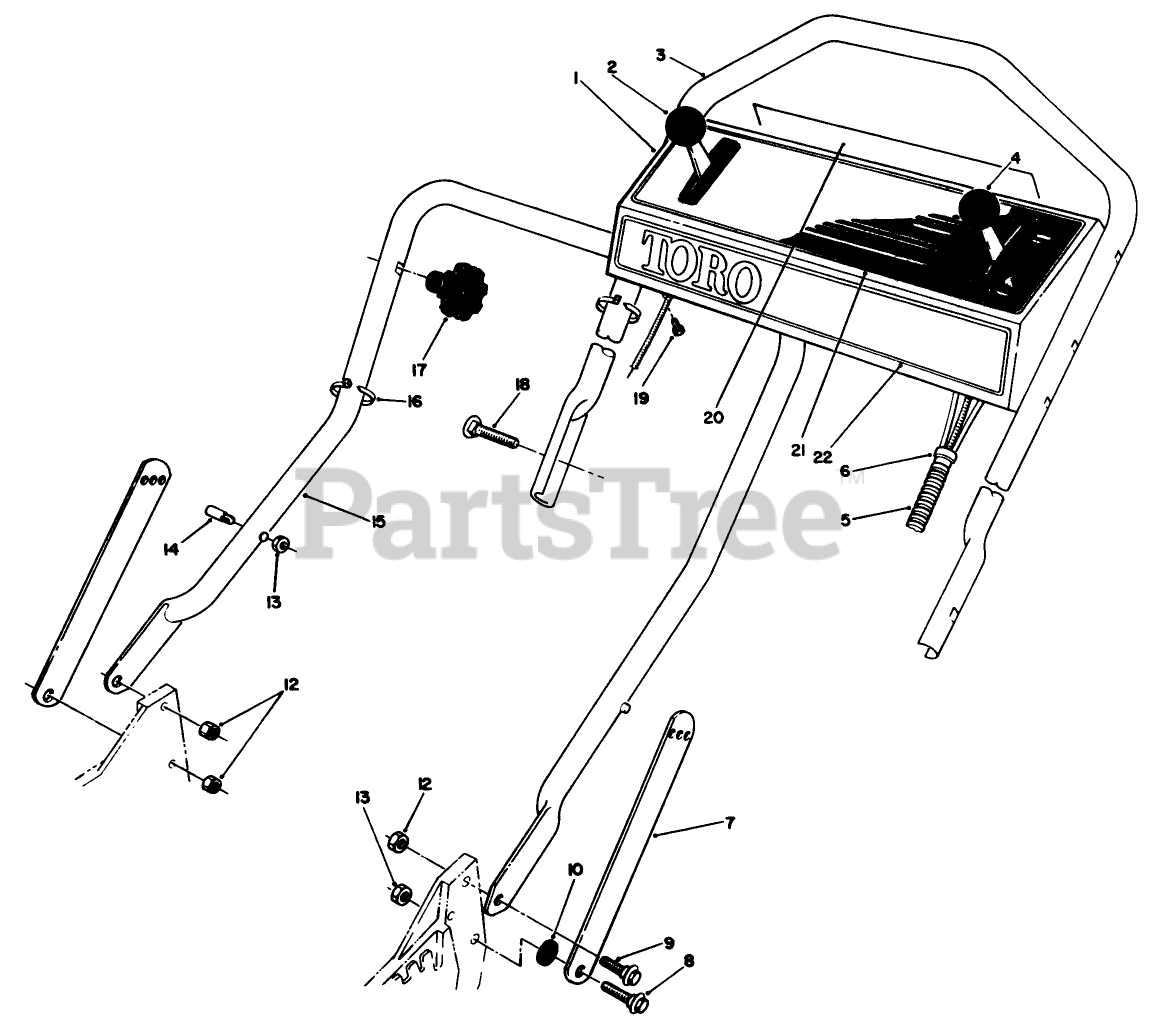

Handle Assembly Parts Diagram

  • Title

1

Toro 49-1670

See Supercession: 12-6289
(Superseded to 12-6289)

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$106.99

$

Usually ships in 3-6 days

0

3

Toro 46-5411

DISCONTINUED
(Superseded to 84-8332)

$

$

Not available

4

Toro 49-4193

THROTTLE CONT-SERVICE

$90.99

$

Usually ships in 3-6 days

0

5

Toro 46-6440

DISCONTINUED

$

$

Not available

6

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

7

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

8

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 7

0

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

14

Toro 49-2750

HANDLE PIN

$38.99

$

Usually ships in 3-6 days

0

15

Toro 43-1361

DISCONTINUED

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

17

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

18

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

20

Toro 66-1790

See Supercession: 93-6655
(Superseded to 93-6655)

$

$

Not available

21

Toro 66-1860

DISCONTINUED

$

$

Not available

22

Toro 66-1770

DISCONTINUED

$

$

Not available
