20622 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

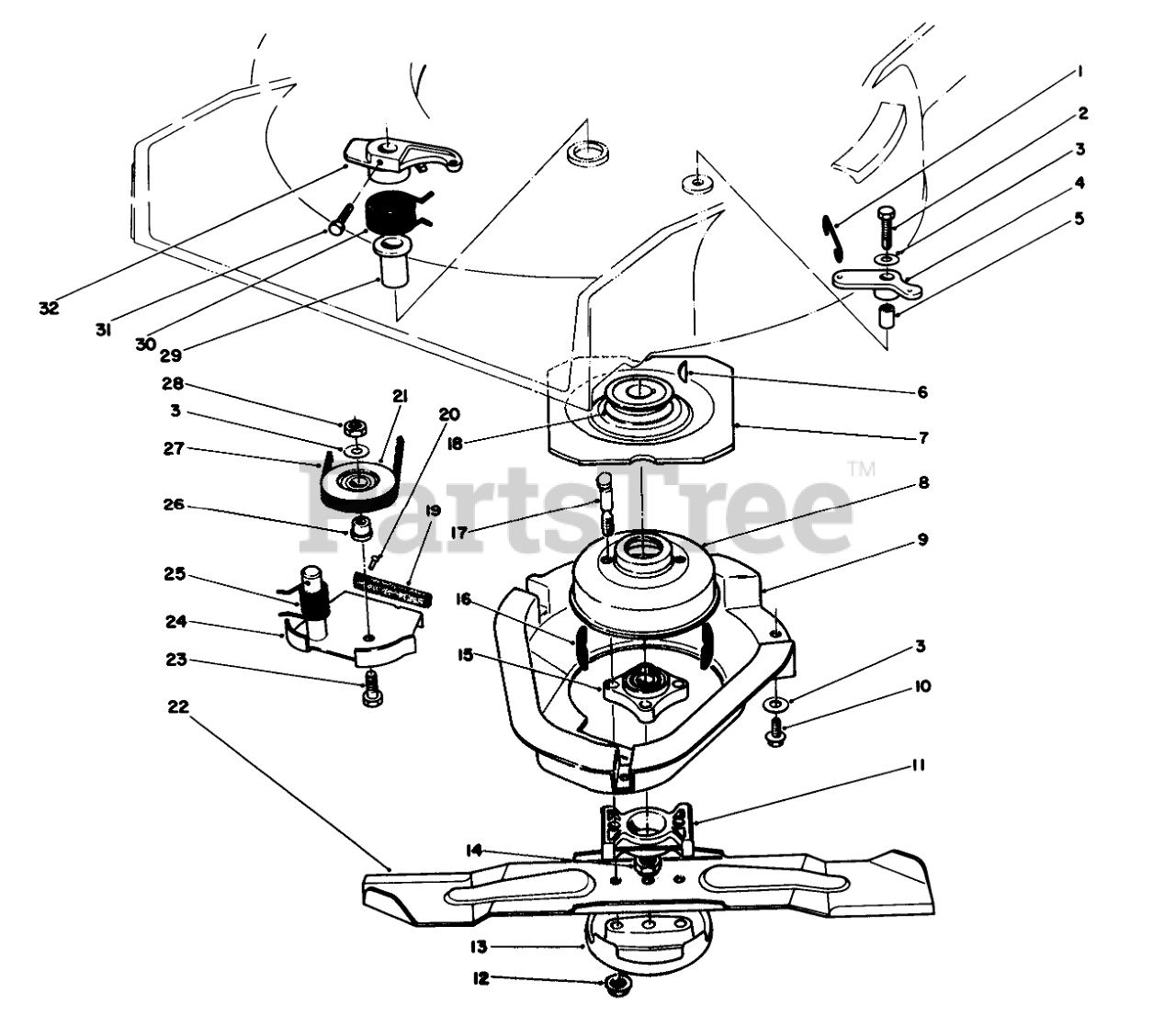

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 49-2810

LINK-CONTROL
Usually ships in 5 to 8 days

$

$2.23

0

Usually ships in 5 to 8 days

$

$6.18

0

3

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

4

Toro Part# 49-7960

BELLCRANK
Usually ships in 1 day

$

$8.93

0

5

Toro Part# 49-7950

SLEEVE-BELLCRANK
Usually ships in 5 to 8 days

$

$3.21

0

6

Toro Part# 3257-3

KEY-WOODRUFF
Usually ships in 1 day

$

$1.11

0

7

Toro Part# 56-6160

Flywheel
(Superseded to 56-6160-03)
Usually ships in 1 day

$

$86.08

0

8

Toro Part# 56-6170

Drum-Brake
(Superseded to 94-9431)
Usually ships in 5 to 8 days

$

$36.88

0

9

Toro Part# 46-5690

SHIELD BBC
Usually ships in 1 day

$

$45.47

0

10

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

11

Toro Part# 62-4280

SPACER-BLADE
(Superseded to 107-4275)
Usually ships in 5 to 8 days

$

$20.11

0

12
Usually ships in 1 day

$

$1.60

0

13

Toro Part# 42-0910

Anti Scalp Cup
(Superseded to 80-2770)
Usually ships in 1 day

$

$13.00

0

14

Toro Part# 3296-33

NUT-LOCK, NI
Usually ships in 1 day

$

$2.90

0

15
Usually ships in 1 day

$

$76.01

0

16

Toro Part# 52-3480

DAMPENER-VIBRATION
Usually ships in 1 day

$

$0.59

0

17

Toro Part# 42-3190

BOLT-BLADE
Usually ships in 1 day

$

$8.93

0

18
Usually ships in 1 day

$

$33.66

0

19

Part#

Pad-Brake
Usually ships same day

Not available

$

$

20

Toro Part# 3295-23

.185 DIA X .375 RT +
Usually ships in 5 to 8 days

$

$7.87

0

21

Toro Part# 46-5650

PULLEY-IDLER
(Superseded to 117-5299)
Usually ships in 1 day

$

$39.12

0

22

Toro Part# 42-1000

BLADE-21in
(Superseded to 107-4276-03)
Usually ships in 1 day

$

$26.82

0

23
Usually ships in 1 day

$

$3.34

0

24

Toro Part# 49-7920

Brake Plate (Incl. Ref. #19 & 20)
(Superseded to 94-1601)
Usually ships in 1 day

$

$82.98

0

25

Toro Part# 46-5670

SPRING-TORSION
Usually ships in 1 day

$

$7.87

0

26

Toro Part# 46-5630

HUB-PULLEY, IDLER
Usually ships in 1 day

$

$13.60

0

27
Usually ships in 1 day

$

$16.76

0

28

Toro Part# 3296-47

NUT-LOCK, NI
Usually ships in 1 day

$

$3.46

0

29

Toro Part# 46-6680

BUSHING PM
Usually ships in 1 day

$

$19.65

0

30

Toro Part# 49-7970

SPRING-TORSION
Usually ships in 5 to 8 days

$

$7.07

0

31
Usually ships in 1 day

$

$5.04

0

Usually ships in 1 day

$

$8.61

0
