20622 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

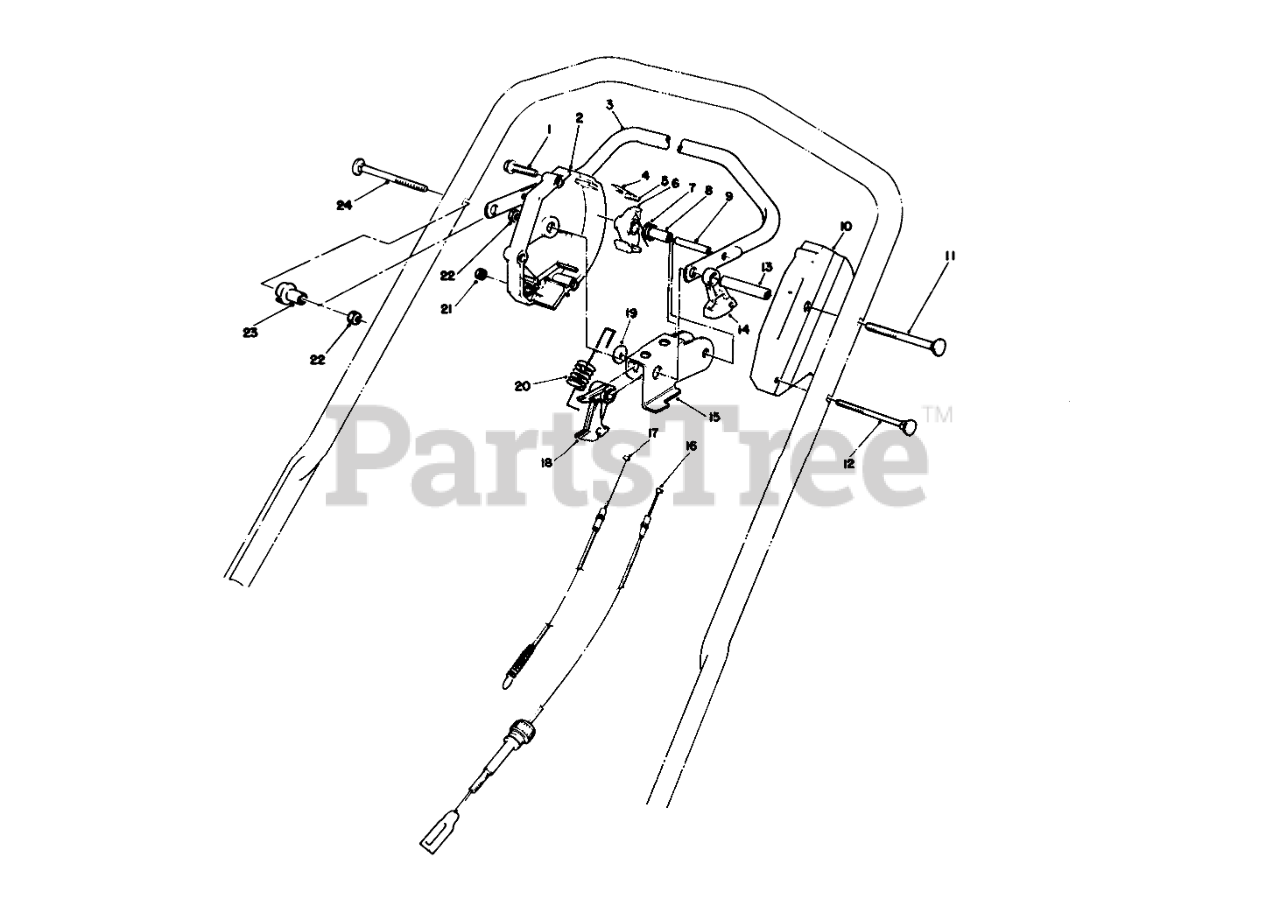

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 46-7040

SCREW-HWHTF
Usually ships in 5 to 8 days

$

$2.19

0

2

Toro Part# 12-3429

Housing-Control R.H. (Incl. Ref. #4 & 5)
Usually ships same day

Not available

$

$

3

Toro Part# 52-7430

Bar-Control
(Superseded to 52-7430-03)
Usually ships same day

Not available

$

$

4

Toro Part# 52-7410

SPRING-LEAF
Usually ships in 5 to 8 days

$

$33.98

0

5

Toro Part# 57-6290

PIN-INSERT
Usually ships in 5 to 8 days

$

$2.83

0

6

Toro Part# 46-5530

HOOK-CONTROL
Usually ships same day

Not available

$

$

7

Toro Part# 46-5510

SPRING-TORSION
Usually ships in 5 to 8 days

$

$4.29

0

Usually ships in 5 to 8 days

$

$14.04

0

9

Toro Part# 32121-9

PIN-ROLL, SLOTTED
Usually ships in 1 day

$

$2.88

0

10

Toro Part# 46-5460

HOUSING-CONTROL, LH
Usually ships same day

Not available

$

$

11

Toro Part# 17-9422

5/16-18 X 3 HNDLE SCREW
Usually ships same day

Not available

$

$

12

Toro Part# 46-6431

HANDLE SCREW
Usually ships in 5 to 8 days

$

$10.39

0

13

Toro Part# 46-5590

TUBING-SPACER
Usually ships in 5 to 8 days

$

$13.94

0

14

Toro Part# 46-5520

LEVER-TRACTION
Usually ships same day

Not available

$

$

15
Usually ships in 5 to 8 days

$

$18.96

0

16

Toro Part# 46-5480

TRACTION CABLE
Usually ships in 5 to 8 days

$

$71.53

0

17

Toro Part# 62-3770

Cable-Clutch
(Superseded to 83-6600)
Usually ships in 1 day

$

$49.18

0

18

Toro Part# 46-5540

LEVER-CABLE
Usually ships in 1 day

$

$13.99

0

19

Toro Part# 46-5600

PLASTIC WASHER
Usually ships in 5 to 8 days

$

$2.64

0

20

Toro Part# 65-5990

DETENT SPRING
Usually ships in 5 to 8 days

$

$50.86

0

21
Usually ships in 1 day

$

$1.22

0

22

Toro Part# 3296-58

NUT-LOCK, NI
Usually ships in 1 day

$

$2.05

0

23

Toro Part# 49-1630

SPACER-SUPPORT
Usually ships in 5 to 8 days

$

$7.26

0

24

Toro Part# 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)
Usually ships in 1 day

$

$3.34

0
