20622 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

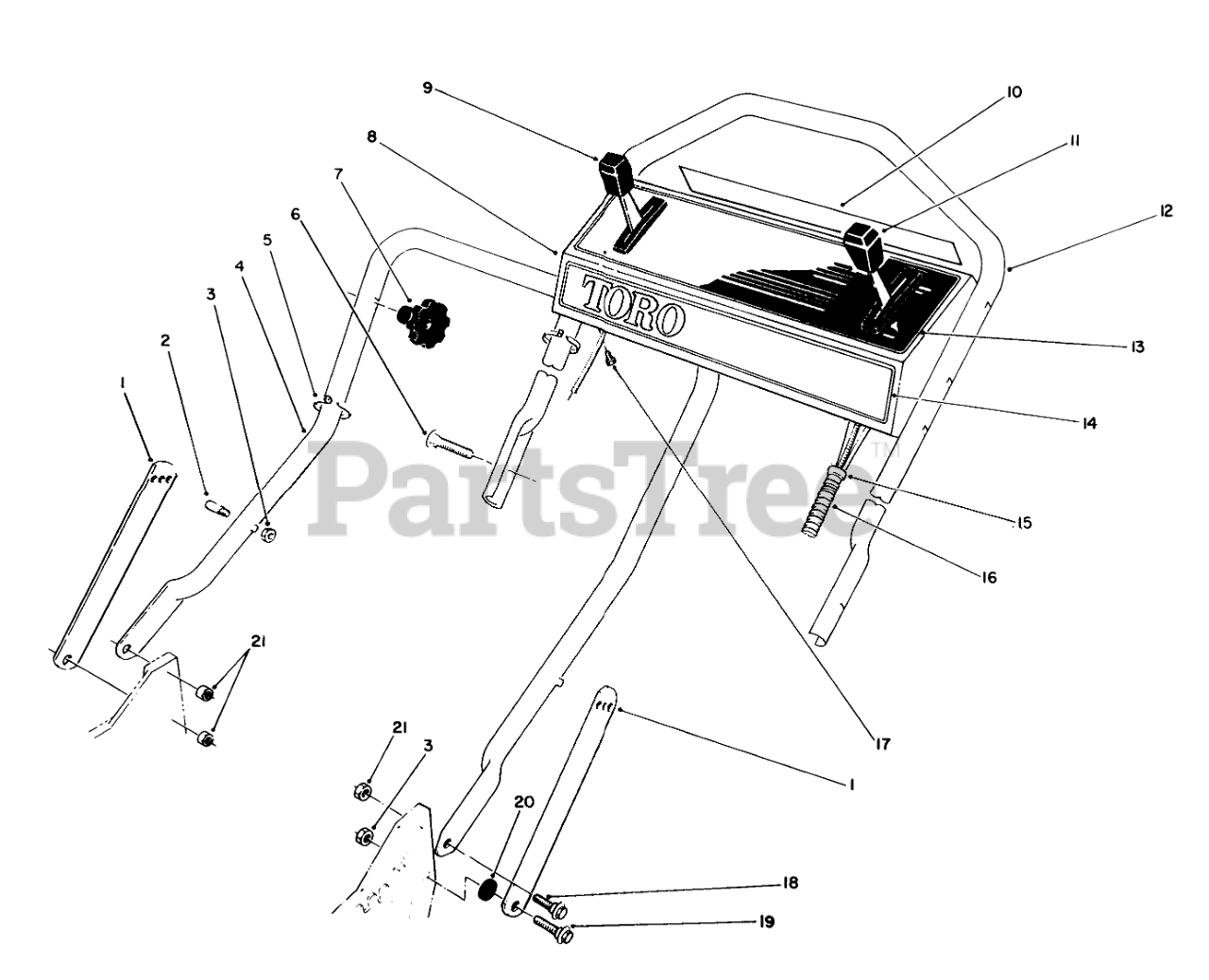

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

2

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

3

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

4

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

5

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

6

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

7

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

8

Toro 13-2549

Panel-Control (Incl. Ref. #10 & 13)

$

$

Not available

9

Toro 46-5431

GROUND SPEED CONTROL

$

$

Not available

10

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

11

Toro 49-4186

THROTTLE CONTROL

$

$

Not available

12

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

13

Toro 66-1870

Decal-Instruction

$

$

Not available

14

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available

15

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

16

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

19

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 4 left!

0

20

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
