20622 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) AIR CLEANER & FUEL TANK ASSEMBLY (MODEL NO. VMH7) Parts Diagram

Walk-Behind Mower

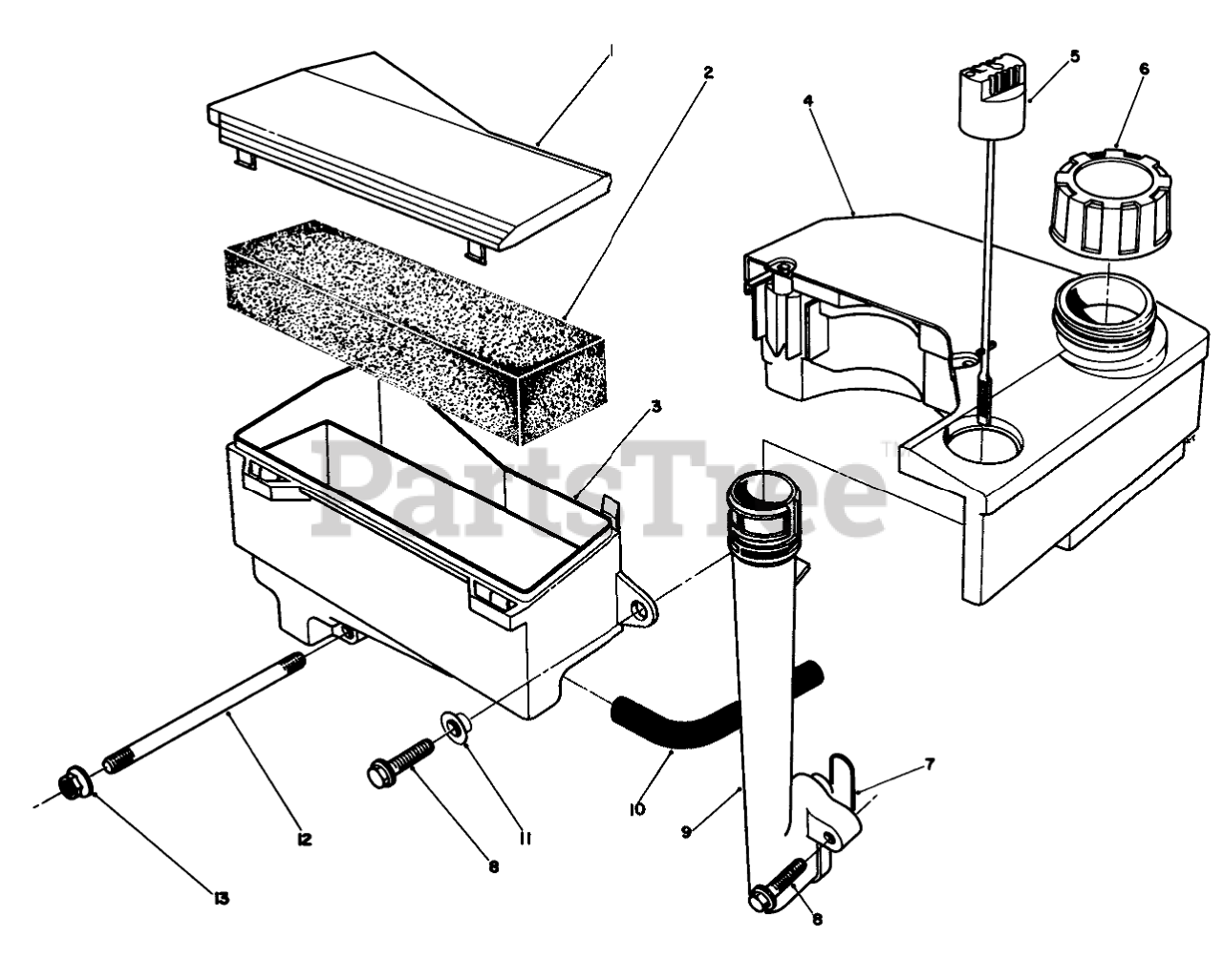

AIR CLEANER & FUEL TANK ASSEMBLY (MODEL NO. VMH7) Parts Diagram

  • Title

1

Toro 814110

Cover-Air Cleaner

$

$

Currently unavailable

2

Toro 814120

Filter-Foam

$

$

Currently unavailable

3

Body-Air Cleaner

$

$

Not available

4

Toro 55-3530

TANK ASM

$137.99

$

In Stock, only 2 left!

0

5

Toro 814140

Dipstick-Oil

$

$

Currently unavailable

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

7

Toro 814150

0-Ring-Oil Tube

$

$

Currently unavailable

8

Toro 814160

Bolt

$

$

Currently unavailable

9

Toro 814170

Tube-Oil Fill

$

$

Currently unavailable

10

Toro 81-4180

HOSE

$

$

Not available

11

Toro 81-4200

SPACER

$12.99

$

Usually ships in 3-6 days

0

12

Toro 81-4220

Stud-Carburetor
(Superseded to 81-4740)

$

$

Not available

13

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

Toro 81-4240

Air Cleaner Assembly (Incl. Ref. #1 & 3)

$

$

Not available

Toro 12-3369

Air Cleaner Assembly (Incl. Ref. #1-3)
(Superseded to 99-5276)

$

$

Not available
