20622 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) MUFFLER ASSEMBLY (MODEL NO. VMH7) Parts Diagram

Walk-Behind Mower

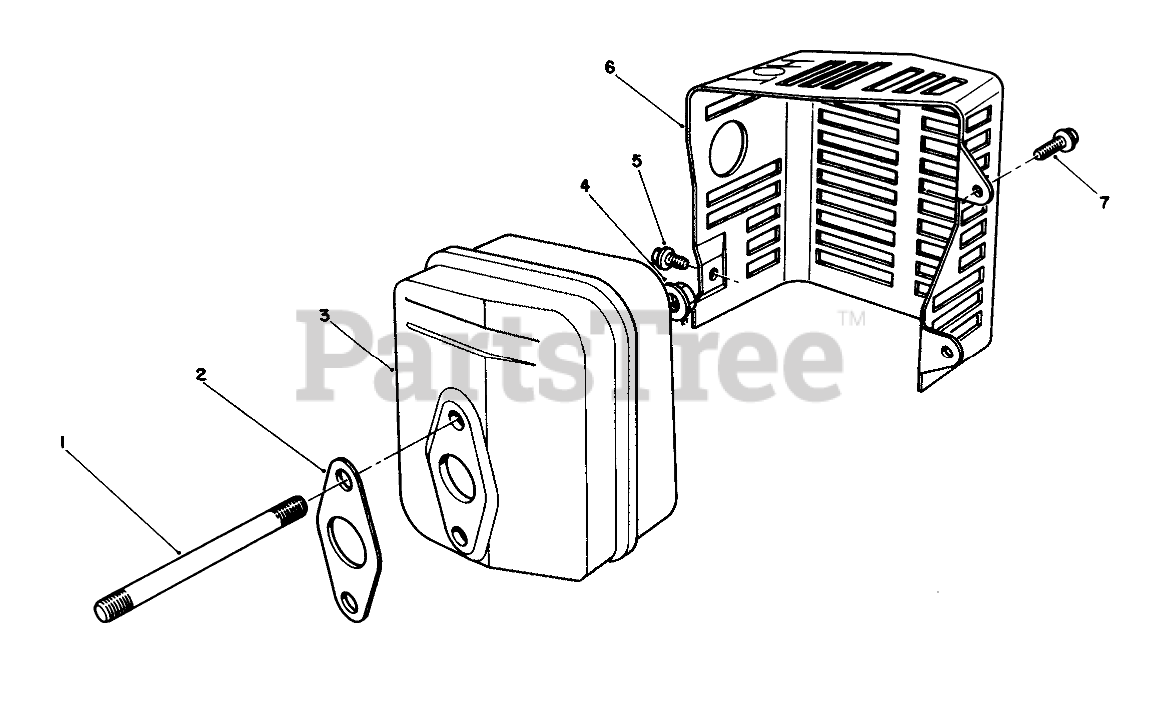

MUFFLER ASSEMBLY (MODEL NO. VMH7) Parts Diagram

  • Title

1

Toro 81-4380

STUD

$

$

Not available

2

Toro 81-4390

GASKET

$

$

Not available

3

Toro 814400

Muffler

$

$

Currently unavailable

4

Toro 50-0530

NUT

$

$

Not available

5

Toro 814420

Screw

$

$

Currently unavailable

6

Toro 814430

Cover-Muffler

$

$

Currently unavailable

7

Toro 81-1170

BOLT

$9.49

$

Usually ships in 3-6 days

0

Toro 56-6730

Spark Arrester Kit (Incl. Ref. #2)(Optional)

$

$

Not available
