20627 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

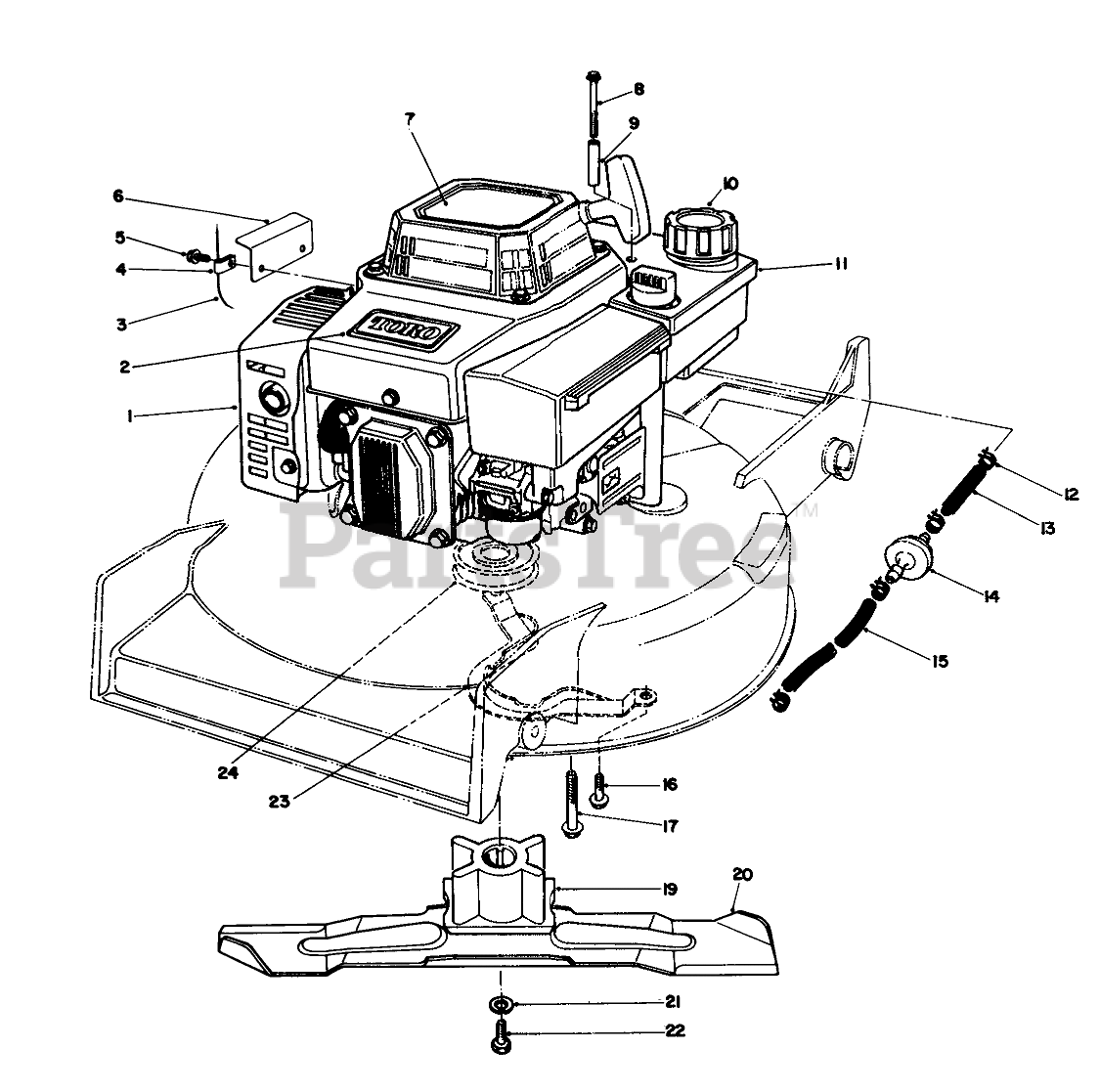

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

3

Toro 55-7900

Wire Assembly

$

$

Not available

4

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

5

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

6

Toro 55-7890

FLYWHEEL SHIELD

$

$

Not available

7

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

8

Toro 56-6610

THRD FORMING SCREW

$4.99

$

Usually ships in 3-6 days

0

9

Toro 57-3830

TUBULAR SPACER

$4.99

$

Usually ships in 3-6 days

0

10

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

11

Toro 55-3530

TANK ASM

$137.99

$

In Stock, only 2 left!

0

12

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

13

Toro 51-3211

LINE-GAS

$6.49

$

In Stock, Qty 6

0

14

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

15

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

16

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

17

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

19

Toro 62-7540

BLADE RETAINER

$83.99

$

In Stock, only 1 left!

0

20

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

21

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

22

Toro 26-0670

SCREW-BLADE

$

$

Not available

23

Toro 40-5720

BELT GUIDE

$

$

Not available

24

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

Toro 56-6680

Drain Tube
(Superseded to 75-9850)

$

$

Not available

Toro 46-9620

SPK PLUG WRENCH/HDLE

$19.99

$

Usually ships in 3-6 days

0

Toro 46-9621

WRENCH KEY

$

$

Not available
