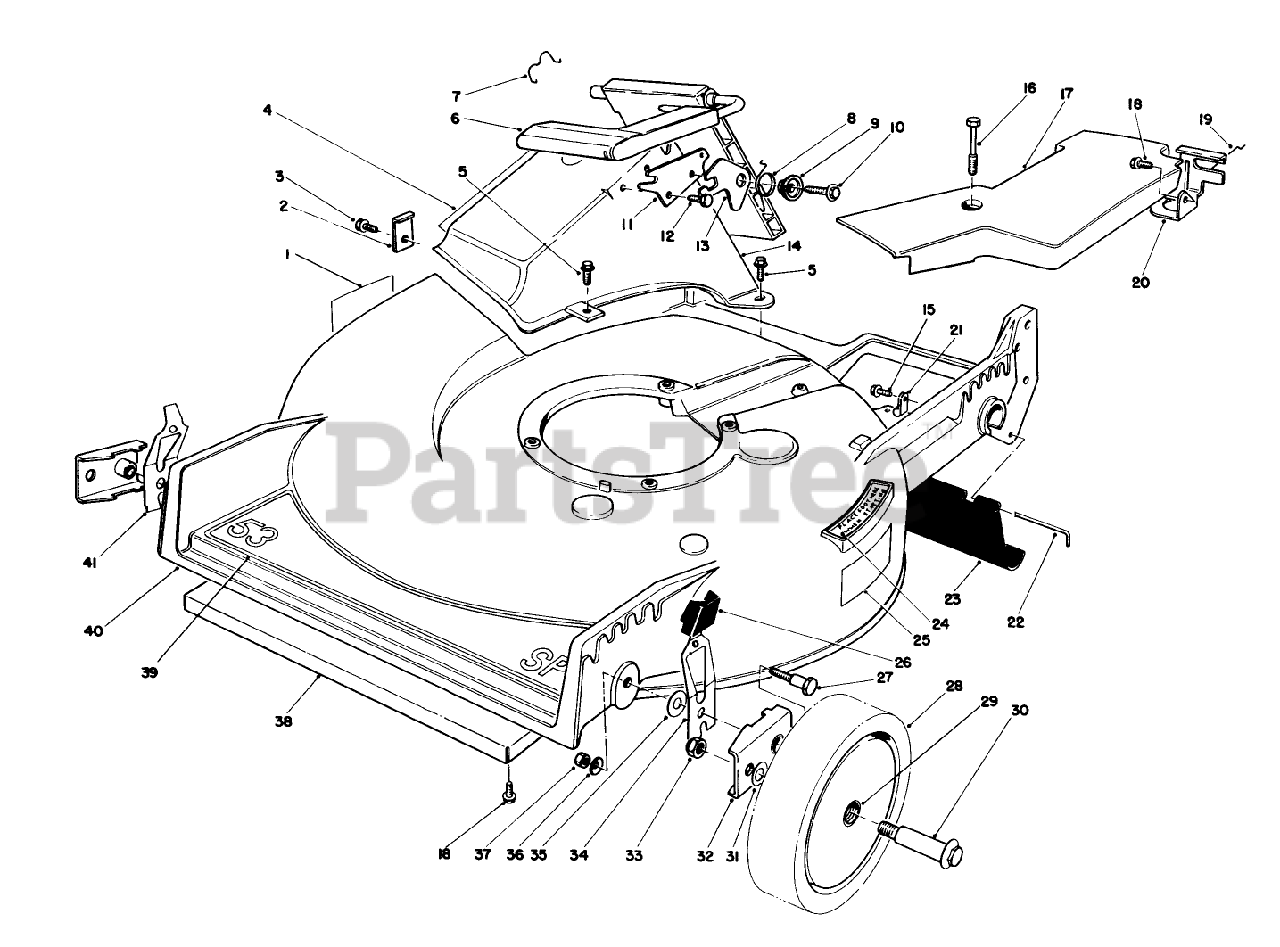

20627 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 62-3860

See Supercession: 93-6667
(Superseded to 93-6667)

$

$

Not available

2

Toro 47-6540

TUNNEL CLIP

$

$

Not available

3

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 11

0

4

Toro 62-4060

DISCONTINUED

$

$

Not available

5

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

6

Toro 51-0200

See Supercession: 77-0200
(Superseded to 77-0200)

$

$

Not available

7

Toro 47-5840

DOOR RET SPRING

$

$

Not available

8

Toro 33-4860

TORSION SPRING

$80.99

$

Usually ships in 3-6 days

0

9

Toro 43-4840

DOOR SPACER

$

$

Not available

10

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

13

Toro 42-4010

SAFETY LATCH

$

$

Not available

14

Toro 46-3500

See Supercession: 82-9151
(Superseded to 82-9151)

$

$

Not available

15

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

16

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, only 2 left!

0

17

Toro 62-4310

DISCONTINUED
(Superseded to 82-9911)

$

$

Not available

18

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

19

Toro 46-7030

RETAINER-CABLE

$6.99

$

Usually ships in 3-6 days

0

20

Toro 62-3940

See Supercession: 82-5680-03
(Superseded to 82-5680-03)

$

$

Not available

21

Toro 2412-83

CLAMP-CABLE

$

$

Not available

22

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 8

0

23

Toro 44-0580

See Supercession: 112-9989
(Superseded to 112-9989)

$30.99

$

In Stock, only 2 left!

0

24

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

25

Toro 62-3860

See Supercession: 93-6667
(Superseded to 93-6667)

$

$

Not available

26

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

27

Toro 44-5270

PIVOT SCREW

$9.49

$

In Stock, Qty 5

0

28

Toro 11-9509

See Supercession: 51-2751
(Superseded to 51-2751)

$33.99

$

In Stock, only 4 left!

0

29

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

30

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

31

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

32

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

33

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, Qty 7

0

34

Toro 52-7480

DISCONTINUED

$

$

Not available

35

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, only 1 left!

0

36

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 19

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 46-5400

See Supercession: 46-5400-03
(Superseded to 46-5400-03)

$

$

Not available

39

Toro 62-3210

DISCONTINUED

$

$

Not available

40

Toro 46-5190

See Supercession: 11-4089
(Superseded to 11-4089)

$

$

Not available

41

Toro 52-7490

DISCONTINUED

$

$

Not available
