20636 - Toro 48cm Multicycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Engine Assembly Parts Diagram

48cm Multicycler Walk-Behind Mower

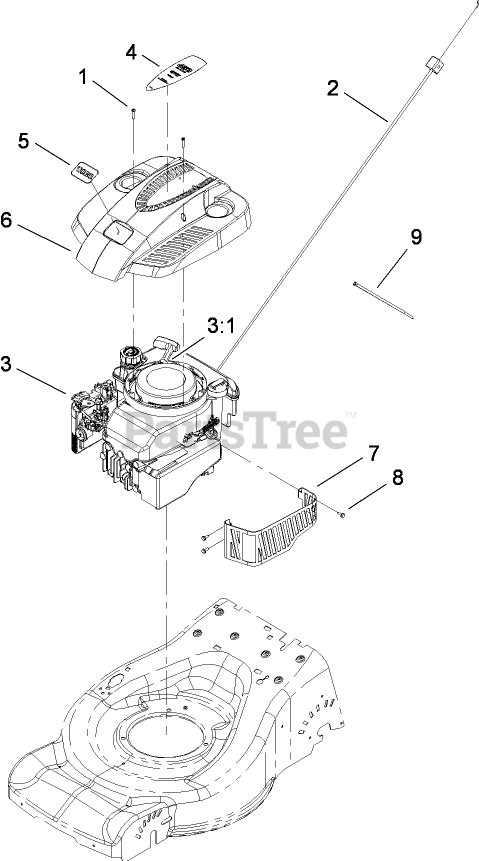

Engine Assembly Parts Diagram

  • Title

1

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

2

Toro 104-8677

CABLE-BRAKE

$19.99

$

In Stock, only 3 left!

0

3

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

3

Loose Parts Package

Note: Not serviced separately

$

$

Not available

3:1

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

4

Toro 115-3857

DISCONTINUED

$

$

Not available

5

Toro 110-7135

DECAL-TORO

$

$

Currently unavailable

6

Toro 110-9156

SHROUD-ENGINE

$

$

Not available

7

Toro 110-9158

SHIELD-MUFFLER

$

$

Currently unavailable

8

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 12

0

9

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0
