20637 - Toro 48cm Multicycler Walk-Behind Mower (SN: 280K00001 - 280K99999) (2008) Engine Assembly Parts Diagram

48cm Multicycler Walk-Behind Mower

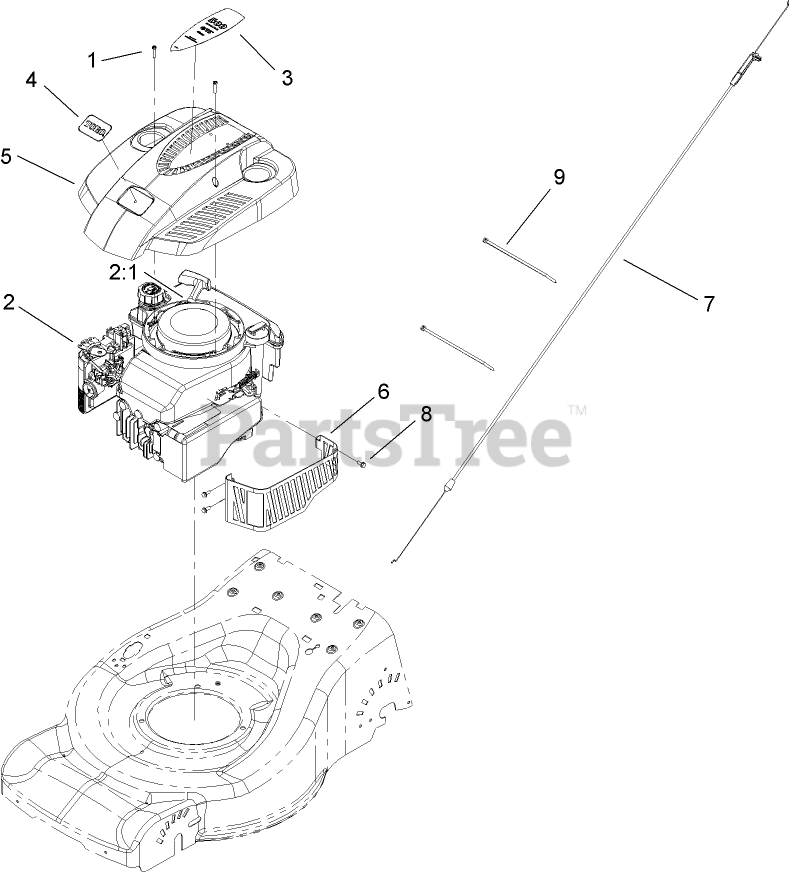

Engine Assembly Parts Diagram

  • Title

1

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

2

Loose Parts Package

Note: Not serviced separately

$

$

Not available

2

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2:1

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

3

Toro 115-3857

DISCONTINUED

$

$

Not available

4

Toro 110-7135

DECAL-TORO

$

$

Currently unavailable

5

Toro 110-9156

SHROUD-ENGINE

$

$

Not available

6

Toro 110-9158

SHIELD-MUFFLER

$

$

Currently unavailable

7

Toro 110-9163

CABLE-BRAKE

$91.99

$

Usually ships in 3-6 days

0

8

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 12

0

9

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0
