20638 - Toro 48cm Multicycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE ASSEMBLY Parts Diagram

48cm Multicycler Walk-Behind Mower

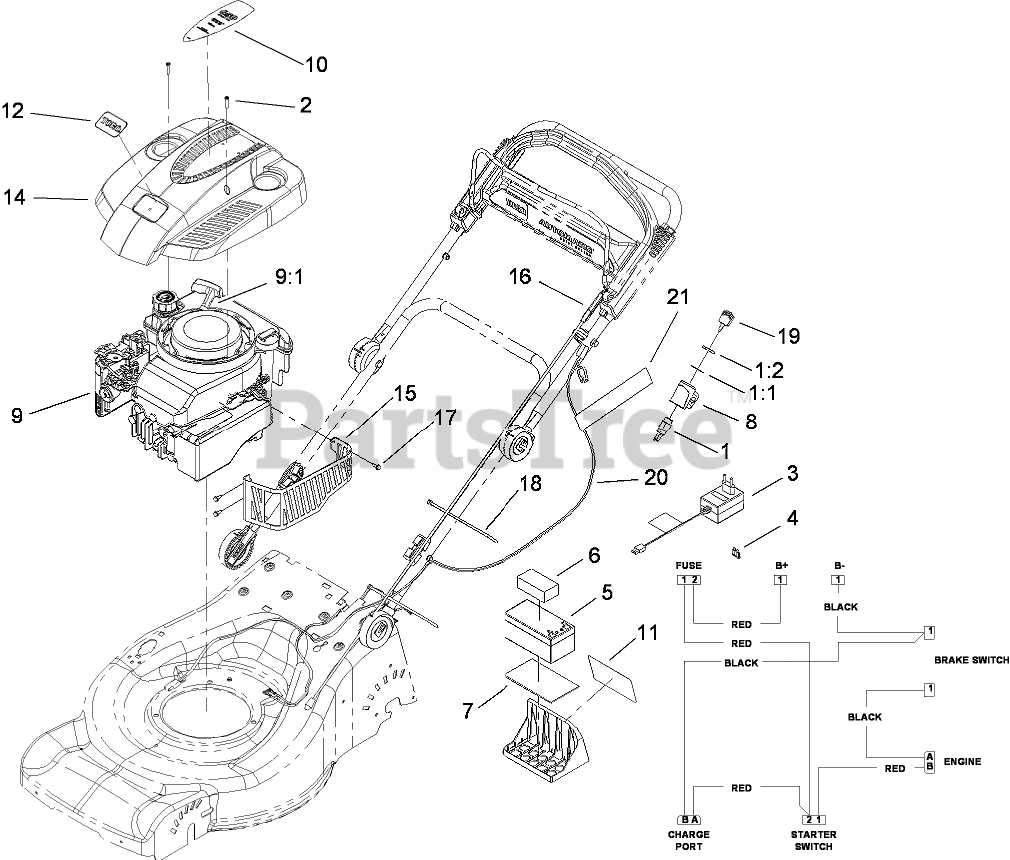

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, Qty 5

0

1:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 18

0

1:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 7

0

2

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 19

0

3

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$

$

Not available

4

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 16

0

5

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, Qty 5

0

6

Toro 107-3774

FOAM-BATTERY, TOP

$5.49

$

In Stock, Qty 19

0

7

Toro 108-0987

FOAM-BATTERY

$2.49

$

In Stock, only 1 left!

0

8

Toro 108-9760

MOUNT-SWITCH

$6.49

$

In Stock, Qty 19

0

9

ENGINE-BRIGGS AND STRATTON, 126T05-1840-B1

Note: Not serviced separately

$

$

Not available

9

ENGINE-BRIGGS AND STRATTON, 126T05-1840-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9:1

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

10

Toro 115-3857

DECAL-ENGINE, 48cm

$

$

Not available

11

Toro 110-7059

DECAL-FUSE

$

$

Currently unavailable

12

Toro 110-7135

DECAL-TORO

$

$

Currently unavailable

14

Toro 110-9156

SHROUD-ENGINE

$

$

Not available

15

Toro 110-9158

SHIELD-MUFFLER

$

$

Currently unavailable

16

Toro 110-9163

CABLE-BRAKE

$89.99

$

Usually ships in 3-6 days

0

17

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 10

0

19

Toro 700918

KEY

$6.49

$

In Stock, only 4 left!

0

20

Toro 110-9165

HARNESS-WIRING

$

$

Not available

21

Toro 104-7953

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0
