20638 - Toro 48cm Multicycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) UPPER HANDLE ASSEMBLY Parts Diagram

48cm Multicycler Walk-Behind Mower

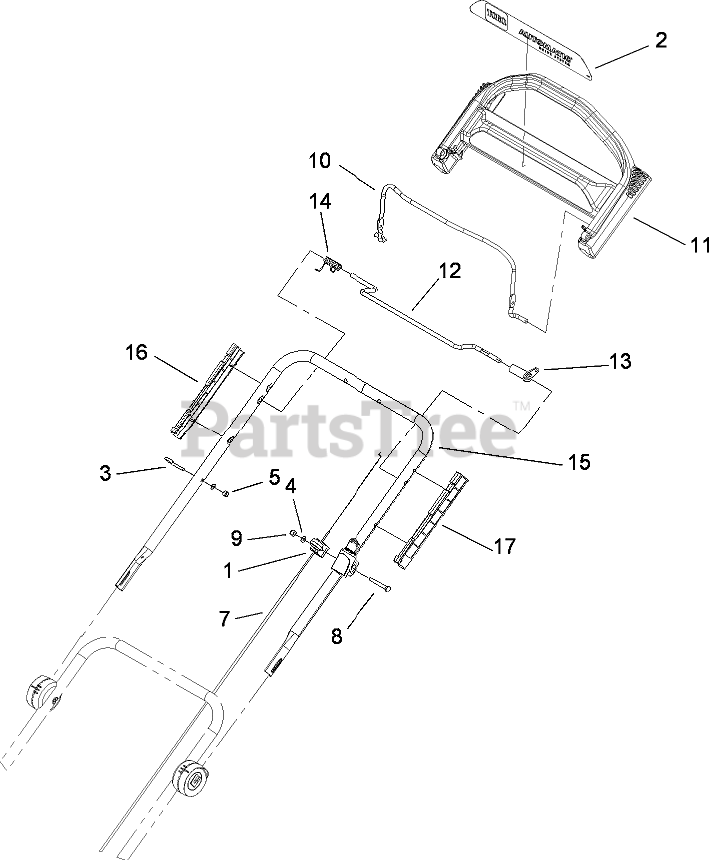

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 16

0

2

Toro 110-7056

DECAL-HANDLE

$19.99

$

Usually ships in 3-6 days

0

3

Toro 110-7186

GUIDE-CORD

$

$

Currently unavailable

4

Toro 110-8450

WASHER

$

$

Currently unavailable

5

Toro 110-8451

NUT-HEX, NI

$

$

Currently unavailable

7

Toro 110-9162

CABLE-TRACTION

$62.99

$

Usually ships in 3-6 days

0

8

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 5

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

10

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$15.99

$

In Stock, Qty 20+

0

11

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 2 left!

0

12

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, Qty 7

0

13

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

14

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

15

Toro 114-5369

HANDLE-UPPER
(Superseded to 110-7084)

$

$

Not available

16

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

17

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0
