20645 - Toro Carefree Electric Walk-Behind Mower, 120V AC (SN: 079000001 - 079999999) (1997)

Carefree Electric Walk-Behind Mower, 120V AC

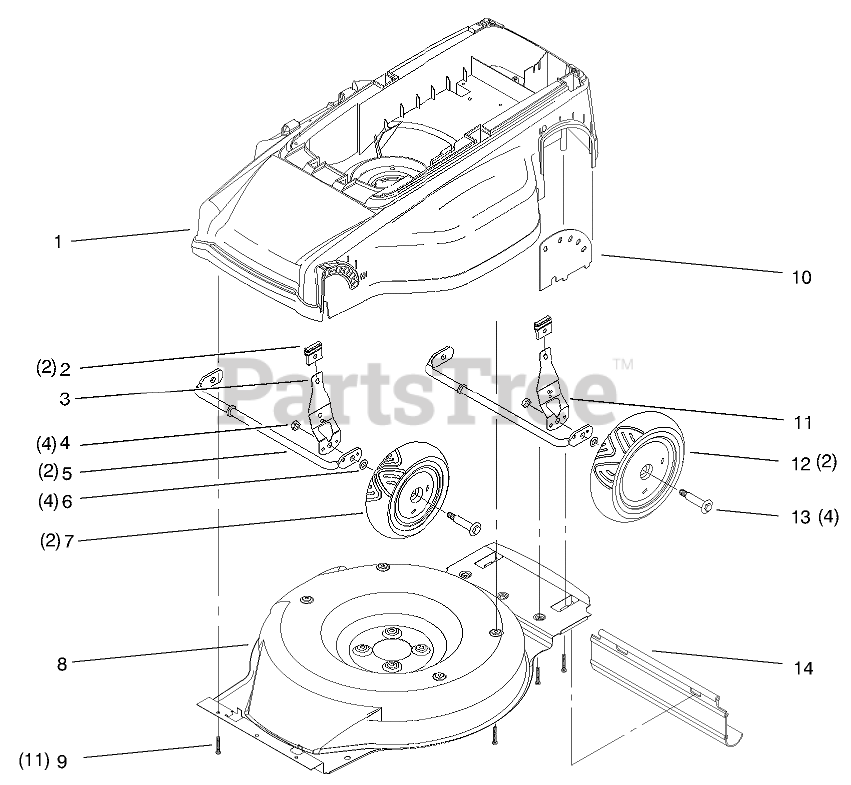

20645 - Toro Carefree Electric Walk-Behind Mower, 120V AC (SN: 079000001 - 079999999) (1997) > Parts Diagrams (5) > DECK, LINER AND WHEEL ASSEMBLY

  • Title
94-3895

1

DECK ASM

Part# 94-3895

OEM Warranty Repair Part for Toro

Not available

92-1008

2

KNOB-LEVER, HEIGHT ADJUSTMENT

Part# 92-1008

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.35

94-3870

3

LEVER ASM-HOC, FRONT

Part# 94-3870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.10

610358

4

NUT-JAM, LOCKING

Part# 610358

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

93-3952

5

AXLE

Part# 93-3952

OEM Warranty Repair Part for Toro

Not available

40-1940

6

WASHER

Part# 40-1940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

92-9586

7

WHEEL ASM

Part# 92-9586

OEM Warranty Repair Part for Toro

Not available

94-3897

8

ASM - LINER

Part# 94-3897

OEM Warranty Repair Part for Toro

Not available

93-3985

9

SCREW - PPH

Part# 93-3985

OEM Warranty Repair Part for Toro

Not available

93-3955

10

PLATE - HOC

Part# 93-3955

OEM Warranty Repair Part for Toro

Not available

94-3871

11

LEVER ASM-HOC, REAR

Part# 94-3871

OEM Warranty Repair Part for Toro

Not available

93-0344

12

WHEEL ASM

Part# 93-0344

OEM Warranty Repair Part for Toro

Not available

92-1057

13

BOLT-SHOULDER

Part# 92-1057

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.15

93-3976

14

SHIELD - TRAILING

Part# 93-3976

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.87
