20645 - Toro Carefree Electric Walk-Behind Mower, 120V AC (SN: 079000001 - 079999999) (1997)

Carefree Electric Walk-Behind Mower, 120V AC

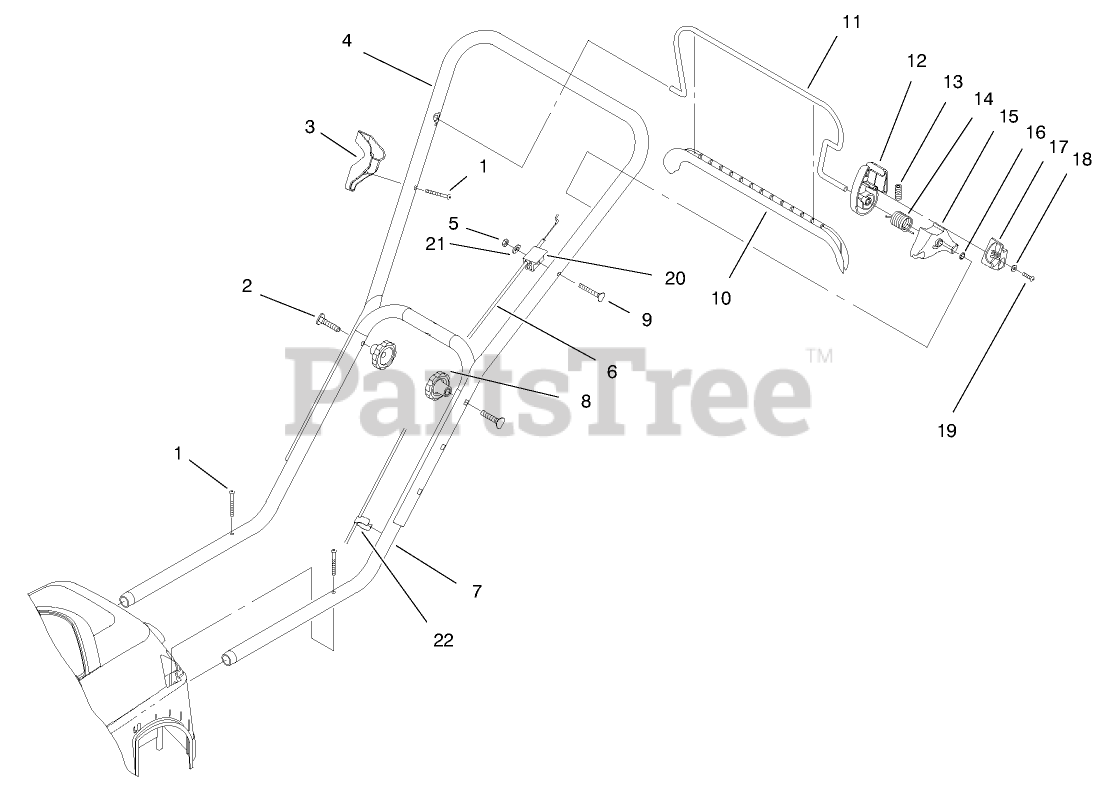

20645 - Toro Carefree Electric Walk-Behind Mower, 120V AC (SN: 079000001 - 079999999) (1997) > Parts Diagrams (5) > HANDLE AND CONTROLS ASSEMBLY

  • Title
93-3986

1

SCREW-PPH

Part# 93-3986

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.95

92-2260

2

SCREW-HANDLE

Part# 92-2260

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.92

93-3996

3

LOCK - CORD

Part# 93-3996

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.68

93-3971

4

Handle-Upper

Part# 93-3971 (Superseded to 93-3971-05)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.94

3296-8

5

NUT-HEX

Part# 3296-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

93-3978

6

CABLE - CONTROL

Part# 93-3978

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $32.34

93-3972

7

Handle-Lower

Part# 93-3972 (Superseded to 93-3972-05)

OEM Warranty Repair Part for Toro

Not available

19-4050

8

KNOB

Part# 19-4050

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

92-2269

9

SCREW-HANDLE

Part# 92-2269

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.50

93-3965

10

COVER - BAIL

Part# 93-3965

OEM Warranty Repair Part for Toro

Not available

93-3977

11

BAIL

Part# 93-3977

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $90.03

93-3969

12

HOUSING - BAIL

Part# 93-3969

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.70

94-3851

13

SPRING - COMPRESSION

Part# 94-3851

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.07

94-1154

14

SPRING - BAIL

Part# 94-1154

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.82

93-3967

15

CAM

Part# 93-3967

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.94

94-1191

16

NUT - PUSH

Part# 94-1191

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.08

93-3968

17

SLIDE

Part# 93-3968

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.27

94-3868

18

WASHER - FLAT

Part# 94-3868

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

94-4496

19

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

94-7407

20

SUPPORT - CABLE

Part# 94-7407

OEM Warranty Repair Part for Toro

Not available

3256-2

21

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.45

94-7409

22

CLIP - CABLE

Part# 94-7409

OEM Warranty Repair Part for Toro

Not available

17-3239

Loose Part Kit

Part# 17-3239

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available
