20645 - Toro Carefree Electric Walk-Behind Mower, 120V AC (SN: 079000001 - 079999999) (1997)

Carefree Electric Walk-Behind Mower, 120V AC

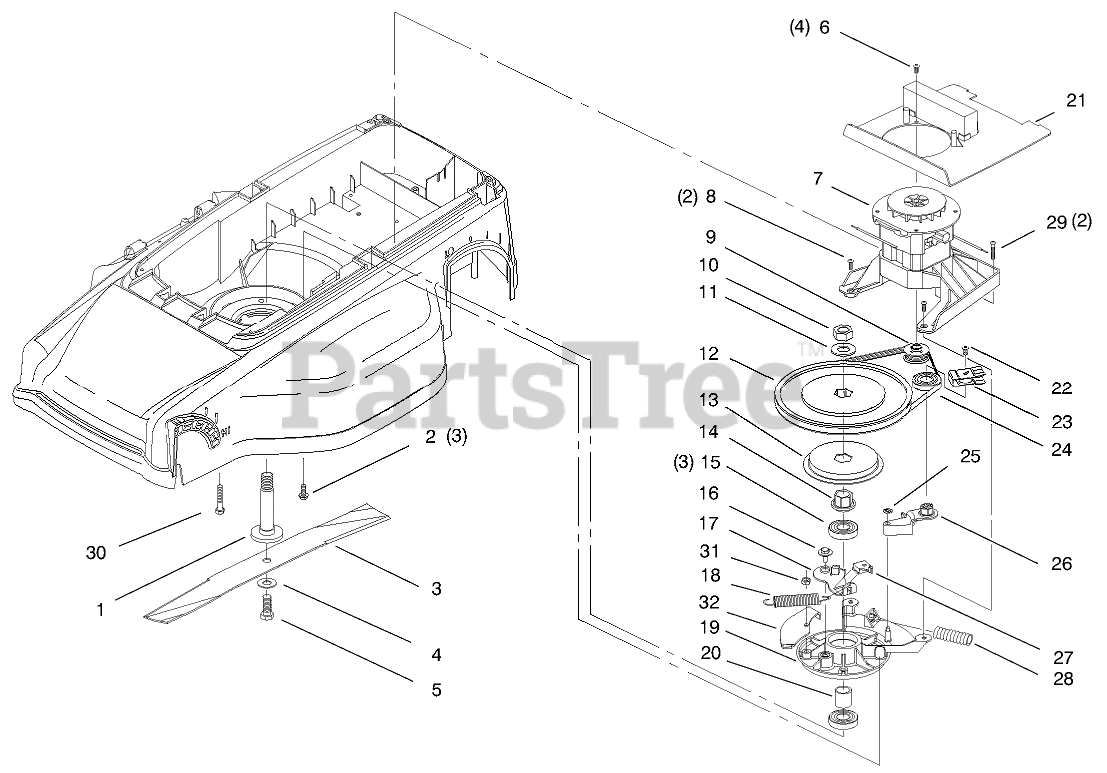

20645 - Toro Carefree Electric Walk-Behind Mower, 120V AC (SN: 079000001 - 079999999) (1997) > Parts Diagrams (5) > MOTOR AND BLADE ASSEMBLY

  • Title
93-3329

1

SHAFT - SPINDLE

Part# 93-3329

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.79

32144-44

2

SCREW-HWH, THREAD ROLL

Part# 32144-44

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.13

93-3954

3

Blade

Part# 93-3954 (Superseded to 93-3954-03)

OEM Warranty Repair Part for Toro

Not available

3290-465

4

WASHER-BELLEVILLE

Part# 3290-465

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

26-0671

5

SCREW-HH

Part# 26-0671

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.63

94-4496

6

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

94-6917

7

MOTOR ASM

Part# 94-6917

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $515.81

32144-8

8

SCREW-PPHTF

Part# 32144-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.92

93-3331

9

PULLEY - MOTOR

Part# 93-3331

OEM Warranty Repair Part for Toro

Not available

3219-6

10

NUT-HEX

Part# 3219-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.99

3256-27

11

WASHER-FLAT

Part# 3256-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

93-3321

12

PULLEY - DRIVEN

Part# 93-3321

OEM Warranty Repair Part for Toro

Not available

93-3328

13

DRUM - BRAKE

Part# 93-3328

OEM Warranty Repair Part for Toro

Not available

93-3330

14

HUB - PULLEY

Part# 93-3330

OEM Warranty Repair Part for Toro

Not available

61-8780

15

Bearing-Ball

Part# 61-8780 (Superseded to 38-7820)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

92-9698

16

SCREW-SHOULDER

Part# 92-9698

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.70

93-3991

17

LEVER ASM-BRAKE

Part# 93-3991

OEM Warranty Repair Part for Toro

Not available

93-3995

18

SPRING - BRAKE SWITCH

Part# 93-3995

OEM Warranty Repair Part for Toro

Not available

93-3325

19

SPINDLE

Part# 93-3325

OEM Warranty Repair Part for Toro

Not available

93-3980

20

SPACER - BEARING

Part# 93-3980

OEM Warranty Repair Part for Toro

Not available

94-3873

21

BAFFLE ASM

Part# 94-3873

OEM Warranty Repair Part for Toro

Not available

94-6961

22

SCREW

Part# 94-6961

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.77

94-3866

23

GUIDE - BELT

Part# 94-3866

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.42

93-3989

24

BELT - POLY V

Part# 93-3989

OEM Warranty Repair Part for Toro

Not available

93-3988

25

PUSHNUT-TINNERMAN

Part# 93-3988 (Superseded to 32151-106)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.48

93-3323

26

IDLER ARM

Part# 93-3323

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.27

93-3322

27

MOUNT - CABLE

Part# 93-3322

OEM Warranty Repair Part for Toro

Not available

61-8880

28

SPRING

Part# 61-8880

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

93-3985

29

SCREW - PPH

Part# 93-3985

OEM Warranty Repair Part for Toro

Not available

32144-110

30

SCREW-HWH

Part# 32144-110

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

3296-56

31

NUT-LOCK, NI

Part# 3296-56

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

94-9155

32

BRACKET - SPRING

Part# 94-9155

OEM Warranty Repair Part for Toro

Not available
