20647 - Toro Carefree Electric Walk-Behind Mower, 24V DC (SN: 079000001 - 079999999) (1997) Deck, Liner And Wheel Assembly Parts Diagram

Carefree Electric Walk-Behind Mower, 24V DC

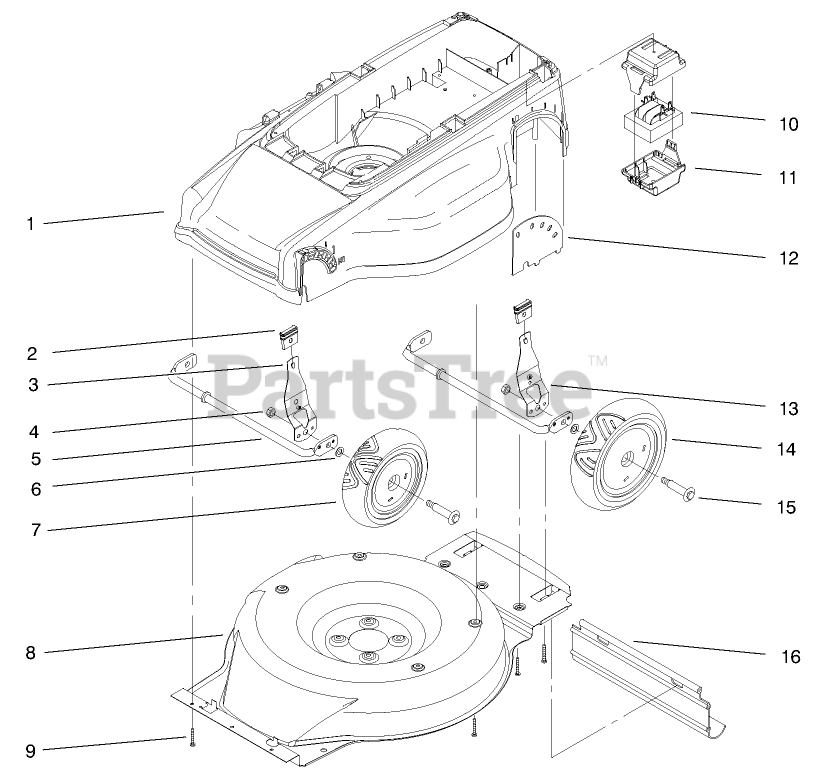

Deck, Liner And Wheel Assembly Parts Diagram

  • Title

1

Toro 94-3895

DISCONTINUED

$

$

Not available

2

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$15.99

$

Usually ships in 3-6 days

0

3

Toro 94-3870

LEVER ASM-HOC, FRONT

$

$

Not available

4

Toro 610358

NUT-JAM, LOCKING

$2.99

$

In Stock, Qty 6

0

5

Toro 93-3952

AXLE

$

$

Not available

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

7

Toro 92-9586

DISCONTINUED

$

$

Not available

8

Toro 94-3897

DISCONTINUED

$

$

Not available

9

Toro 93-3985

SCREW - PPH

$

$

Not available

10

Toro 93-3332

TRANSFORMER

$

$

Not available

11

Toro 93-3343

See Supercession: 104-0232
(Superseded to 104-0232)

$

$

Not available

12

Toro 93-3955

PLATE - HOC

$

$

Not available

13

Toro 94-3871

LEVER ASM-HOC, REAR

$

$

Not available

14

Toro 93-0344

DISCONTINUED

$

$

Not available

15

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

16

Toro 94-7417

See Supercession: 93-3976
(Superseded to 93-3976)

$21.99

$

Usually ships in 3-6 days

0
