20649 - Toro Carefree Electric Walk-Behind Mower, 36V DC (SN: 069000001 - 069999999) (1996)

Carefree Electric Walk-Behind Mower, 36V DC

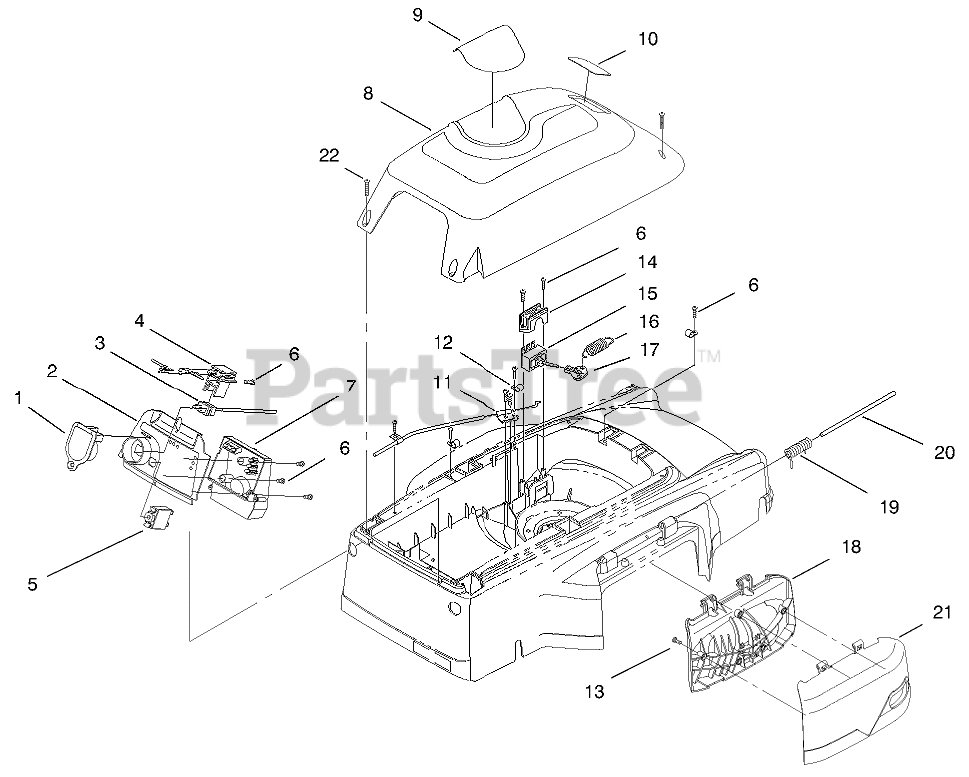

20649 - Toro Carefree Electric Walk-Behind Mower, 36V DC (SN: 069000001 - 069999999) (1996) > Parts Diagrams (5) > COVER, MULCH PLUG AND PANEL ASSEMBLY

  • Title
93-3950

1

KEY

Part# 93-3950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.63

94-3881

2

ASM-Panel

Part# 94-3881 (Superseded to 104-0236)

OEM Warranty Repair Part for Toro

Not available

93-3981

3

PLUG ASM

Part# 93-3981

OEM Warranty Repair Part for Toro

Not available

93-3344

4

HOUSING - PLUG

Part# 93-3344

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.82

93-3982

5

CIRCUIT BREAKER

Part# 93-3982

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.47

94-4496

6

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

94-6921

7

ASM - CIRCUIT BOARD 36V

Part# 94-6921 (Superseded to 104-0249)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $311.81

94-6914

8

ASM - COVER TORO 36V

Part# 94-6914

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $117.31

94-3859

9

DECAL - COVER 36V TORO

Part# 94-3859

OEM Warranty Repair Part for Toro

Not available

92-2289

10

PLATE-LOGO

Part# 92-2289 (Superseded to 98-3206)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.32

93-3975

11

BRACKET - CABLE

Part# 93-3975

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.09

94-1194

12

CLIP - WIRE

Part# 94-1194

OEM Warranty Repair Part for Toro

Not available

94-6961

13

SCREW

Part# 94-6961

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.77

93-3345

14

CLAMP - SWITCH, TOGGLE

Part# 93-3345

OEM Warranty Repair Part for Toro

Not available

93-3970

15

SWITCH - TOGGLE

Part# 93-3970

OEM Warranty Repair Part for Toro

Not available

93-3999

16

SPRING - SWITCH

Part# 93-3999

OEM Warranty Repair Part for Toro

Not available

93-3346

17

COVER LEVER-SWITCH

Part# 93-3346

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.14

93-3956

18

OBS MULCH PLUG - INSIDE

Part# 93-3956

OEM Warranty Repair Part for Toro

Not available

94-3865

19

SPRING - TORSION

Part# 94-3865

OEM Warranty Repair Part for Toro

Not available

93-3990

20

PIN - HINGE, MULCH PLUG

Part# 93-3990

OEM Warranty Repair Part for Toro

Not available

93-3957

21

MULCH PLUG - OUTSIDE

Part# 93-3957 (Superseded to 94-1164)

OEM Warranty Repair Part for Toro

Not available

93-3986

22

SCREW-PPH

Part# 93-3986

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.95
