20650 - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 099000001 - 099999999) (1999)

Carefree Recycler Electric Walk-Behind Mower

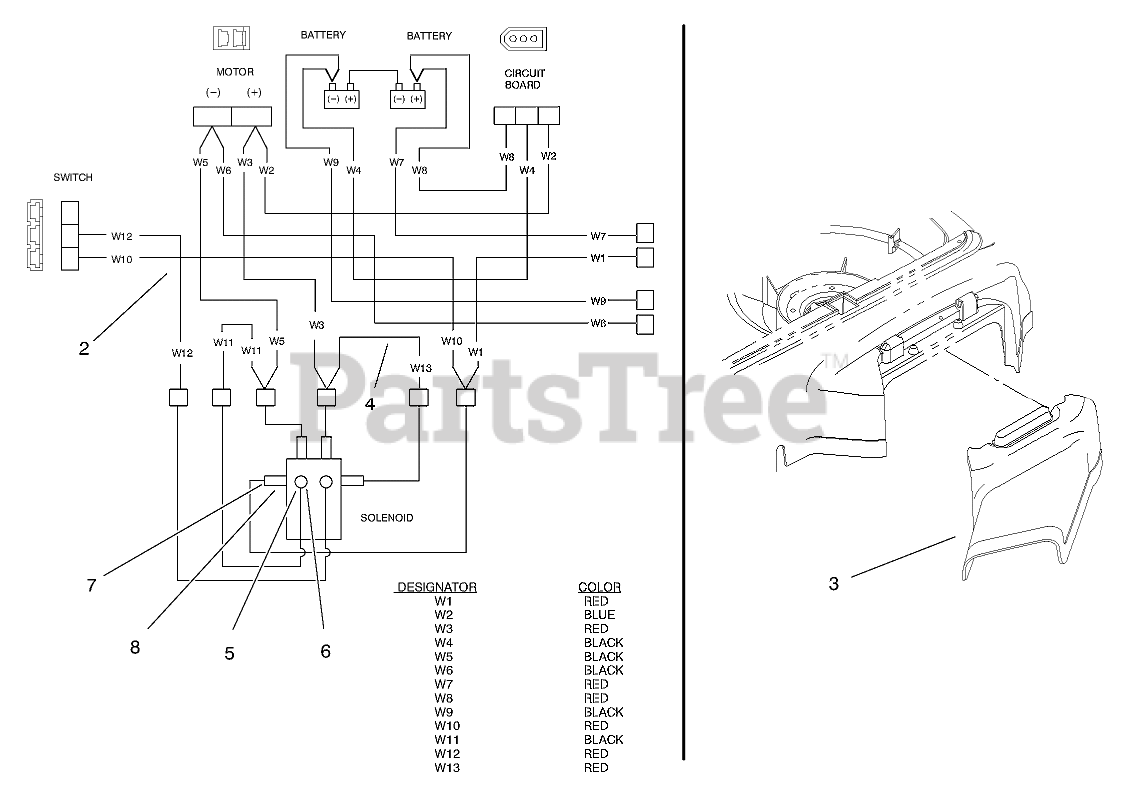

20650 - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 099000001 - 099999999) (1999) > Parts Diagrams (5) > ELECTRICAL WIRING DIAGRAM AND SIDE DISCHARGE CHUTE

  • Title
95-5158

1

DECAL - POSITIVE

Part# 95-5158

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

95-5048

2

Harness-Wire (Incl. W1-W12)

Part# 95-5048

OEM Warranty Repair Part for Toro

Not available

93-3963

3

CHUTE - SIDE

Part# 93-3963

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.52

95-3254

4

Harness-Wire (Incl. W13)

Part# 95-3254

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.68

3219-27

5

NUT-HJ

Part# 3219-27

OEM Warranty Repair Part for Toro

Not available

3253-25

6

WASHER-LOCK

Part# 3253-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.94

3220-2

7

NUT-JAM

Part# 3220-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.04

3253-4

8

WASHER-LOCK

Part# 3253-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

95-5159

9

DECAL - NEGATIVE

Part# 95-5159

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available
