20650 - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 099000001 - 099999999) (1999)

Carefree Recycler Electric Walk-Behind Mower

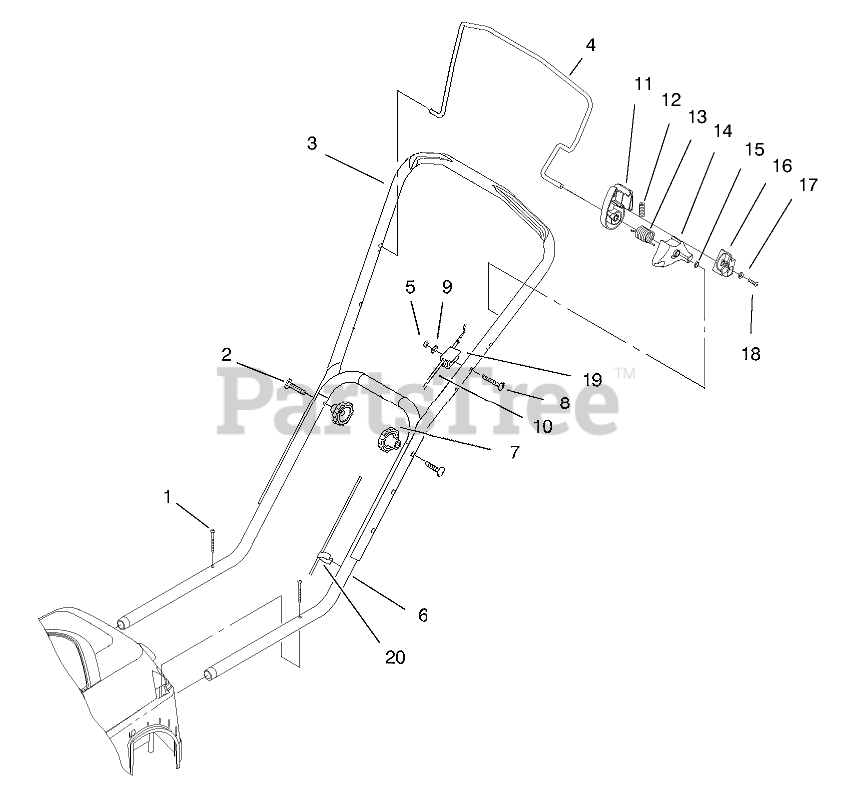

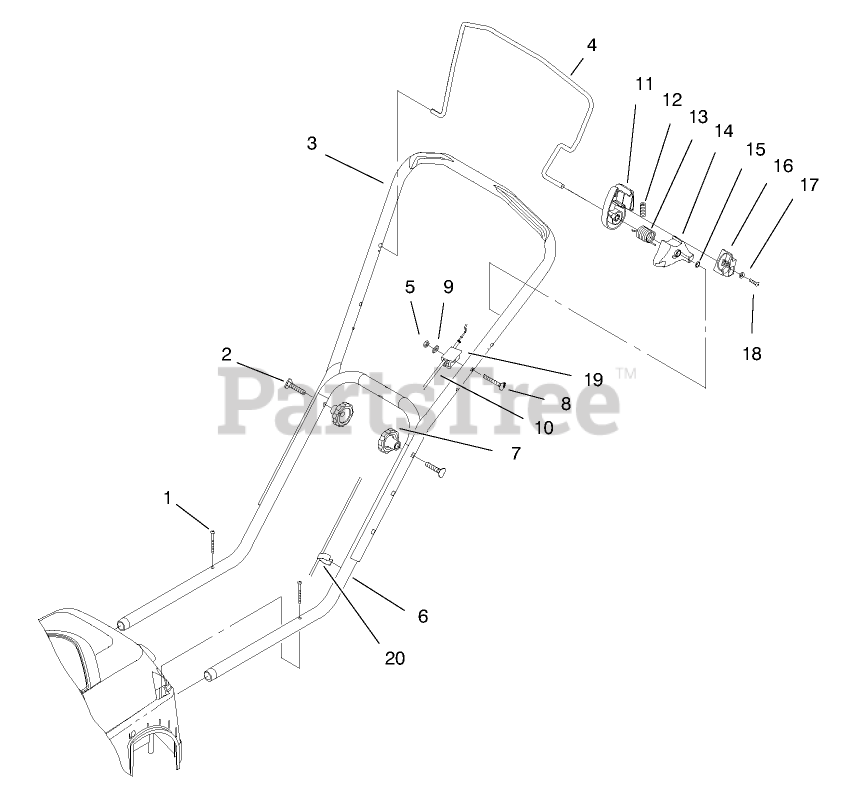

20650 - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 099000001 - 099999999) (1999) > Parts Diagrams (5) > HANDLE ANAD CONTROLS ASSEMBLY

  • Title
93-3986

1

SCREW-PPH

Part# 93-3986

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.95

92-2260

2

SCREW-HANDLE

Part# 92-2260

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.92

95-2742

3

Handle-Upper

Part# 95-2742 (Superseded to 95-2742-05)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.10

95-3000

4

Bail-Comfort Grip

Part# 95-3000 (Superseded to 95-3000-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.70

3296-8

5

NUT-HEX

Part# 3296-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

93-3972

6

Handle-Lower

Part# 93-3972 (Superseded to 93-3972-05)

OEM Warranty Repair Part for Toro

Not available

19-4050

7

KNOB

Part# 19-4050

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

92-2269

8

SCREW-HANDLE

Part# 92-2269

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.50

3256-2

9

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.45

93-3978

10

CABLE - CONTROL

Part# 93-3978

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $32.34

93-3969

11

HOUSING - BAIL

Part# 93-3969

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.70

94-3851

12

SPRING - COMPRESSION

Part# 94-3851

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.07

94-1154

13

SPRING - BAIL

Part# 94-1154

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.82

93-3967

14

CAM

Part# 93-3967

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.94

94-1191

15

NUT - PUSH

Part# 94-1191

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.08

93-3968

16

SLIDE

Part# 93-3968

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.27

94-3868

17

WASHER - FLAT

Part# 94-3868

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

94-4496

18

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

94-7407

19

SUPPORT - CABLE

Part# 94-7407

OEM Warranty Repair Part for Toro

Not available

94-7409

20

CLIP - CABLE

Part# 94-7409

OEM Warranty Repair Part for Toro

Not available

17-3249

Loose Part Kit

Part# 17-3249

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available
