20651 - Toro 51cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

51cm Recycler Walk-Behind Mower

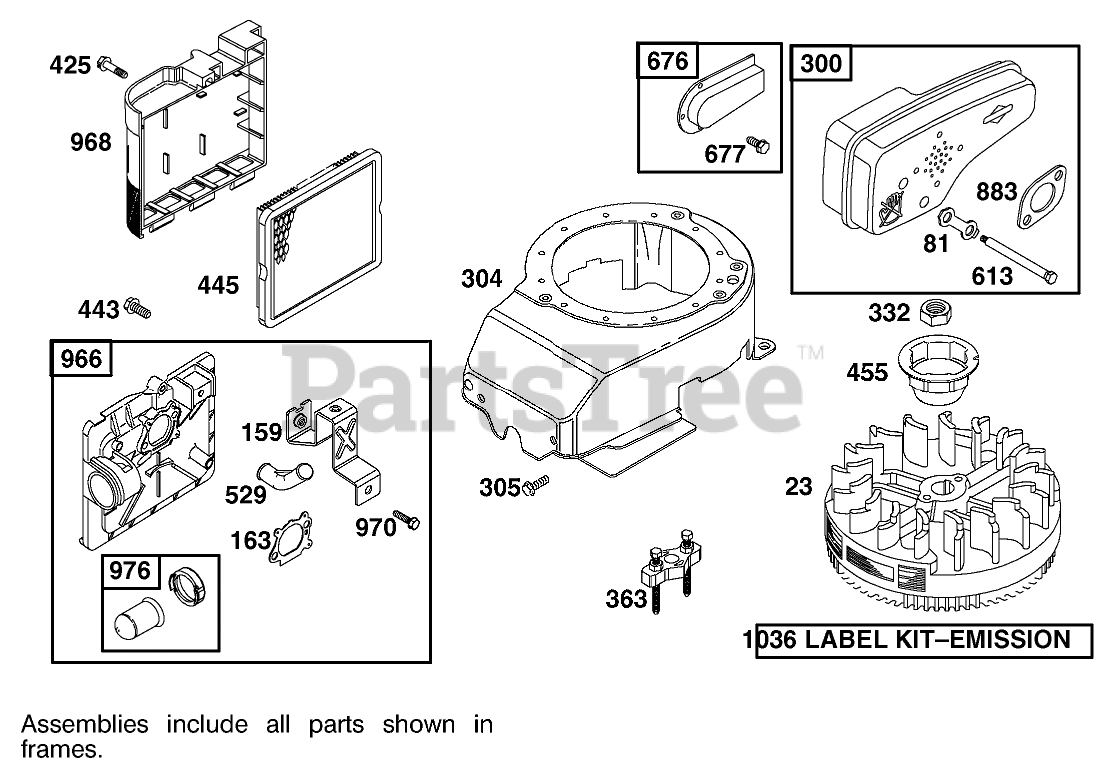

ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

  • Title
23
Usually ships same day

Currently unavailable

$

$

81

Briggs & Stratton Part# 223664

Lock-Muffler Screw
(Superseded to 691740)
Usually ships in 1 day

$

$4.13

0

159

Briggs & Stratton Part# 224815

Strap-Bracket
(Superseded to 795259)
Usually ships in 1 day

$

$27.38

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-See Ref. 977

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-See Ref. 121.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-See Ref. 358.

Usually ships in 1 day

$

$3.46

0

300

Briggs & Stratton Part# 497838

Muffler-Exhaust
(Superseded to 692038)
Usually ships in 6 to 12 days

$

$26.26

0

304

Briggs & Stratton Part# 493293

Housing-Blower
(Superseded to 795071)
Usually ships in 1 day

$

$79.37

0

305

Briggs & Stratton Part# 94744

Screw-Hex
(Superseded to 691108)
Usually ships in 1 day

$

$3.01

0

332

Briggs & Stratton Part# 92284

Nut
(Superseded to 690662)
Usually ships in 1 day

$

$4.80

0

363
Usually ships in 6 to 12 days

$

$19.35

0

425

Briggs & Stratton Part# 94872

Screw(A/C Cover)
(Superseded to 690670)
Usually ships in 1 day

$

$4.57

0

443

Briggs & Stratton Part# 94873

Screw-Hex.
(Superseded to 692523)
Usually ships in 1 day

$

$5.58

0

445

Briggs & Stratton Part# 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)
Usually ships in 1 day

$

$6.59

0

455

Briggs & Stratton Part# 691219

Cup-Flywheel
(Superseded to 695161)
Usually ships in 6 to 12 days

$

$29.06

0

529

Briggs & Stratton Part# 281299

Grommet
(Superseded to 691923)
Usually ships in 1 day

$

$7.37

0

613

Briggs & Stratton Part# 94231

Screw-Shoulder
(Superseded to 691340)
Usually ships in 1 day

$

$4.13

0

676

Briggs & Stratton Part# 493871

Deflector-Muffler
Usually ships in 6 to 12 days

$

$11.62

0

677

Briggs & Stratton Part# 94896

Screw
(Superseded to 690661)
Usually ships in 1 day

$

$3.01

0

883

Briggs & Stratton Part# 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

Usually ships in 1 day

$

$6.92

0

883

Briggs & Stratton Part# 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Gasket Set-See Ref. 358.

Usually ships in 1 day

$

$6.92

0

966

Briggs & Stratton Part# 496116

Base-Primer, Air Cleaner
(Superseded to 795259)
Usually ships in 1 day

$

$27.38

0

968

Briggs & Stratton Part# 281340

Air Cleaner Cover
(Superseded to 692298)
Usually ships in 1 day

$

$21.12

0

970

Briggs & Stratton Part# 94749

Screw-Hex.
(Superseded to 691669)
Usually ships in 1 day

$

$3.12

0

976

Briggs & Stratton Part# 496115

CarburetorPrimer
(Superseded to 694395)
Usually ships in 1 day

$

$3.90

0

1036
Usually ships in 1 day

$

$3.25

0
