20651 - Toro 51cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) GEAR CASE ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

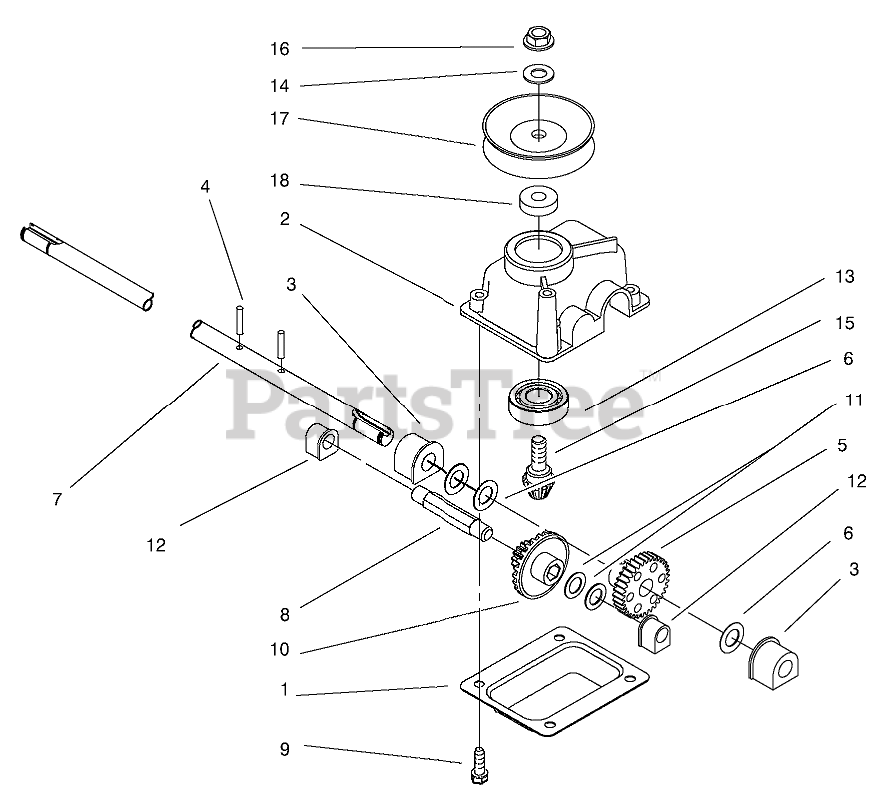

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 614668-03

COVER-CASE, GEAR
Usually ships in 1 day

$

$6.51

0

2

Toro Part# 92-7727

Gearcase
(Superseded to 104-7619)
Usually ships in 1 day

$

$31.53

0

3
Usually ships in 5 to 8 days

$

$5.79

0

4

Toro Part# 3285-19

PIN-GROOVE
Usually ships in 1 day

$

$1.59

0

Usually ships in 1 day

$

$37.93

0

6

Toro Part# 36-4780

WASHER-PLAIN
Usually ships in 1 day

$

$5.86

0

7

Toro Part# 93-0239

Shaft-Output
(Superseded to 104-7670)
Usually ships in 1 day

$

$99.55

0

8

Toro Part# 614696

SHAFT-INTERMEDIATE
Usually ships in 5 to 8 days

$

$77.12

0

9

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

10

Toro Part# 55-3760

Gear-Bevel
(Superseded to 104-7668)
Usually ships in 1 day

$

$24.60

0

11

Toro Part# 36-4791

WASHER-THRUST
Usually ships in 1 day

$

$0.94

0

12
Usually ships in 1 day

$

$4.87

0

13

Toro Part# 38-7820

BEARING-BALL
Usually ships in 1 day

$

$11.17

0

14

Toro Part# 3256-24

WASHER-FLAT
Usually ships in 1 day

$

$0.58

0

15

Toro Part# 60-8890

Gear-Pinion
(Superseded to 104-7667)
Usually ships in 1 day

$

$12.87

0

16
Usually ships in 1 day

$

$2.90

0

17

Toro Part# 100-1176

PULLEY-HALF
Usually ships in 1 day

$

$6.85

0

18
Usually ships in 1 day

$

$0.86

0
