20654 - Toro 50cm Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 122K02-0172-E1 Parts Diagram

50cm Recycler Walk-Behind Mower

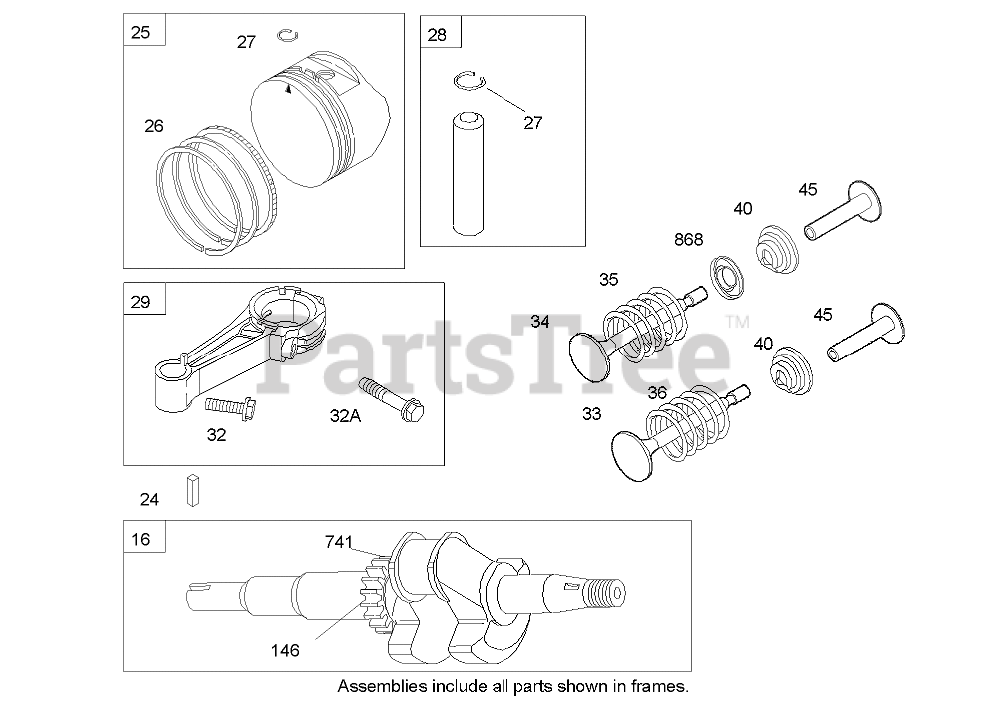

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 122K02-0172-E1 Parts Diagram

  • Title
16

Briggs & Stratton Part# 696009

Crankshaft
(Superseded to 590807)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$139.74

0

24

Briggs & Stratton Part# 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$2.67

0

25

Briggs & Stratton Part# 697339

Piston ASM (Standard)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$72.66

0

Briggs & Stratton Part# 697341

Piston ASM (.020in Oversize)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$95.02

0

26

Briggs & Stratton Part# 499425

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$26.82

0

Briggs & Stratton Part# 499427

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$40.80

0

27

Briggs & Stratton Part# 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.68

0

28

Briggs & Stratton Part# 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$7.14

0

Briggs & Stratton Part# 298908

Pin-Piston (.005 Undersize)

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

29

Briggs & Stratton Part# 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$69.31

0

32

Briggs & Stratton Part# 691664

Screw

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.68

0

32A

Briggs & Stratton Part# 695759

Screw

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.79

0

33

Briggs & Stratton Part# 262651

Valve-Exhaust
(Superseded to 590394)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$19.00

0

34

Briggs & Stratton Part# 262652

Valve-Intake
(Superseded to 590393)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$17.32

0

35

Briggs & Stratton Part# 691270

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.13

0

36

Briggs & Stratton Part# 691270

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.13

0

40

Briggs & Stratton Part# 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.80

0

45

Briggs & Stratton Part# 690548

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$7.59

0

146

Briggs & Stratton Part# 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.01

0

741

Briggs & Stratton Part# 691830

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$13.74

0

868

Briggs & Stratton Part# 697338

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$10.27

0
