20655 - Toro 55cm Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ENGINE AND BLADE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

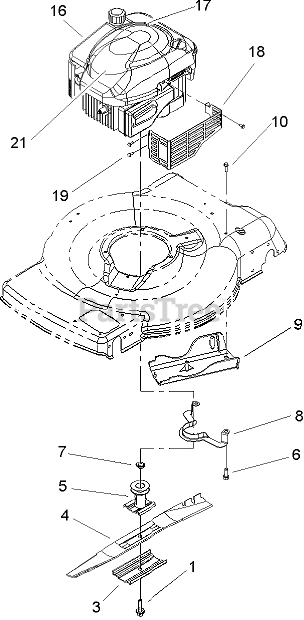

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 105-8579

BOLT-BLADE
(Superseded to 125-2466)
Usually ships in 1 day

$

$2.23

0

3

Toro Part# 105-6848-03

Accelerator-Blade
Usually ships in 1 day

$

$14.68

0

4

Toro Part# 104-8697-03

BLADE-22 INCH
(Superseded to 131-4547-03)
Usually ships in 1 day

$

$24.59

0

5

Toro Part# 106-3987

DRIVER-BLADE
Usually ships in 1 day

$

$27.94

0

6

Toro Part# 95-1726

SCREW-TAPTITE
Usually ships in 1 day

$

$1.61

0

7

Toro Part# 106-3999

Spacer-Driver
Usually ships in 1 day

$

$2.73

0

8
Usually ships in 1 day

$

$12.07

0

9

Toro Part# 105-1835

Cover-Belt, Rear
Usually ships in 1 day

$

$12.48

0

10

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

16

Part#

ENGINE-QUANTUM BRIGGS AND STRATTON MODEL NO. 122K05-0171-E1

Note: Not serviced separately

Usually ships same day

Not available

$

$

17
Usually ships in 5 to 8 days

$

$5.89

0

18

Toro Part# 104-7577-03

SHIELD-MUFFLER
Usually ships in 5 to 8 days

$

$20.62

0

19

Toro Part# 32144-1

SCREW-TAPTITE
Usually ships in 1 day

$

$2.23

0

21

Toro Part# 107-3748

DECAL-RECOIL
Usually ships in 5 to 8 days

$

$9.19

0
