20661 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Engine Briggs Stratton Model No. 110908-1204-01 Parts Diagram

Walk-Behind Mower

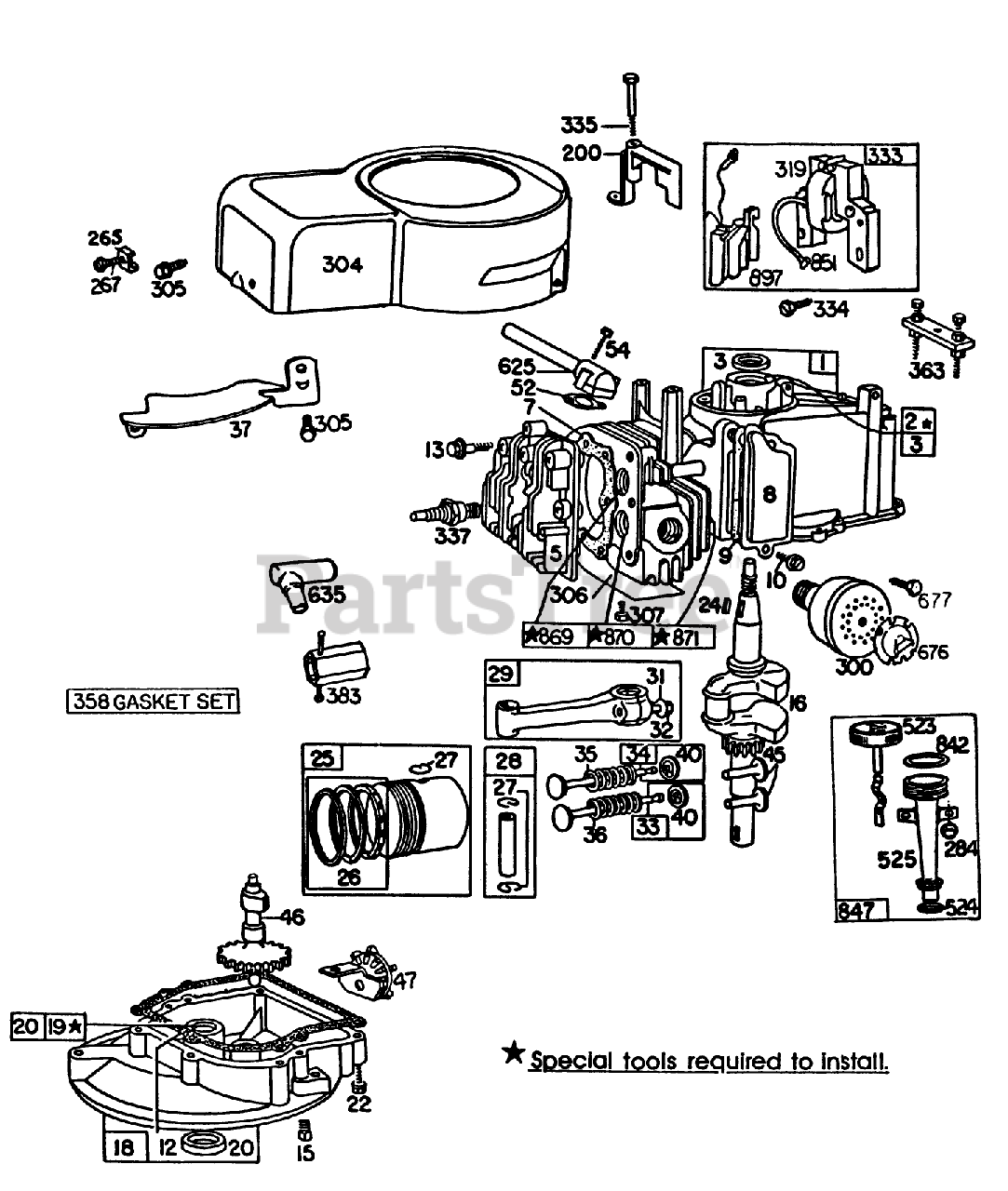

Engine Briggs Stratton Model No. 110908-1204-01 Parts Diagram

  • Title

1

Toro 395958

Cylinder Assembly

$

$

Currently unavailable

2

Toro 293708

Bushing

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

$

$

Currently unavailable

5

Toro 211851

Head-Cylinder

$

$

Currently unavailable

7

Toro 270836

Gasket-Cylinder Hd,

Note: Included in Gasket Set-Part No 391662.

$

$

Currently unavailable

8

Toro 298383

Breather-Valve

$

$

Currently unavailable

9

Toro 270239

Gasket Valve Cover

Note: Included in Gasket Set-Part No 391662.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Included in Gasket Set-Part No 391662.

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No 391662.

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No 391662.

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15

Toro 93418

Plug

$

$

Currently unavailable

16

Toro 261641

Crankshaft

$

$

Currently unavailable

18

Toro 395382

Sump-Oil

$

$

Currently unavailable

19

Toro 293709

Bushing-Oil Base

$

$

Currently unavailable

20

Toro 391483

Seal-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 391650

Piston Assembly-Std.

$

$

Currently unavailable

Toro 391651

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 391652

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 391653

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 391654

Ring Set-Std.Piston

$

$

Currently unavailable

Toro 391656

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Toro 391658

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Toro 391660

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 391649

Pin Assembly-Piston-Std.

$

$

Currently unavailable

Toro 394861

Piston Assy. (Std.)

$

$

Currently unavailable

29

Toro 391640

Rod Assembly-Connecting

$

$

Currently unavailable

31

Toro 222282

DISCONTINUED

$

$

Not available

32

Toro 93670

Screw-Connecting Rod

$

$

Currently unavailable

33

Toro 212004

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261233

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

37

Toro 223150

Guard-Flywheel

$

$

Currently unavailable

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 261250

Tappet-Valve

$

$

Currently unavailable

46

Toro 395856

Gear-Cam

$

$

Currently unavailable

47

Toro 294652

Oil Slinger Gear Bracket

$

$

Currently unavailable

52

Toro 270844

Gasket Intake Elbow

Note: Included in Gasket Set-Part No 391662.

$

$

Currently unavailable

54

Toro 93485

Screw Intake Elbow Mtg.

$

$

Currently unavailable

200

Toro 68388

Blade Governor

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

284

Toro 93984

Screw

$

$

Currently unavailable

300

Toro 394569

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 396262

Housing-Blower

$

$

Currently unavailable

305

Toro 93559

Screw

$

$

Currently unavailable

306

Toro 222394

DISCONTINUE-DESA

$

$

Not available

307

Toro 93490

Screw

$

$

Currently unavailable

319

Toro 395488

Armature-Magneto

$

$

Currently unavailable

333

Toro 395489

Armature-Group

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

335

Toro 93435

Screw-Armature Governor Blade

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

358

Toro 391662

Gasket Set

$

$

Currently unavailable

363

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

523

Toro 391838

Cap with Dipstick-Oil Filler

$

$

Currently unavailable

524

Toro 271485

Seal-O-Ring

$

$

Currently unavailable

525

Toro 280382

Tube-Oil Filler

$

$

Currently unavailable

625

Toro 391377

Tube-Fuel Intake

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

676

Toro 393756

Deflector-Muffler

$

$

Currently unavailable

677

Toro 93705

Screw

$

$

Currently unavailable

842

Toro 270920

O-Ring

$

$

Currently unavailable

847

Toro 395869

Filler Group-Oil

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable

897

Toro 394970

Trigger Coil

$

$

Currently unavailable
