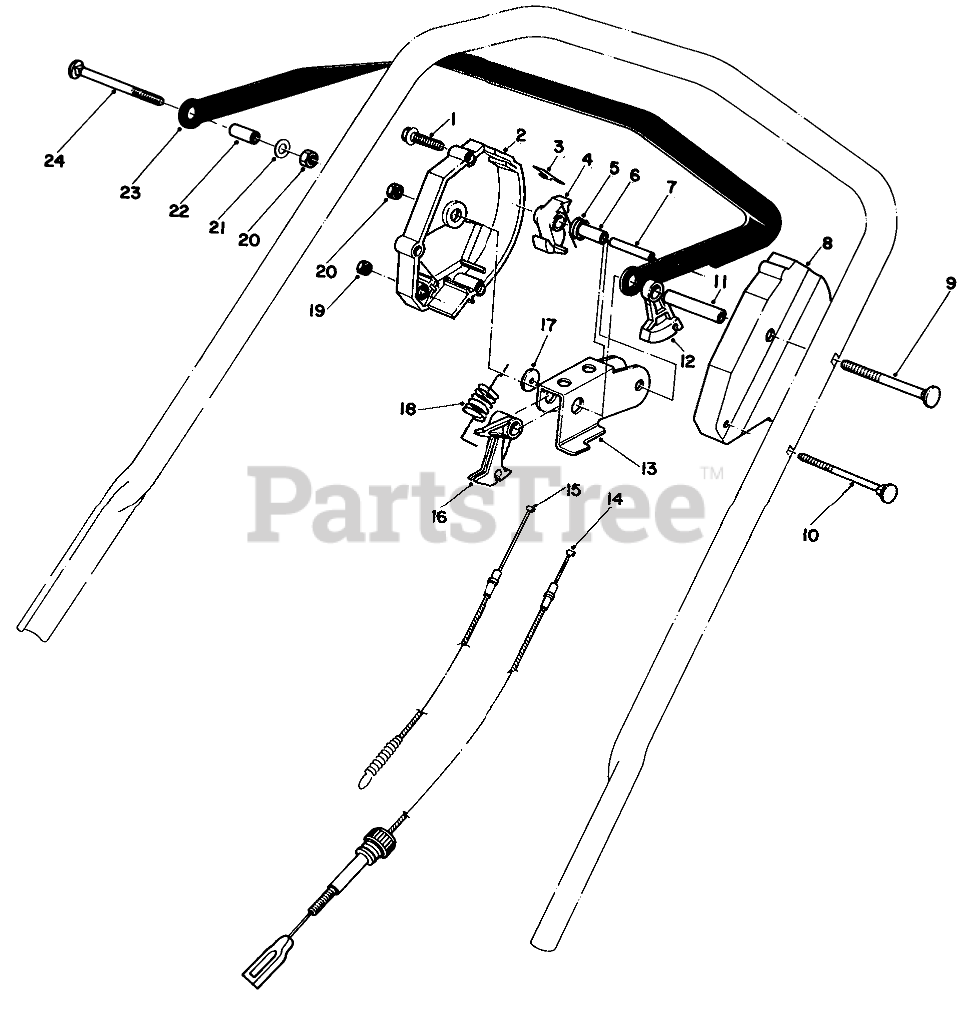

20661 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 46-5450

Housing Control R.H.
(Superseded to 12-3429)

$

$

Not available

3

Toro 46-5570

LEAF SPRING

$

$

Not available

4

Toro 46-5530

HOOK-CONTROL

$

$

Not available

5

Toro 46-5510

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

6

Toro 46-5550

SPACER

$

$

Not available

7

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, Qty 18

0

8

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

9

Toro 17-9422

5/16-18 X 3 HNDLE SCREW

$

$

Not available

10

Toro 46-6431

HANDLE SCREW

$

$

Not available

11

Toro 46-5590

TUBING-SPACER

$

$

Not available

12

Toro 46-5520

LEVER-TRACTION

$

$

Not available

13

Toro 46-5490

Rocker
(Superseded to 62-3710)

$

$

Not available

14

Toro 46-5480

TRACTION CABLE

$112.99

$

Usually ships in 3-6 days

0

15

Toro 46-5470

Cable-Clutch
(Superseded to 83-6600)

$

$

Not available

16

Toro 46-5540

LEVER-CABLE

$20.99

$

In Stock, only 3 left!

0

17

Toro 46-5600

PLASTIC WASHER

$4.49

$

Usually ships in 3-6 days

0

18

Toro 46-5500

Spring-Extension
(Superseded to 65-5990)

$

$

Not available

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 46-5580

Spacer

$

$

Not available

23

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

24

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0
