20665x7A - Scotts 20" Walk-Behind Mower (2000)

20" Walk-Behind Mower

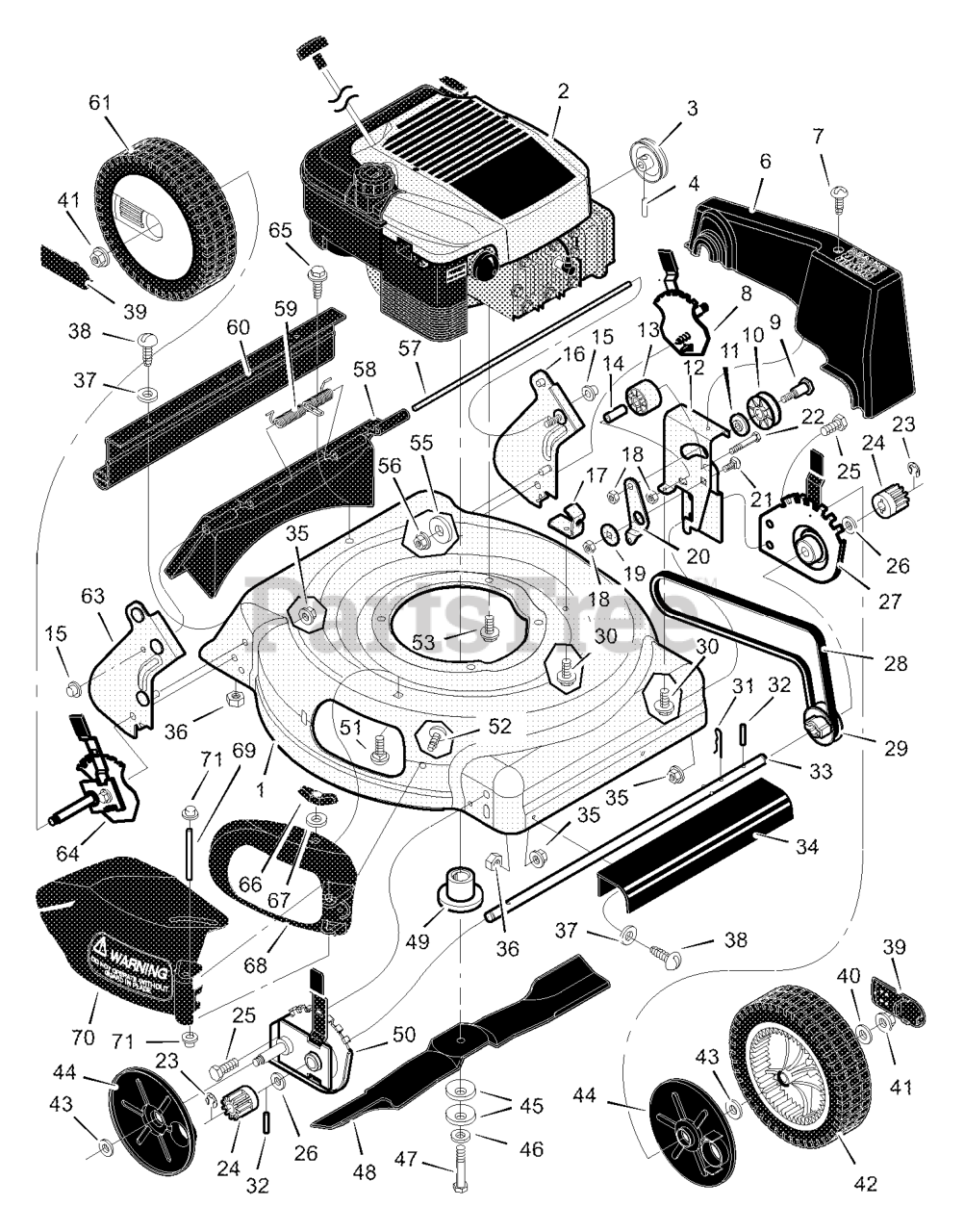

20665x7A - Scotts 20" Walk-Behind Mower (2000) > Parts Diagrams (3) > Mower Housing Assembly

  • Title
776155

1

Housing

Part# 776155

OEM Warranty Repair Part for Murray

Currently unavailable

-----

2

Engine

Part# -----

Not available

071434MA

3

Pulley, Engine

Part# 071434MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $13.71

032X64MA

4

Pin, Spring

Part# 032X64MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

671928

6

Cover, Belt (Black)

Part# 671928

OEM Warranty Repair Part for Murray

Currently unavailable

26X279MA

7

Screw

Part# 26X279MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

672605MA

8

Adjuster, Left Rear Height

Part# 672605MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.38

009X50MA

9

Bolt, Shoulder

Part# 009X50MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

071779MA

10

Pulley

Part# 071779MA

OEM Warranty Repair Part for Murray

Not available

071788MA

11

Spacer

Part# 071788MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

672772  Z

12

Bracket, Idler Support

Part# 672772 Z

OEM Warranty Repair Part for Murray

Currently unavailable

071778MA

13

Pulley, Idler

Part# 071778MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.78

071793MA

14

Bearing

Part# 071793MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.85

028X49MA

15

Nut, Push

Part# 028X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

672889E700

16

Bracket, Left Handle

Part# 672889E700

OEM Warranty Repair Part for Murray

Not available

671934

17

Bracket, Cable

Part# 671934

OEM Warranty Repair Part for Murray

Currently unavailable

015X43MA

18

Nut, Hex

Part# 015X43MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

071789MA

19

Spacer

Part# 071789MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

671936

20

Arm, Idler

Part# 671936

OEM Warranty Repair Part for Murray

Currently unavailable

002X53MA

21

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

001X81MA

22

Bolt, Shoulder

Part# 001X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

011X16MA

23

E-Ring

Part# 011X16MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

071792MA

24

Gear, Pinion

Part# 071792MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.20

001X85MA

25

Bolt

Part# 001X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

17X186MA

26

Washer

Part# 17X186MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.50

672603MA

27

Adjuster, Left Frt. Height

Part# 672603MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $71.75

037X99

28

Belt

Part# 037X99

OEM Warranty Repair Part for Murray

Currently unavailable

071791MA

29

Pulley, Axle

Part# 071791MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $14.35

26X263MA

30

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

0031X9MA

31

Pin, Hair

Part# 0031X9MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

043629MA

32

Pin, Spring

Part# 043629MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

671931MA

33

Axle

Part# 671931MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $46.43

671948

34

Cover, Axle (Black)

Part# 671948

OEM Warranty Repair Part for Murray

Not available

015X68MA

35

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

15X102MA

36

Nut, Hex

Part# 15X102MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

017X38MA

37

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

004X21MA

38

Screw

Part# 004X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

39

UNKNOWN

Part#

Not available

17X169MA

40

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.96

015X84MA

41

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

071133MA

42

Wheel, Drive

Part# 071133MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $37.04

17X120MA

43

Washer

Part# 17X120MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

071780MA

44

Cover, Dust

Part# 071780MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

17X137MA

45

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

46

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X153MA

47

Bolt

Part# 01X153MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.03

672763E701MA

48

Blade

Part# 672763E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $20.48

672503MA

49

Adapter, Blade

Part# 672503MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.69

672602MA

50

Adjuster, Right Frt. Height

Part# 672602MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $71.75

002X16MA

51

Bolt, Carriage

Part# 002X16MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

26X221MA

52

Screw

Part# 26X221MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

0025X6MA

53

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

17X146MA

55

Washer

Part# 17X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.50

015X88MA

56

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

215X17  Z

57

Rod, Pivot

Part# 215X17 Z

OEM Warranty Repair Part for Murray

Currently unavailable

672610

58

Door, Rear (Black)

Part# 672610

OEM Warranty Repair Part for Murray

Not available

166X44MA

59

Spring

Part# 166X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

671970MA

60

Deflector, Rear

Part# 671970MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.15

071132MA

61

Wheel, Rear

Part# 071132MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $26.60

672888E700

63

Bracket, Right Handle

Part# 672888E700

OEM Warranty Repair Part for Murray

Not available

672604MA

64

Adjuster, Right Rear Hgt.

Part# 672604MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.62

26X245MA

65

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

071495MA

66

Wingnut

Part# 071495MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

028X64MA

67

Retainer, Push

Part# 028X64MA

OEM Warranty Repair Part for Murray

Not available

671926

68

Bezel (Black)

Part# 671926

OEM Warranty Repair Part for Murray

Not available

215X18  Z

69

Pin, Pivot

Part# 215X18 Z

OEM Warranty Repair Part for Murray

Currently unavailable

671927

70

Deflector, Chute (Black)

Part# 671927

OEM Warranty Repair Part for Murray

Not available

028X42MA

71

Push On Cap

Part# 028X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

F-000418L

--

Instruction Book

Part# F-000418L

OEM Warranty Repair Part for Murray

Currently unavailable
