20666 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) Engine Assembly Parts Diagram

Walk-Behind Mower

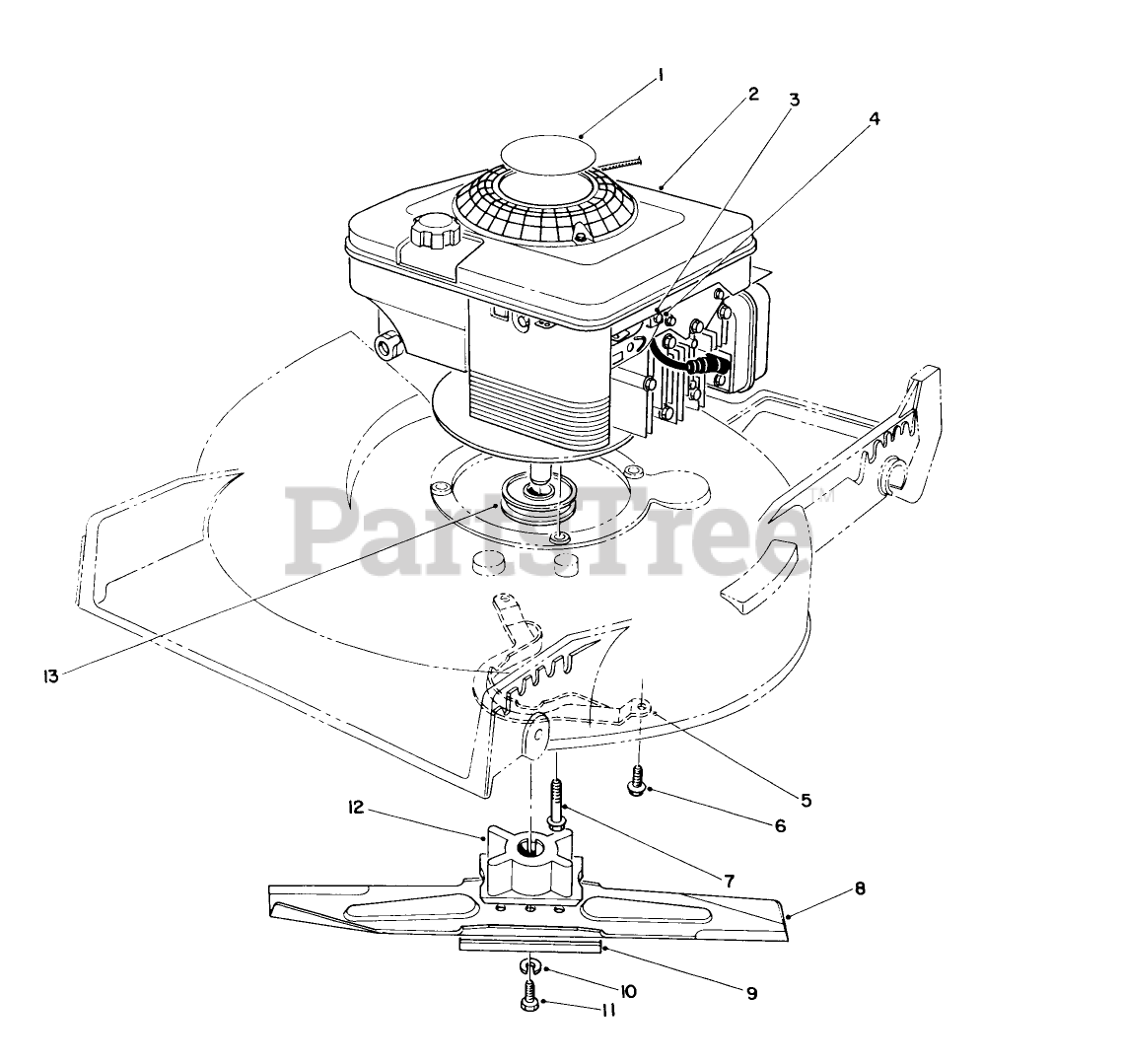

Engine Assembly Parts Diagram

  • Title

1

Toro 75-9400

DISCONTINUED

$

$

Not available

2

Engine

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$

$

Not available

4

Toro 2210-313

See Supercession: 86-7990
(Superseded to 86-7990)

$3.99

$

Usually ships in 3-6 days

0

5

Toro 40-5720

DISCONTINUED

$

$

Not available

6

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

8

Toro 75-9420

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 4 left!

0

9

Toro 46-2980

See Supercession: 80-0510-03
(Superseded to 80-0510-03)

$18.99

$

In Stock, Qty 5

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 26-0670

SCREW-BLADE

$

$

Not available

12

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0

13

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available
