20671 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

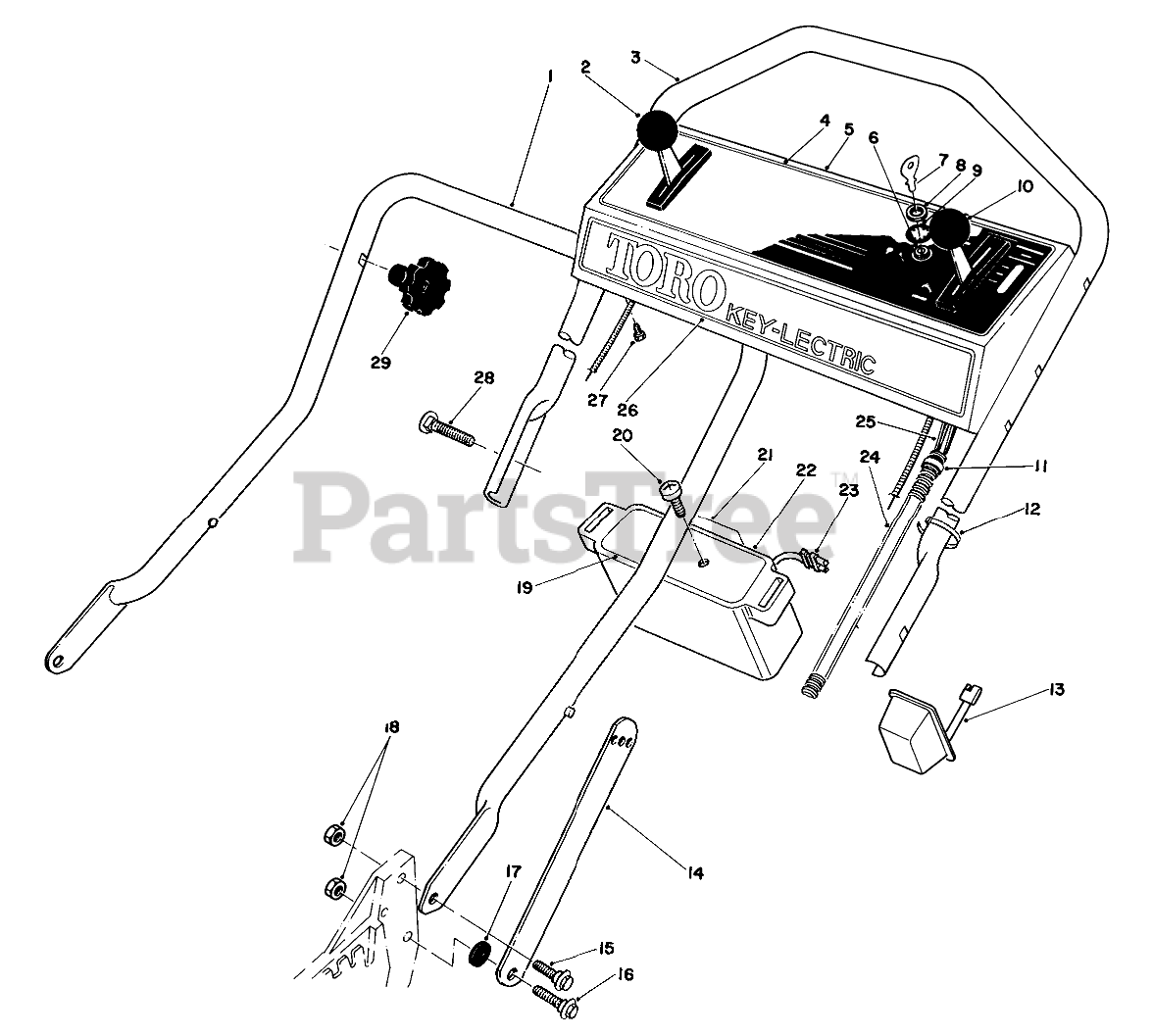

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$80.99

$

Usually ships in 3-6 days

0

3

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

4

Toro 46-7420

Decal-Instruction Panel

$

$

Not available

5

Toro 11-4039

Control Panel (Incl Ref. #4)
(Superseded to 13-4019)

$

$

Not available

6

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 15

0

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

8

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

9

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

10

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

11

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

13

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

14

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

15

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

16

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

17

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

18

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

19

Toro 39-0630

BATTERY COVER

$

$

Not available

20

Toro 32104-129

Screw

$

$

Not available

21

Toro 36-5380

Decal

$

$

Not available

22

Toro 39-0640

Battery Case

$

$

Not available

23

Toro 48-2070

LEAD WIRE ASM

$

$

Not available

24

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

25

Toro 46-5810

WIRE HARNESS

$164.99

$

Usually ships in 3-6 days

0

26

Toro 46-8460

Decal-Toro

$

$

Not available

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

29

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

Toro 38-4180

Battery Pack (Incl. 19-23)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
