20673 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

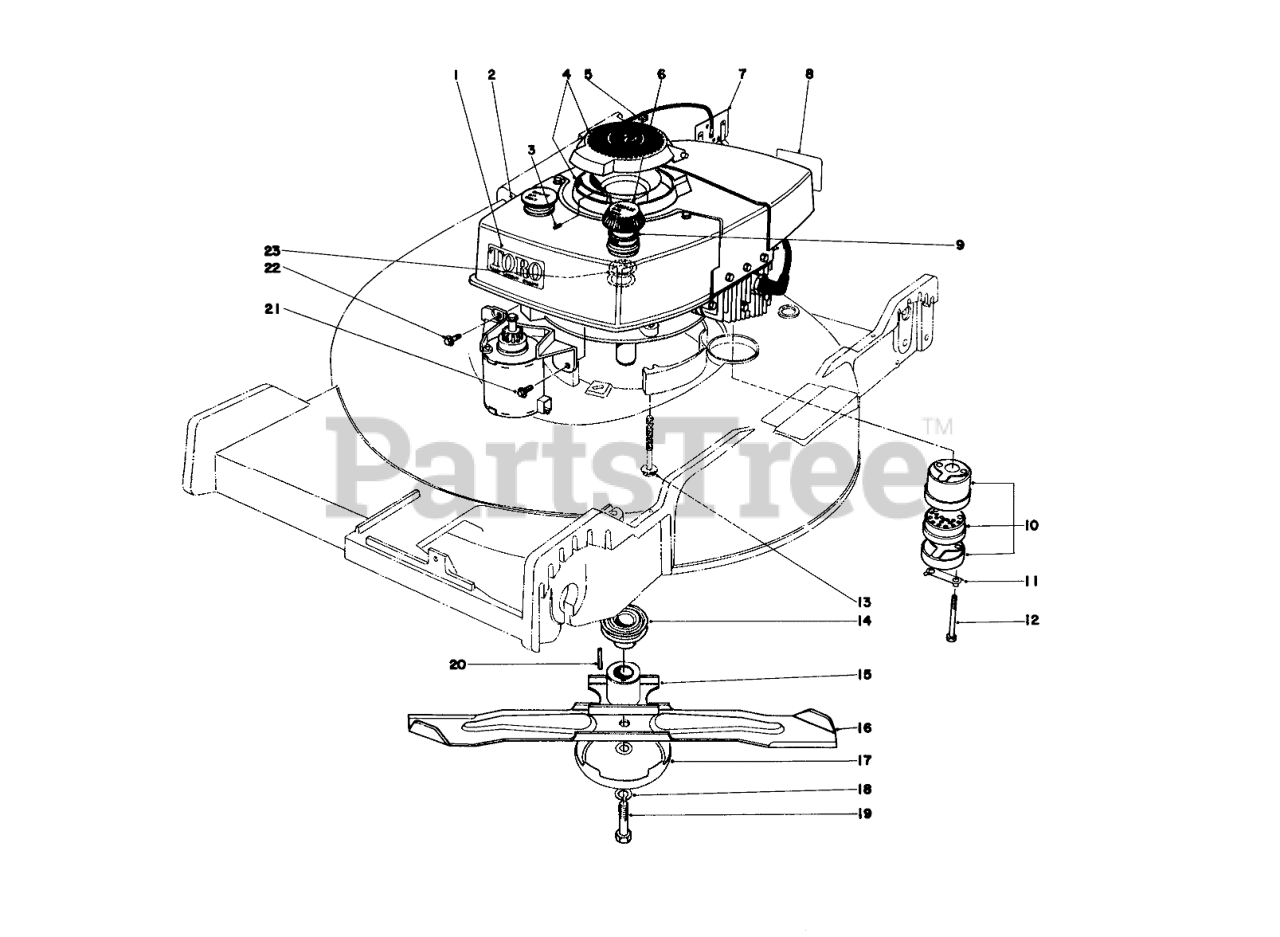

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221-517

Engine

$

$

Currently unavailable

3

Toro 32121-90

SPRING PIN

$2.49

$

Usually ships in 3-6 days

0

4

Toro 26-0850

Cover
(Superseded to 38-4720)

$

$

Not available

5

Toro 25-1570

WIRE CLIP

$

$

Not available

6

Toro 20-2860

Gas Cap Assembly (Incl. Ref. #9 & 23)
(Superseded to 42-0682)

$

$

Not available

7

Toro 24-9770

SWITCH & TERM BLK CVR

$

$

Not available

8

Toro 20-2710

Decal Maintenance

$

$

Not available

9

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

10

Toro 5-4769

Muffler Assembly (Incl. Ref. #11 & 12)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

14

Toro 21-5580

DRIVER PULLEY

$

$

Not available

15

Toro 26-0770

Blade Retainer
(Superseded to 46-3490)

$96.99

$

In Stock, only 1 left!

0

16

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 6

0

17

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

19

Toro 26-0670

SCREW-BLADE

$

$

Not available

20

Toro 21-5060

Key Square
(Superseded to 27-6300)

$6.49

$

In Stock, only 1 left!

0

21

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

22

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

23

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available
