20675 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Gear Case Assembly Parts Diagram

Walk-Behind Mower

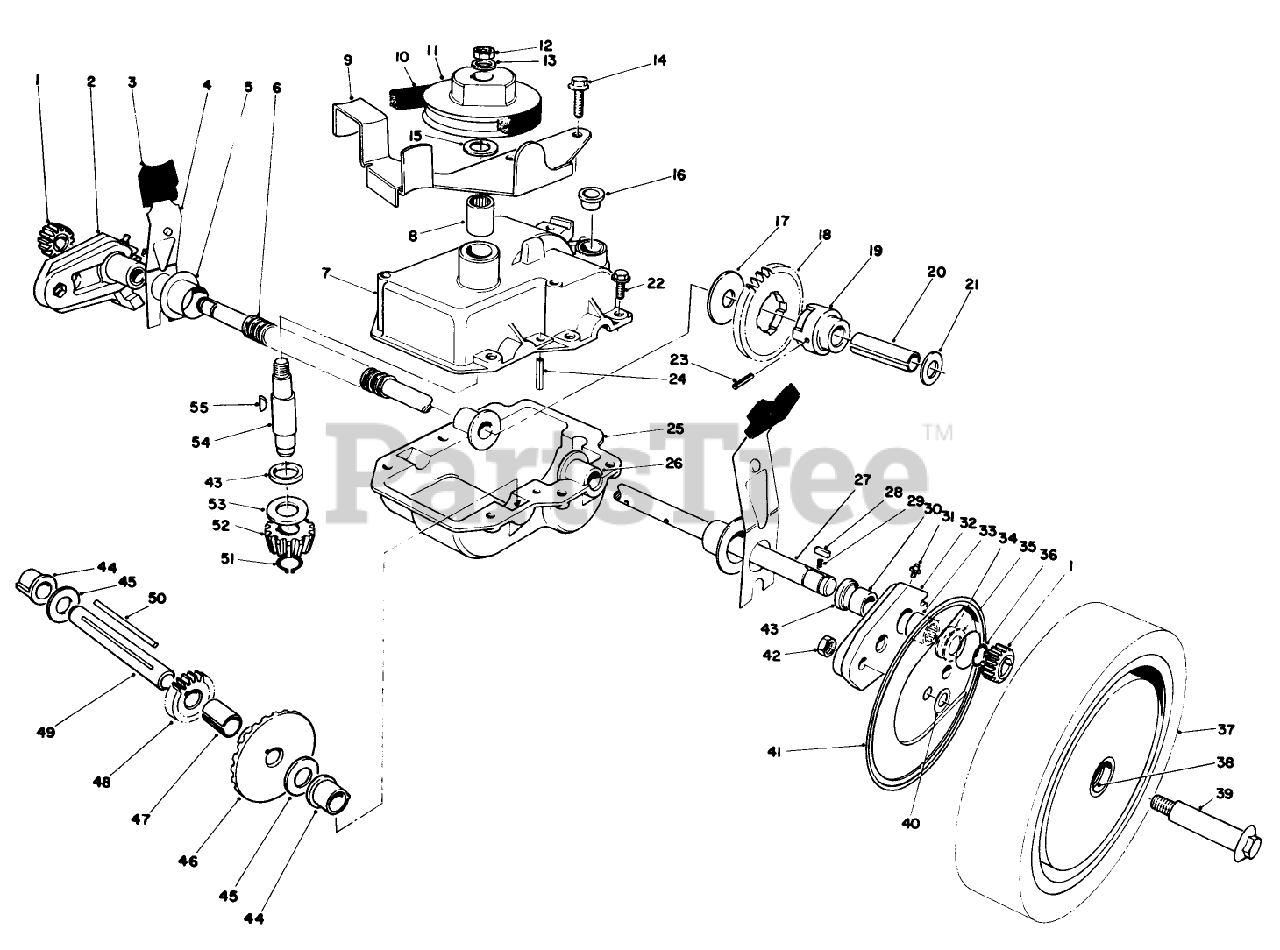

Gear Case Assembly Parts Diagram

  • Title

1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 11

0

2

Toro 49-7720

PIVOT ARM ASM RH

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

4

Toro 44-1010

SPRING ARM ASM SP

$47.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$11.99

$

Usually ships in 3-6 days

0

7

Toro 39-7282

DISC PRC4

$

$

Not available

8

Toro 47-6720

BEARING

$43.99

$

Usually ships in 3-6 days

0

9

Toro 49-8460

DISCONTINUED

$

$

Not available

10

Toro 36-8070

V-BELT

$15.99

$

In Stock, only 1 left!

0

11

Toro 39-6740

PULLEY

$56.99

$

In Stock, only 2 left!

0

12

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

13

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

14

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

15

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

16

Toro 12-0510

DISCONTINUED

$

$

Not available

17

Toro 29-9690

WASHER

$

$

Not available

18

Toro 29-9271

GEAR-42T

$100.99

$

Usually ships in 3-6 days

0

19

Toro 49-4280

DRIVE ADAPTER

$

$

Not available

20

Toro 36-9120

DISCONTINUED

$

$

Not available

21

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 11

0

22

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

23

Toro 32121-109

DISCONTINUED

$

$

Not available

24

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$2.49

$

Usually ships in 3-6 days

0

25

Toro 29-9410

DISCONTINUED

$

$

Not available

26

Toro 47-5220

DISCONTINUE

$

$

Not available

27

Toro 44-0850

See Supercession: 12-6659
(Superseded to 12-6659)

$311.99

$

Usually ships in 3-6 days

0

28

Toro 39-9680

KEY RECTANGULAR

$5.49

$

In Stock, Qty 20+

0

29

Toro 39-9650

SPRING-COMPRESSION

$3.99

$

In Stock, Qty 20+

0

30

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

31

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 11

0

32

Toro 49-7710

DISCONTINUED

$

$

Not available

33

Toro 48-2060

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 7

0

34

Toro 49-7690

DISCONTINUED

$

$

Not available

35

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 20+

0

36

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

37

Toro 11-1419

WHL/GEAR/TIRE PKG

$

$

Not available

38

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

39

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 1 left!

0

40

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

41

Toro 36-5630

See Supercession: 36-5630-03
(Superseded to 36-5630-03)

$

$

Not available

42

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

43

Toro 47-7260

SEAL

$10.99

$

In Stock, only 2 left!

0

44

Toro 47-5210

BUSHING

$

$

Not available

45

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

46

Toro 39-6670

DISCONTINUED

$

$

Not available

47

Toro 36-9130

DISCONTINUED

$

$

Not available

48

Toro 46-3550

GEAR-14T

$24.99

$

Usually ships in 3-6 days

0

49

Toro 46-9470

DISCONTINUED

$

$

Not available

50

Toro 39-7841

See Supercession: 39-7843
(Superseded to 39-7843)

$

$

Not available

51

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

52

Toro 39-6660

PINION-BEVEL

$44.99

$

In Stock, only 1 left!

0

53

Toro 47-2910

WASHER-THRUST

$15.99

$

Usually ships in 3-6 days

0

54

Toro 39-6690

DISCONTINUED

$

$

Not available

55

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0
