20675 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Housing Assembly Parts Diagram

Walk-Behind Mower

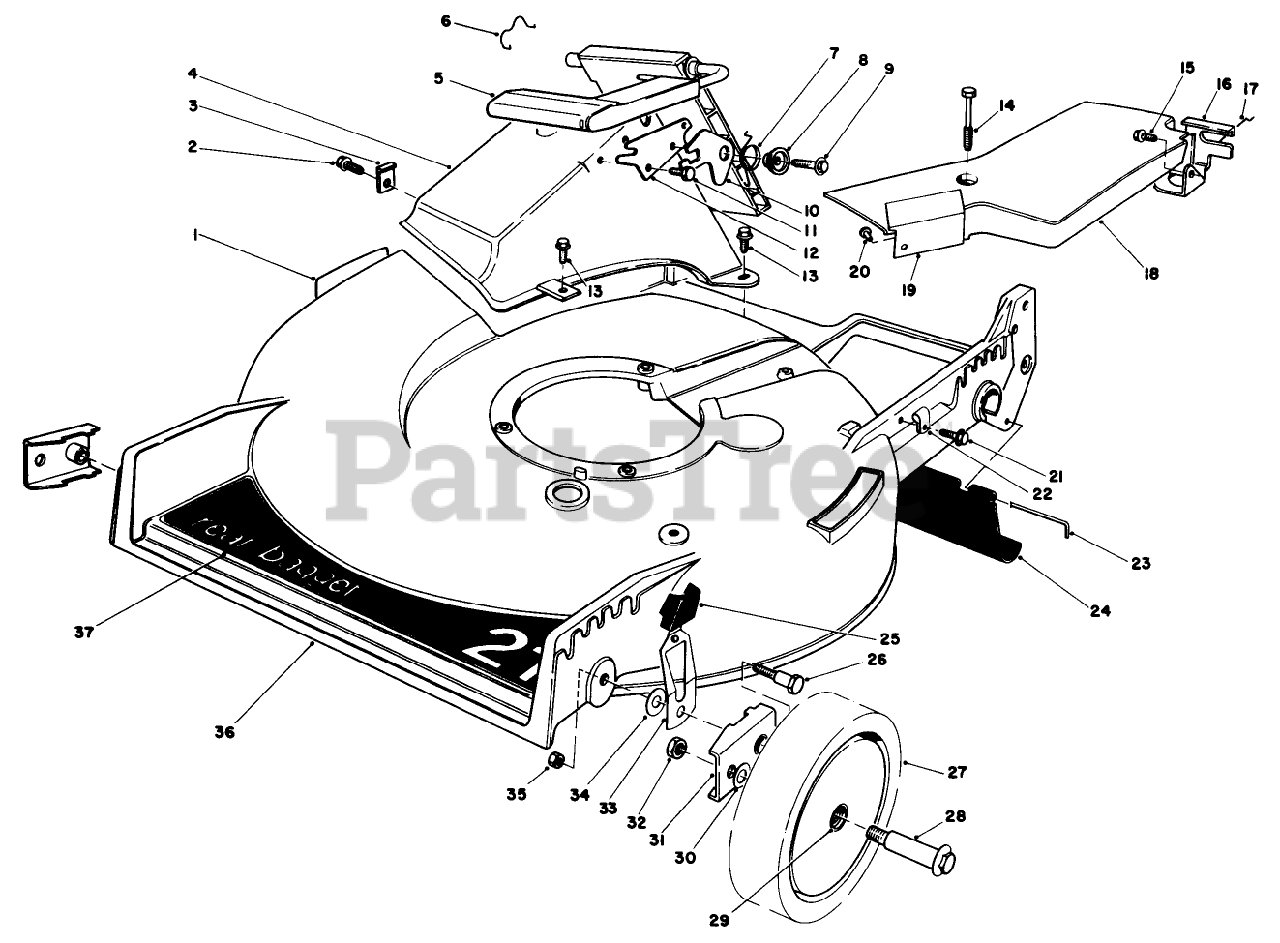

Housing Assembly Parts Diagram

  • Title

1

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

2

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

3

Toro 47-6540

TUNNEL CLIP

$

$

Not available

4

Toro 46-3500

See Supercession: 82-9151
(Superseded to 82-9151)

$

$

Not available

5

Toro 51-0200

See Supercession: 77-0200
(Superseded to 77-0200)

$

$

Not available

6

Toro 47-5840

DOOR RET SPRING

$

$

Not available

7

Toro 33-4860

TORSION SPRING

$80.99

$

Usually ships in 3-6 days

0

8

Toro 43-4840

DOOR SPACER

$

$

Not available

9

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

10

Toro 42-4010

SAFETY LATCH

$

$

Not available

11

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

12

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

13

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

14

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, only 2 left!

0

15

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 19

0

16

Toro 46-5870

See Supercession: 82-5680-03
(Superseded to 82-5680-03)

$

$

Not available

17

Toro 46-7030

RETAINER-CABLE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 38-8742

See Supercession: 52-7404
(Superseded to 52-7404)

$

$

Not available

19

Toro 38-8730

DISCONTINUED

$

$

Not available

20

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

21

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

22

Toro 2412-83

CLAMP-CABLE

$

$

Not available

23

Toro 33-3203

DISCONTINUED
(Superseded to 47-4682)

$

$

Not available

24

Toro 29-9180

SHIELD - TRAILING

$77.99

$

Usually ships in 3-6 days

0

25

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

26

Toro 44-5270

PIVOT SCREW

$9.49

$

In Stock, Qty 5

0

27

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

28

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 1 left!

0

29

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

30

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

31

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

33

Toro 44-0990

See Supercession: 99-5260
(Superseded to 99-5260)

$

$

Not available

34

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 8

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 11-4089

21 SP RB HSG/DECAL

$

$

Not available

37

Toro 44-0450

DISCONTINUED

$

$

Not available
