20676 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

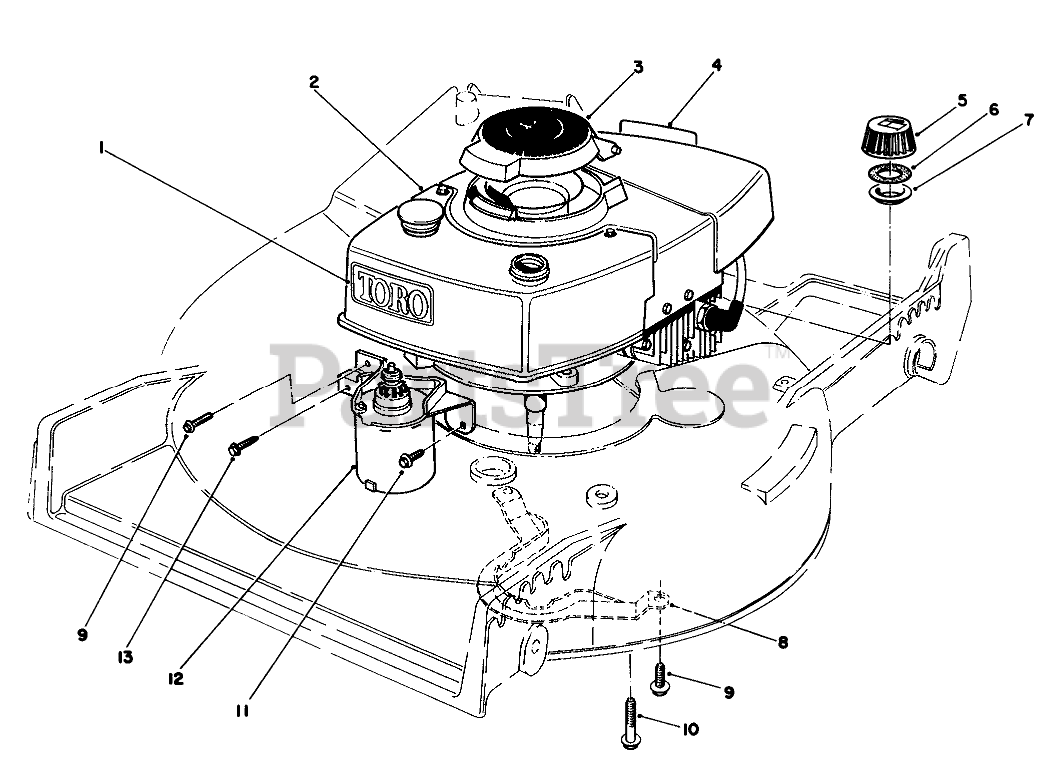

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 221-763

Engine

$

$

Currently unavailable

3

Toro 38-4720

COVER ASM

$

$

Not available

4

Toro 37-1580

Decal-Maintenan

$

$

Not available

5

Toro 42-0682

Gas Cap (Incl. Ref. #6 & 7)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 40-5720

BELT GUIDE

$

$

Not available

9

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

10

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

11

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

12

Toro 49-4210

STARTER MOTOR ASM

$

$

Not available

13

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

Toro 33-2930

Rope-Starter

Note: Not illustrated

$

$

Not available
