20690 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

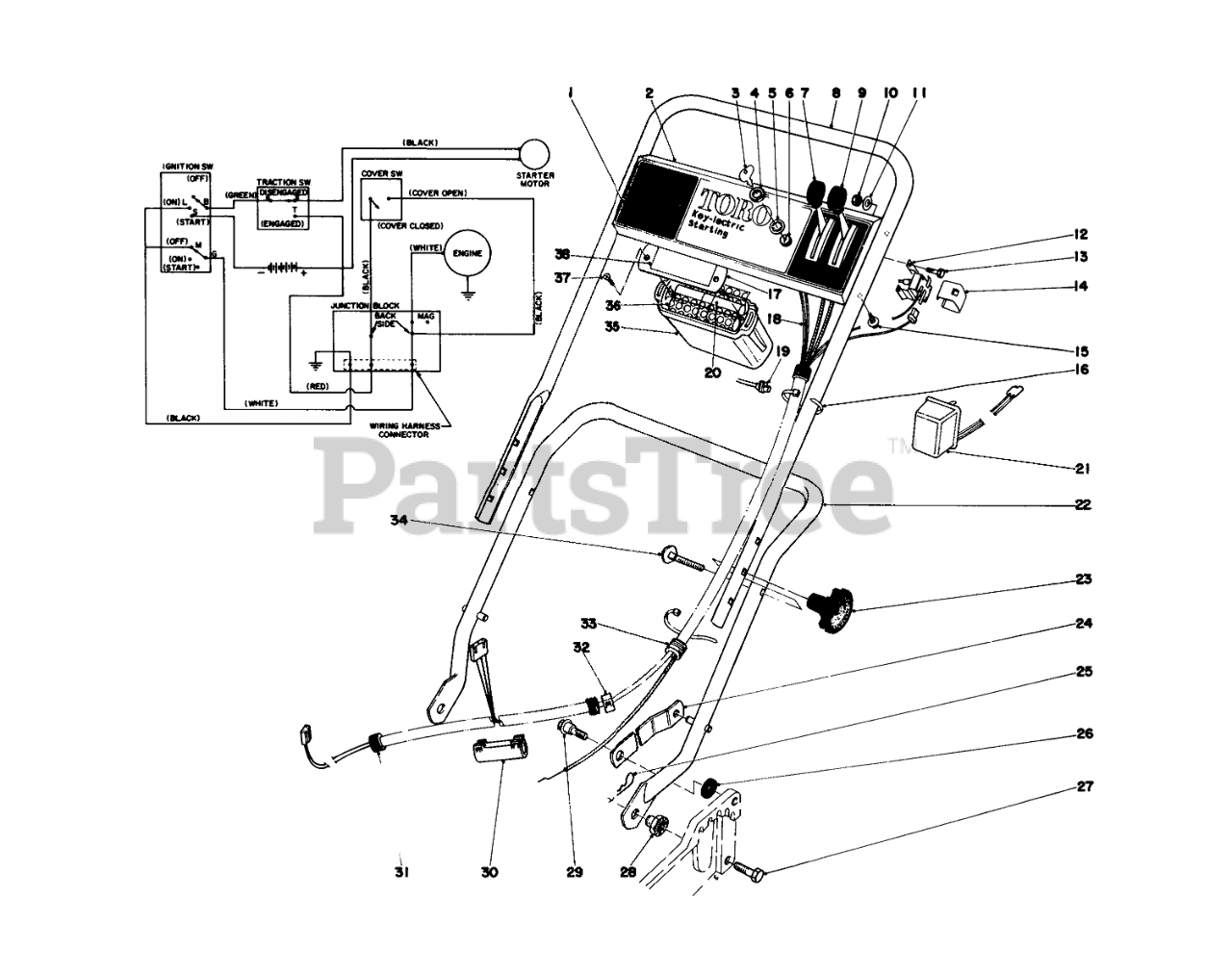

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 36-2750

Decal Control Plate
Usually ships same day

Currently unavailable

$

$

2

Toro Part# 36-2840

Control Plate
Usually ships same day

Not available

$

$

3

Toro Part# 218-412

Key
(Superseded to 62-7770)
Usually ships in 1 day

$

$3.68

0

Usually ships same day

Currently unavailable

$

$

5

Toro Part# 3254-5

WASHER-TOOTH, INTERNAL
Usually ships in 1 day

$

$0.49

0

6

Toro Part# 23-0660

SWITCH-STARTER
Usually ships in 1 day

$

$22.35

0

7

Toro Part# 36-3271

Throttle Control
(Superseded to 46-6010)
Usually ships in 5 to 8 days

$

$49.15

0

8

Toro Part# 334290

Upper Handle
Usually ships same day

Currently unavailable

$

$

9

Toro Part# 33-2563

Throttle Control
(Superseded to 46-6040)
Usually ships in 5 to 8 days

$

$59.90

0

10
Usually ships in 1 day

$

$0.43

0

11

Toro Part# 3256-21

WASHER-FLAT
Usually ships in 5 to 8 days

$

$0.24

0

12

Toro Part# 249760

Safety Switch
Usually ships same day

Currently unavailable

$

$

13
Usually ships same day

Not available

$

$

14

Toro Part# 25-1590

Cover Switch
Usually ships same day

Not available

$

$

15

Toro Part# 32104-76

SCREW-HWHTF
Usually ships in 1 day

$

$2.23

0

16
Usually ships in 1 day

$

$0.77

0

Usually ships same day

Not available

$

$

18

Toro Part# 25-0100

Wiring Harness
Usually ships same day

Not available

$

$

19

Toro Part# 11-3790

Plug & Wire
(Superseded to 49-8141)
Usually ships same day

Not available

$

$

20

Toro Part# 24-7750

Battery Pack Assembly (Incl. Ref. #17, 19-20 & 35-38)
Usually ships same day

Not available

$

$

21

Toro Part# 6-9780

Charger
(Superseded to 131-0848)
Usually ships in 1 day

$

$63.72

0

22

Toro Part# 33-4340

LOWER HANDLE ASM
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$13.41

0

24

Toro Part# 26-0760

HANDLE LATCH
Usually ships same day

Not available

$

$

25

Toro Part# 3290-255

PIN-COTTER, HAIR
Usually ships in 5 to 8 days

$

$7.02

0

26
Usually ships in 1 day

$

$3.30

0

27

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

28

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

29

Toro Part# 5-2490

SCREW-SHOULDER
Usually ships in 5 to 8 days

$

$7.68

0

30

Toro Part# 241249

Breakout Fitting
Usually ships same day

Not available

$

$

31

Toro Part# 25-1180

WIRING HARNESS COVER
Usually ships same day

Not available

$

$

32

Toro Part# 2412-48

RING FITTING
Usually ships same day

Not available

$

$

33

Toro Part# 25-1190

Upper Wiring Harness
Usually ships same day

Not available

$

$

34

Toro Part# 6-6330

HANDLE SCREW
Usually ships same day

Not available

$

$

35

Toro Part# 6-9750

Container Pack
Usually ships same day

Not available

$

$

36
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

38

Toro Part# 254020

Decal-Battery
Usually ships same day

Currently unavailable

$

$

Toro Part# 33-2930

Rope-Starter

Note: Not illustrated

Usually ships same day

Not available

$

$
